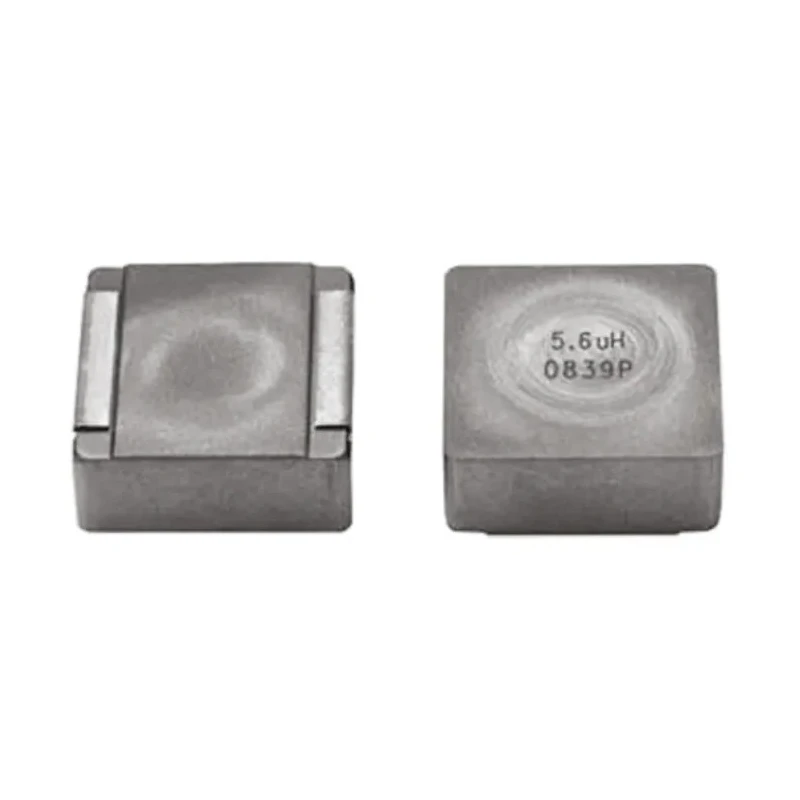

Vishay Shielded Surface Mount Inductor with Metal Composite Core, 5.6 μH ±20 %, 21 A Idc, Package 6767 IHLP6767GZER5R6M01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 7mm |
| Length | 17.15mm |
| Model | IHLP6767GZER5R6M01 |
| Depth | 17.15mm |
| Packaging | Reel |
| Series | IHLP-6767GZ-01 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 5.6μH |
| Standards/Approvals | RoHS |
| Package/Case | 6767 |
| Maximum DC Current | 21A |
| Maximum DC Resistance | 7.05mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 2MHz |
| Inductor Construction | Shielded |
Key Features
- This inductor features a metal composite core and shielded wire wound construction.
- It supports a maximum DC current of 21 A and a maximum self-resonant frequency of 2 MHz.
- Operating temperature range spans from -55°C to 125°C.
- Designed for surface mount applications with a 6767 package size measuring 17.15 mm by 17.15 mm and 7 mm height.
- Offers low DC resistance of 7.05 mΩ for efficient power handling.
- Compliant with RoHS standards and suitable for automotive and industrial electronic devices.
- Ideal for high current power supply circuits, DC/DC converters, and battery-powered applications.
Product Description
Vishay IHLP6767GZER5R6M01 is a high current, shielded surface mount inductor designed with a metal composite core for superior performance and reliability in demanding electronic applications.
With an inductance of 5.6 μH and inductance tolerance of ±20 %, this component handles a maximum DC current of 21 A, making it suitable for high transient current spikes without saturation.
The package size 6767 measures 17.15 mm length and width with a 7 mm height, making it a low-profile solution for densely packed printed circuit boards. This inductor features ultra-low buzz noise and low DC resistance of 7.05 mΩ, ensuring efficient power supply and minimal energy loss during operation.
Operating temperature ranges from -55°C to 125°C, accommodating a wide variety of industrial and automotive environments. This Vishay series complies with RoHS directives, offering a moulded, magnetically shielded construction to reduce electromagnetic interference.
Applications include power management in PDA, notebooks, desktop, server devices, high current POL converters, DC/DC converters in distributed power systems, and field programmable gate array (FPGA) circuits.
Metal composite core for enhanced magnetic performance. Shielded wire wound construction to minimize EMI. Low DC resistance for high efficiency. Moulded design providing mechanical and environmental robustness. Wide operational temperature range for versatile industrial use.
Compliant with RoHS standards for environmental safety. Suitable for advanced power supply and converter applications. This Vishay IHLP6767GZER5R6M01 Surface Mount Inductor combines durability and electrical efficiency, making it an essential component for electronics manufacturing and design.
Explore additional Vishay electronic components and power connectors on EnvMart to support your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 5.6 μH with an inductance tolerance of ±20%.
It supports a maximum DC current of 21 A, making it suitable for high transient current applications.
This inductor comes in a 6767 package size, measuring 17.15 mm in length and width, with a height of 7 mm.
The operating temperature range spans from -55°C to 125°C, allowing it to function in various industrial environments.
The maximum self-resonant frequency of this inductor is 2 MHz.
It features a low DC resistance of 7.05 mΩ, which contributes to efficient power handling.
The inductor is constructed with a metal composite core, which enhances its performance.
Yes, it is compliant with RoHS standards, ensuring it meets environmental safety requirements.
This model features a surface mount termination style, suitable for various PCB applications.
It is suitable for high current power supply circuits, DC/DC converters, and battery-powered applications.
The inductor is packaged in a reel, which is common for surface mount components.
