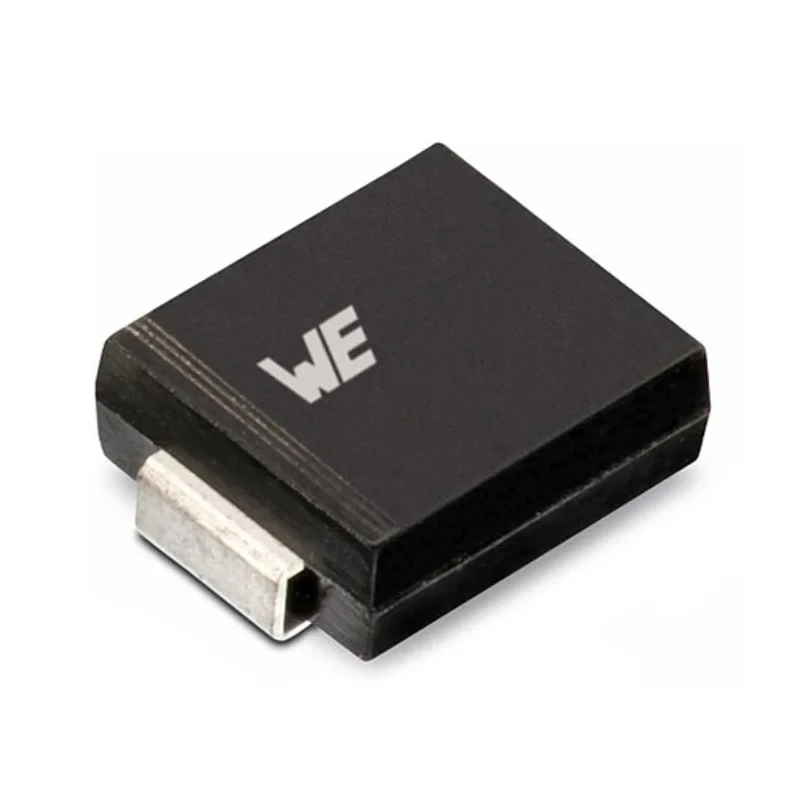

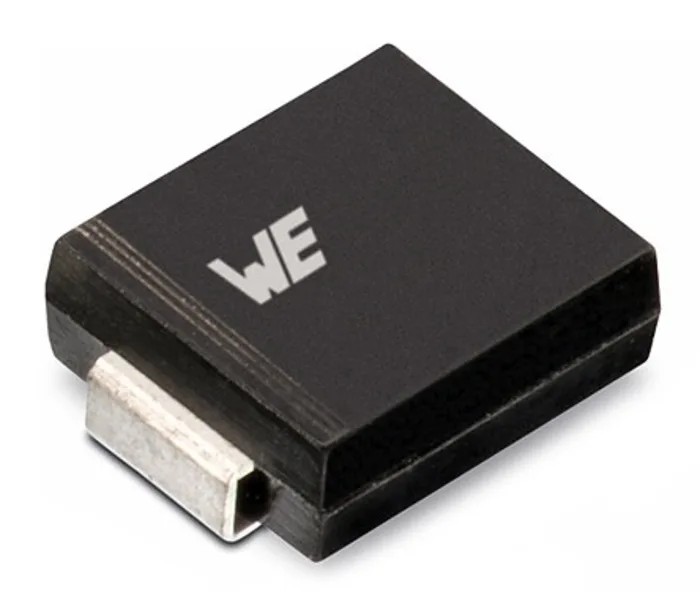

Wurth Elektronik Bi-Directional TVS Diode, 3 kW Peak Pulse Power, Surface Mount DO-214 Package, 2 Pin, 70.2 V 824551601
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 2.34mm |
| Length | 6.86mm |
| Width | 5.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 96.8V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 70.2V |
| Peak Pulse Power Dissipation Pppm | 3kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 31A |
| Maximum Reverse Leakage Current | 2μA |
Key Features
- Single diode configuration providing bi-directional voltage suppression.
- Compact surface mount DO-214 package with 2 pins.
- Minimum breakdown voltage of 70.2 V and clamping voltage of 96.8 V ensures effective transient protection.
- Handles peak pulse power dissipation of 3 kW and maximum pulse current of 31 A.
- Operates reliably between temperatures of -65°C to 150°C for industrial applications.
- Low profile package measuring 6.86 mm length, 5.9 mm width, and 2.34 mm height.
- Extremely low maximum reverse leakage current of 2 μA minimizing power loss.
- Glass passivated junction for fast response time and improved reliability.
Product Description
Wurth Elektronik 824551601 Bi-Directional TVS Diode delivers robust transient voltage suppression with a peak pulse power rating of 3 kW. This single-element diode is configured for bi-directional operation and comes in a compact surface mount DO-214 package with two pins, making it ideal for space-sensitive electronic and industrial circuit board applications.
It has a minimum breakdown voltage of 70.2 volts and a clamping voltage of 96.8 volts, providing fast and reliable protection against sudden voltage spikes and transients. The diode can safely handle a maximum peak pulse current of 31 amperes, ensuring durability under demanding surge conditions.
Operating temperature ranges from -65°C to 150°C, contributing to its suitability for harsh environments such as automotive electronics, power supplies, and industrial control systems. Its low profile with dimensions of 6.86 mm length, 5.9 mm width, and 2.34 mm height enables integration into compact assemblies.
The diode features an ultra-low maximum reverse leakage current of 2 microamperes which reduces power dissipation and enhances energy efficiency. The glass passivated junction design provides a fast response time for transient voltage suppression.
This Wurth Elektronik diode is specifically engineered for protecting sensitive semiconductor devices from transient overvoltages induced by lightning, load switching, or electrostatic discharge.
Typical industrial applications include automotive electronics protection, power supply surge suppression, industrial control and automation systems, and telecommunications equipment. It is manufactured in China and complies with industry standards though has no specific automotive or other certifications.
Single-element diode with bi-directional protection functionality. Surface mount DO-214 package with 2 pins facilitates PCB assembly. Minimum breakdown voltage 70.2 V, clamping voltage 96.8 V. Peak pulse power rating of 3 kW and max pulse current of 31 A.
Operating temperature range -65°C to 150°C for environmental versatility. Low reverse leakage current minimizes energy loss. Compact size: 6.86 mm x 5.9 mm x 2.34 mm. Explore the broad range of Semiconductor and TVS Diode products from Wurth Elektronik at EnvMart for your industrial and electronic protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diode has a peak pulse power dissipation rating of 3 kW.
The minimum breakdown voltage is 70.2 V.
The clamping voltage is 96.8 V.
It can handle a maximum peak pulse current of 31 A.
The dimensions of the package are 6.86 mm in length, 5.9 mm in width, and 2.34 mm in height.
The operating temperature range is from -65°C to 150°C.
This diode uses a surface mount type.
It has 2 pins.
The maximum reverse leakage current is 2 μA.
It is configured as a single diode.
This diode is suitable for protecting sensitive semiconductor devices in automotive electronics, power supplies, and industrial control systems.
This diode is manufactured in China.
