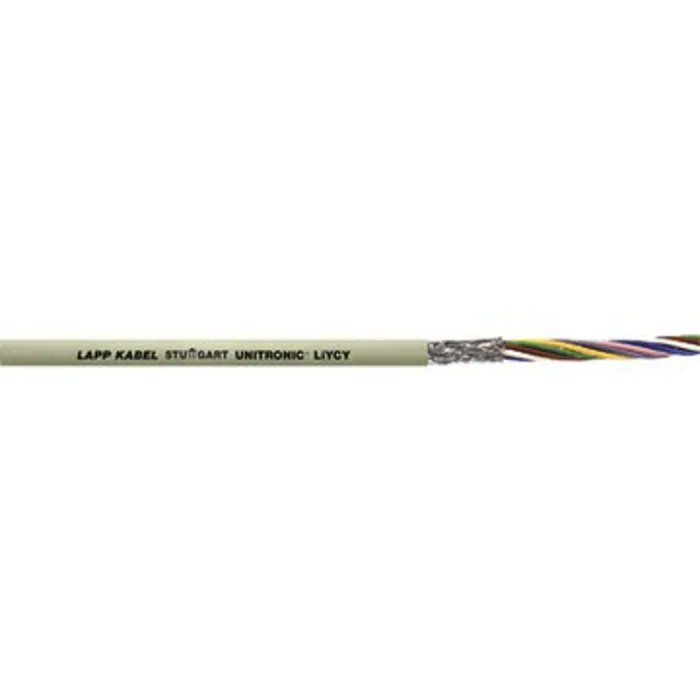

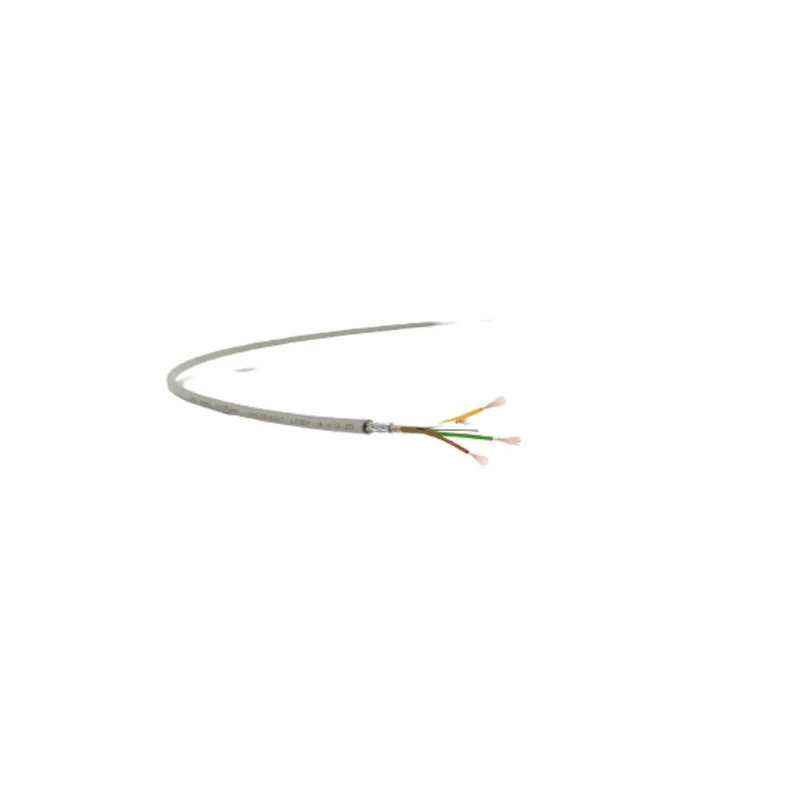

Lapp Data Cable UNITRONIC LiYCY Series 8 Cores 0.25 mm² 100 m PVC Grey Sheath 500V 0034408
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | Lapp |
| CROSS SECTIONAL AREA | 0.25 mm² |
| Model | 0034408 |
| Cable Length | 100m |
| Series | UNITRONIC LiYCY |
| Outside diameter | 7.1mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 8 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, RoHS |
| Jacket Colour | Grey |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 14 |
| Core Strands | 14 x 0.14mm |
| Size of Strands | 0.14mm |
Key Features
- This cable includes 8 stranded bare copper cores of 0.25 mm² cross-sectional area.
- It features a grey polyvinyl chloride sheath offering flame retardant properties according to IEC 60332-1-2 standards.
- The cable length is 100 meters and can be used whole or cut to size.
- Operating temperature ranges from -40°C to 80°C, suitable for harsh environmental conditions.
- The screened design with a tinned copper braid shield reduces electromagnetic interference for noise-free signals.
- Its compact outer diameter of 7.1 mm fits installations with limited space.
- Low conductor-to-conductor capacitance of 120 nF/km ensures high signal integrity.
Product Description
Lapp 0034408 UNITRONIC LiYCY Series Data Cable is a high-quality screened cable with 8 cores of 0.25 mm² cross-sectional area and a grey PVC sheath. Rated for 500V, this cable is designed for reliable data signal transmission in industrial, commercial, and automation environments.
This cable is constructed with eight stranded bare copper conductors, each with 14 strands of 0.14 mm diameter, providing excellent electrical conductivity and flexibility. The flame retardant polyvinyl chloride sheath meets the IEC 60332-1-2 and EN 60332-1-2 standards ensuring enhanced fire safety.
The cable length of 100 meters offers versatility for customized installation lengths. The compact 7.1 mm outside diameter and lightweight design (73 kg/km) enables easy handling and suitability for use in confined spaces.
Screened with a tinned copper braid, the cable provides excellent resistance to electromagnetic interference and crosstalk, securing noiseless and stable data signal transmission. It exhibits a minimum operating temperature of -40°C and maximum of 80°C, assuring performance under demanding environmental conditions.
Typical applications include serial communication devices, measurement and instrumentation equipment, robotics, and automation systems where high integrity and shielded data transmission cables are required.
Stranded bare copper conductors for superior conductivity and flexibility. Grey PVC flame retardant sheath according to IEC 60332-1-2. Screened cable with tinned copper braid shield for EMI protection. Compact 7.1 mm diameter suitable for limited space installations.
Voltage rated at 500V for industrial usage. Operating temperature range from -40°C to 80°C. Low capacitance of 120 nF/km ensures signal integrity. Length of 100 meters and 8 cores for multi-signal transmission.
Originating from Germany, this Lapp UNITRONIC LiYCY series cable provides a robust solution for demanding industrial environments. Browse EnvMart’s extensive selection of Lapp wires and cables for compatible connectors and complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for 500V, making it suitable for industrial applications.
This model has a length of 100 meters, allowing for versatile installation options.
It operates within a temperature range of -40°C to 80°C, suitable for harsh environmental conditions.
The cable features 8 cores, each with a cross-sectional area of 0.25 mm².
It is a screened cable with a tinned copper braid shield, which reduces electromagnetic interference for stable signal transmission.
The outside diameter of the cable is 7.1 mm, making it suitable for installations with limited space.
The jacket is made from grey polyvinyl chloride (PVC), which offers flame retardant properties according to IEC 60332-1-2 standards.
The conductors are made of stranded bare copper, providing excellent electrical conductivity and flexibility.
This cable complies with CE and RoHS standards, ensuring it meets safety and environmental regulations.
Each core consists of 14 strands, with each strand measuring 0.14 mm in diameter.
Typical applications include serial communication devices, measurement and instrumentation equipment, robotics, and automation systems.
This cable originates from Germany, reflecting its quality and engineering standards.
