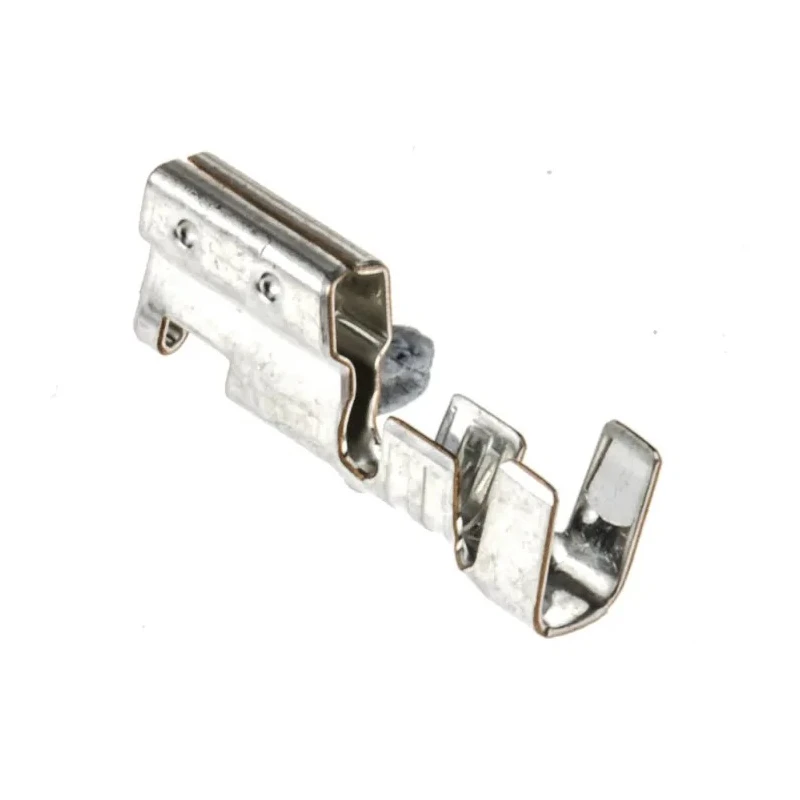

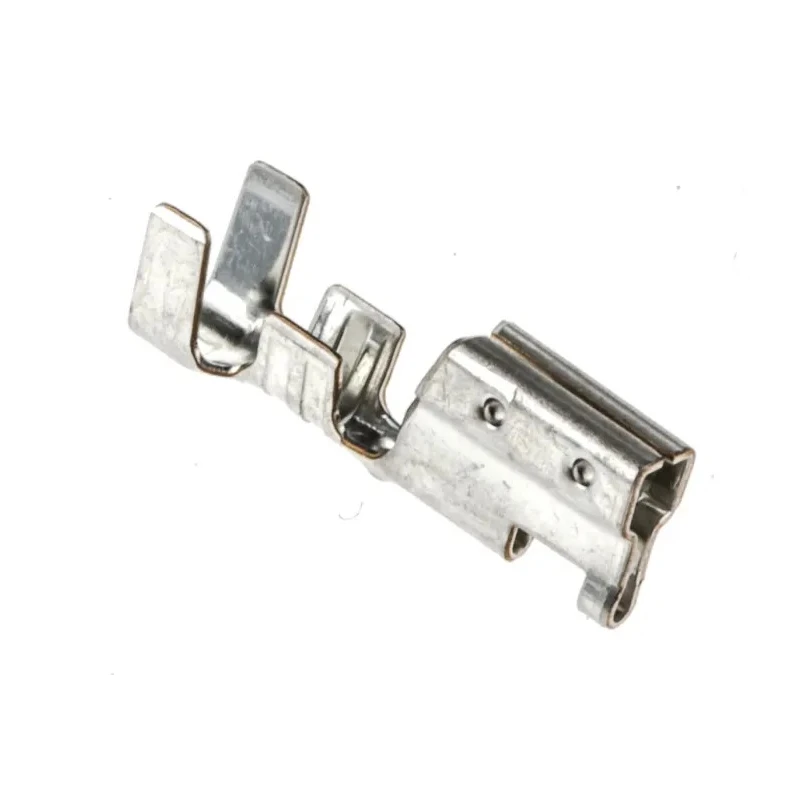

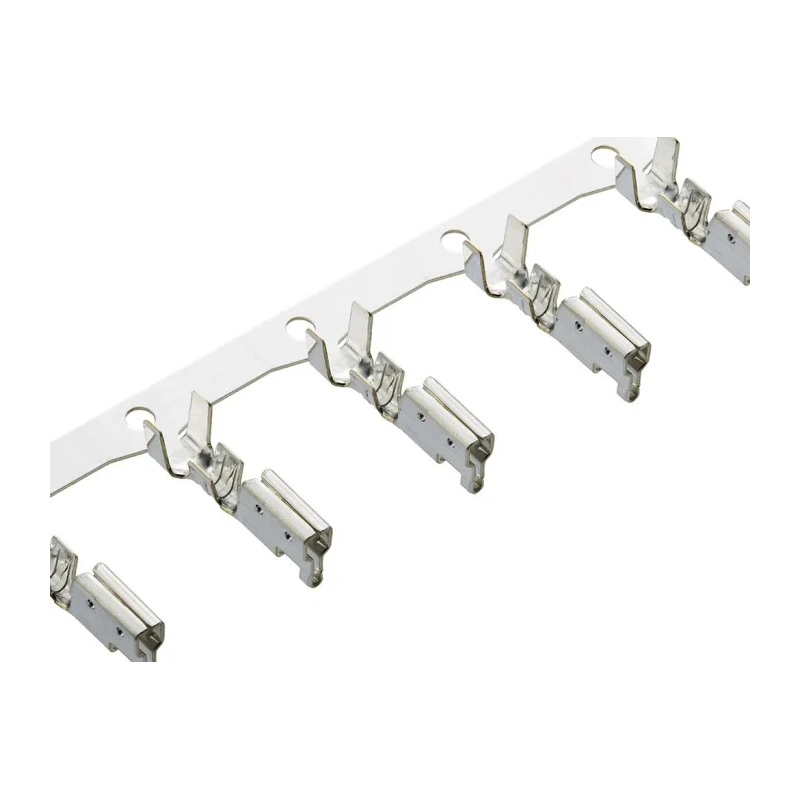

Molex 5194 Series Female Crimp Terminal, 24 AWG Min Crimp, 18 AWG Max, Tin Plated Phosphor Bronze, 7A Current 39-00-0022

Free Delivery in India | Lowest Global Shipping Charges

Molex 5194 Series Female Crimp Terminal, 24 AWG Min Crimp, 18 AWG Max, Tin Plated Phosphor Bronze, 7A Current 39-00-0022

Name: Molex 5194 Series Female Crimp Terminal, 24 AWG Min Crimp, 18 AWG Max, Tin Plated Phosphor Bronze, 7A Current 39-00-0022
Brand: Molex
SKU: 207059
Price: 0.2 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	Japan
Brand	Molex
Current	7A
Gender	Female
Contact Material	Phosphor Bronze
Series	5194
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-25°C
For Use With	SPOX Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.8mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	10mΩ

Key Features

Constructed from phosphor bronze for excellent conductivity and spring performance.
Tin plating ensures corrosion resistance and durability in diverse environments.
Designed for crimp termination in SPOX connector housings for secure and efficient assembly.
Operates safely between -25°C and 105°C, suitable for industrial and networking applications.
Spring box style design provides multiple contact points protecting the mating interface.
Compact size supports wire cross sections from 0.2 mm² to 0.8 mm².
Maximum contact resistance of 10 milliohms ensures minimal electrical loss.
Manufactured in Japan to high quality standards without specific approvals listed.

Product Description

Molex 39-00-0022 Female Crimp Terminal is a high-quality crimp contact designed for wire sizes from 24 AWG minimum to 18 AWG maximum, rated for 7 amperes current. It features a tin-plated phosphor bronze contact material providing durability and excellent electrical conductivity.

This component is engineered with a spring box style, creating multiple points of contact to safeguard the mating interface and prevent wire damage such as fish-hooking during installation and handling. The terminal supports crimp-type termination compatible with Molex SPOX connector housings.

Operating within a temperature range of -25°C to 105°C, this terminal delivers reliable performance in various industrial applications including communications and networking equipment where secure and stable electrical connections are critical.

The maximum contact resistance is low at 10 milliohms, assuring minimal loss and dependable signal integrity. This product is manufactured in Japan, reflecting stringent quality measures though specific certifications or approvals are not declared.

Constructed from phosphor bronze contact material to ensure mechanical resilience and conductivity. Tin plating improves corrosion resistance and long-term reliability of connections. Compatible with Molex SPOX connector housing for seamless integration in electronic assemblies.

Designed for wire cross-sectional areas between 0.2 mm² and 0.8 mm² (24 to 18 AWG). Spring box style design protects wire connection points and mating interface from mechanical damage. Suitable for applications in communication and networking devices requiring high reliability connections.

Terminals facilitate efficient crimp or compression termination methods. Supports continuous operation up to 105°C and withstands low temperatures down to -25°C.

This component is part of the Molex 5194 series, widely used in electronics and electrical connector systems. For industrial, laboratory, manufacturing, and communication sectors, the terminal is an essential part to ensure high-quality wire connection reliability.
