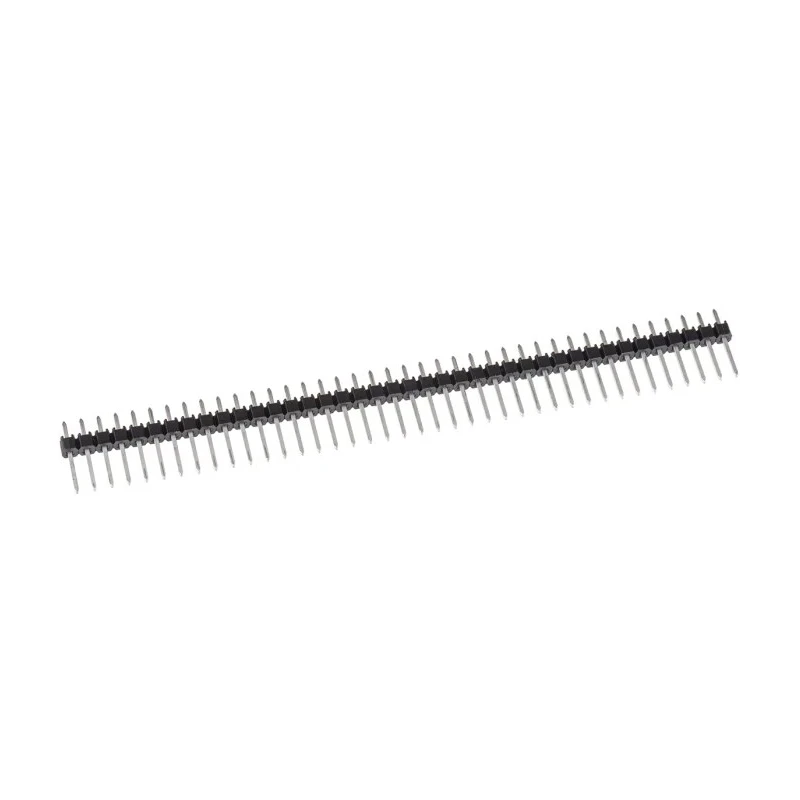

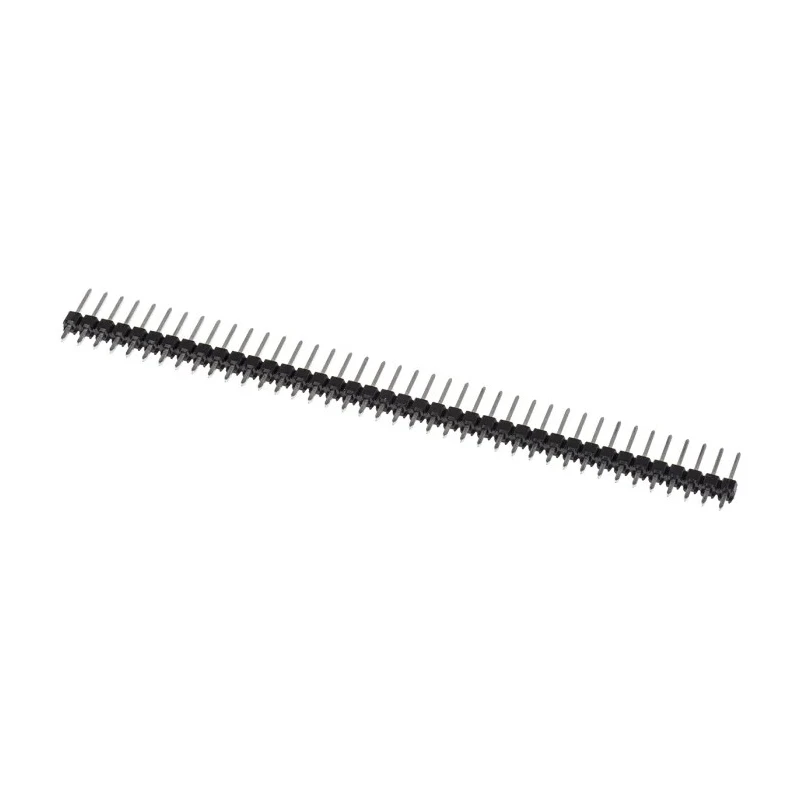

Molex C-Grid III Series Straight Through Hole Pin Header 40 Contacts 2.54 mm Pitch 1 Row Unshrouded 90120-0160

Free Delivery in India | Lowest Global Shipping Charges

Molex C-Grid III Series Straight Through Hole Pin Header 40 Contacts 2.54 mm Pitch 1 Row Unshrouded 90120-0160

Name: Molex C-Grid III Series Straight Through Hole Pin Header 40 Contacts 2.54 mm Pitch 1 Row Unshrouded 90120-0160
Brand: Molex
SKU: 207021
Price: 3.98 USD
Availability: InStock



Category PCB Pin Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	350V
Brand	Molex
Orientation	Straight
Current	3A
Mount Type	Through Hole
Housing Material	Polyester
Contact Material	Brass
Series	C-Grid III
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	40
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Wire-to-Board
Tail Pin Length	2.9mm
Mating Pin Length	6.75mm

Key Features

Compatible with C-Grid III series connectors for board-to-board and wire-to-board interconnections.
Constructed with brass contacts plated in tin for reliable conductivity.
Mount type is through hole with a straight orientation and solder termination.
Operates within -55°C to 125°C temperature range for versatile industrial use.
Supports a maximum voltage of 350V and current rating of 3A.
Features a breakaway design allowing cutting to size for flexible PCB layout.
High retention force ensures secure mating and mechanical stability after soldering.
Tail pin length is 2.9 mm and mating pin length is 6.75 mm.

Product Description

Molex 90120-0160 C-Grid III Series Straight Through Hole Pin Header is a high-quality PCB header designed for reliable wire-to-board and board-to-board connections. This single-row, unshrouded pin header has 40 contacts arranged with a 2.54 mm pitch, ensuring compatibility with industry-standard interconnection systems.

The pin header's contacts are made of brass with tin plating, offering excellent electrical conductivity and resistance to corrosion. The housing is made of durable polyester, providing structural support and insulating properties.

This component operates safely over a wide temperature range of -55°C to 125°C and supports voltages up to 350V with a current rating of 3A, making it suitable for a variety of industrial, computer, telecommunications, medical, and automotive applications. Its through-hole mounting and straight orientation allow for robust mechanical fixation and easy soldering to printed circuit boards.

Designed for flexibility, the header features a breakaway design enabling precise size adjustment to fit specific PCB layouts. The tail pin length of 2.9 mm and mating pin length of 6.75 mm provide secure and stable electrical connections once assembled.

Compatible with C-Grid III series connectors for board-to-board and wire-to-board applications. Made from brass contacts plated with tin for high conductivity and corrosion resistance. Through-hole mount with straight orientation and solder termination type.

Wide operating temperature range from -55°C to 125°C. Rated for 350V voltage and 3A current. Breakaway feature allows customization of length for PCB design flexibility. High mechanical stability and retention force after soldering.

Polyester housing material ensures durability and insulation.

This Molex C-Grid III pin header is well suited for use in industrial controls, computer equipment, medical devices, automotive safety electronics, telecommunications hardware, and consumer electronics. Its robust design ensures long component life and reliable electrical performance.
