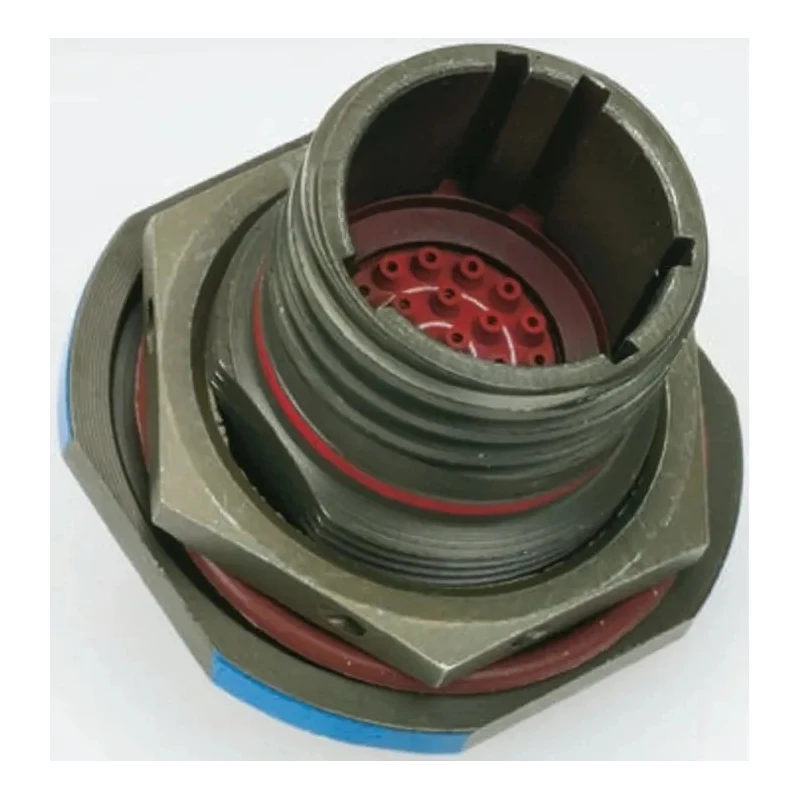

Amphenol Socapex MIL Spec Circular Connector Female 22 Contacts Panel Mount Straight Screw Coupling 550V TV07RW1335S
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 550V dc |
| Brand | Amphenol Socapex |
| Orientation | Straight |
| Model | TV07RW1335S |
| Mount Type | Panel Mount |
| Termination Type | Crimp |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold |
| Number of Contacts | 22 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shell Size | 13 |
| Military Standard | MIL-DTL-38999 |
| Mating Type | Screw Coupling |
| Shell Plating | Olive Drab Cadmium |
Key Features
- The shell size is 13, providing a compact yet durable housing.
- Panel mount type with straight orientation ensures secure installation.
- Connector features gold-plated female contacts for superior conductivity and corrosion resistance.
- Meets MIL-DTL-38999 military standard for harsh environment applications.
- Operates reliably within temperature range of -65°C to 175°C.
- Termination type is crimp, ensuring stable and lasting contact.
- Shell plating is olive drab cadmium, adding excellent protection against corrosion and EMI.
- Designed for industrial, military, aerospace, and other demanding sectors.
Product Description
Amphenol Socapex TV07RW1335S MIL Spec Circular Connector is engineered for high-performance and reliability in harsh electrical environments. This panel mount connector accommodates 22 female contacts within a shell size 13 aluminum housing designed to meet MIL-DTL-38999 Series III specifications.
The connector supports a voltage up to 550V dc and works efficiently within a broad temperature range from -65°C minimum to 175°C maximum, making it suitable for varied industrial, military, and aerospace applications.
Featuring gold-plated female contacts and an olive drab cadmium-plated shell, it ensures excellent conductivity, corrosion resistance, and improved EMI shielding. The straight orientation and panel mount type facilitate secure, space-conscious installation in electronic assemblies.
Termination is via crimp, providing a robust and stable electrical connection, while the screw coupling with a triple-start thread allows rapid and reliable mating and demating cycles. The shell-to-shell or metal-to-metal bottoming improves mechanical stability and shielding.
This MIL Spec connector is designed to intermate with MIL-DTL-38999 Series I connectors with compatible panel drilling patterns, ensuring compatibility in complex systems. The shell size 13 configuration is standard for demanding applications requiring moderate contact density.
Gold contact plating delivers superior electrical performance and durability. The olive drab cadmium shell plating offers robust mechanical protection and corrosion resistance. The MIL-DTL-38999 military standard classification guarantees compliance with stringent military requirements.
Operating temperature range from -65°C to 175°C provides reliable performance in extreme conditions. Panel mount design offers straightforward and secure assembly in electronic enclosures. Crimp termination type assures strong connection integrity.
Screw coupling with triple-start thread enables fast and secure mating.
This product is ideal for use in industrial manufacturing, military hardware setups, aerospace systems, and other technical environments where reliable, high-performance circular connectors are essential. Explore more Mil Spec Circular Connectors for diverse connectivity requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a maximum voltage of 550V dc.
It operates reliably within a temperature range of -65°C to 175°C.
This model features 22 female contacts.
The termination type for this connector is crimp, ensuring stable and lasting contact.
The shell size of this connector is 13.
This connector is designed for panel mount installation.
It features a screw coupling with a triple-start thread for secure mating.
The country of origin for this connector is France.
The contacts are gold-plated, which enhances conductivity and corrosion resistance.
