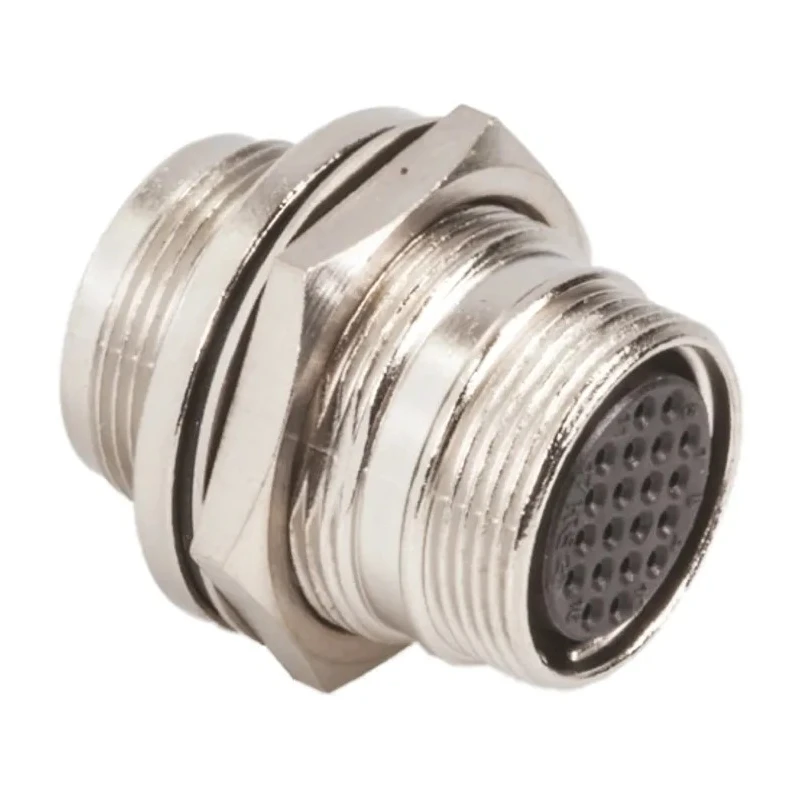

Hirose Circular Connector Miniature, 20 Contacts, Panel Mount Socket Female, IP67 IP68, 2A, 100V, HR22 Series

Hirose HR22-12WTRA-20SC(73) circular connector is a miniature, panel mount socket designed for industrial and manufacturing environments requiring reliable and waterproof electrical connections. This connector series is especially suited for machine tool motors and operational panels due to its compact form factor and robust construction.

The connector features 20 silver-plated bronze contacts offering excellent conductivity at a current of 2 amperes and an operating voltage of 100V. Its screw lock mating type prevents accidental disconnections, ensuring secure and stable electrical interfacing even in environments exposed to vibration or movement.

The housing is made of brass and zinc with nickel plating that provides durability and resistance against corrosion while maintaining the integrity of the connection. The connector is rated IP67 and IP68, providing protection against dust ingress and water immersion, making it ideal for harsh industrial conditions.

Operating temperature ranges from -25°C to 85°C enable the connector to function reliably in diverse environments. The termination type uses crimp contacts for secure wiring, while the straight orientation facilitates installation in confined spaces.

This Hirose HR22 series connector includes 20 female contacts in a shell size 12 housing with a panel mount format, making it a dependable solution for applications requiring compact, waterproof connectivity.

Compact and waterproof connector suitable for industrial applications. Features a screw lock mating system for secure connections. Contact rating of 2 amperes with 100 volts operating voltage. Constructed using brass and zinc housing for strength and corrosion resistance.

Silver plated bronze contacts ensure reliable conductivity. Operational temperature range from -25°C to 85°C. Designed for crimp termination types with straight orientation. Miniature shell size 12 suitable for machine tool motors and control panels.

Offers female contact gender in a panel mount format for easy installation. Compliance with IP67 and IP68 ratings guarantees dust and water resistance.

This product is ideal for industrial, manufacturing, automation, and machine tool applications requiring durable and reliable electrical connections. Explore the extensive range of Hirose Circular Connectors and engineering components on EnvMart for all your industrial connectivity needs.
