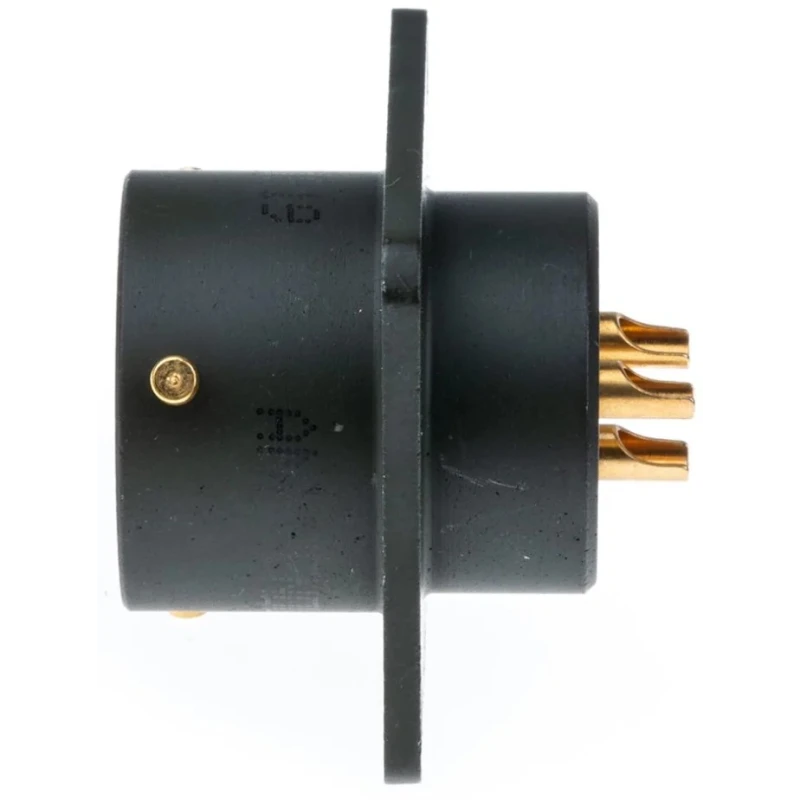

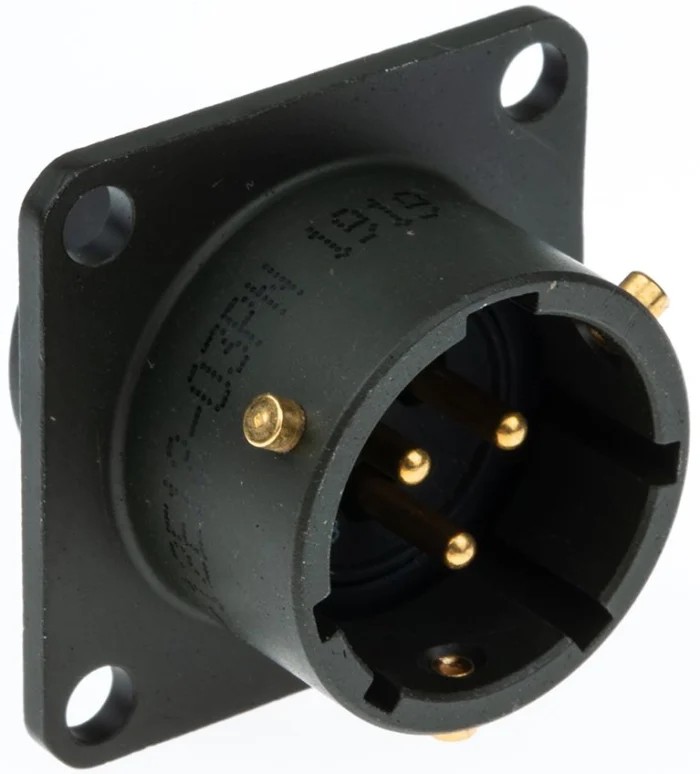

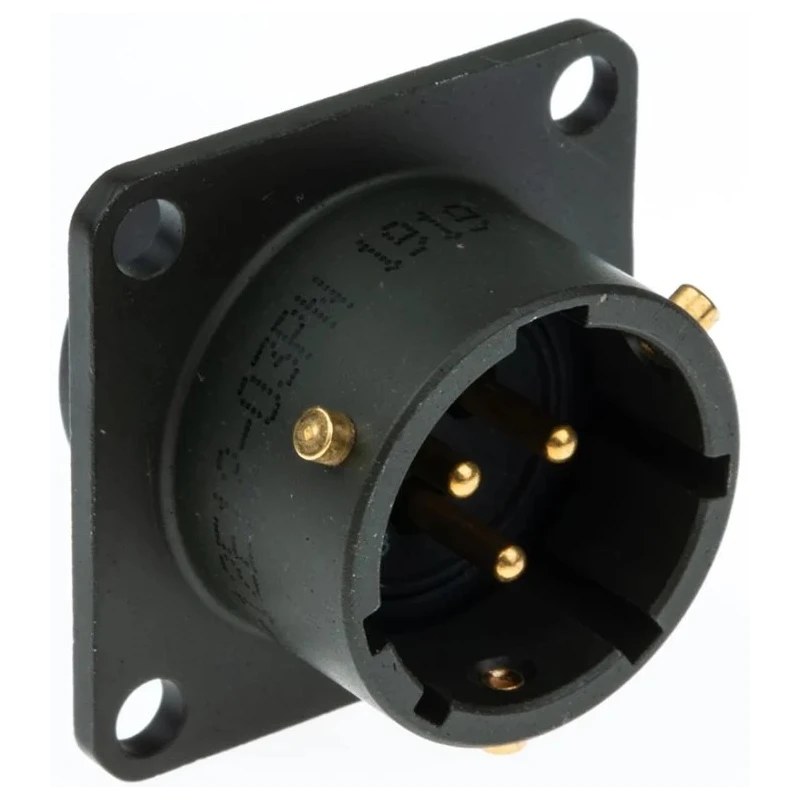

Amphenol Limited MIL Spec Circular Connector 3 Contact Miniature 1.2, 850kV dc Voltage Copper Tin 62GB-12E12-03PN
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1.2, 850kV dc |
| Brand | Amphenol Limited |
| Colour | Olive |
| Orientation | Straight |
| Model | 62GB-12E12-03PN |
| Mount Type | Box Mount |
| Housing Material | Aluminium |
| Contact Material | Copper Tin |
| Series | 62GB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | 12 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Connector Size | Miniature |
| Shell Plating | Zinc Cobalt |
Key Features
- The connector complies with MIL-DTL-26482 military standards ensuring ruggedness.
- It features a zinc cobalt plated aluminium shell in olive drab finish for corrosion resistance.
- The connector has a maximum operating temperature of 125°C and a minimum of -55°C.
- Designed with a straight orientation and solder termination for secure connections.
- Provides high dielectric voltage rating of 1.2 and 850kV dc for reliable electrical performance.
- Its bayonet lock system prevents mismating and ensures secure mechanical engagement.
- Suitable for military and industrial applications requiring durable miniature circular connectors.
- Strain relief is included to enhance cable protection and longevity.
Product Description
Amphenol Limited 62GB-12E12-03PN is a high-quality MIL Spec Circular Connector designed to meet stringent MIL-DTL-26482 standards. This miniature, box mount connector features 3 gold-plated copper tin contacts with a robust bayonet lock mating system to provide secure, reliable connections in harsh environments.
The connector housing is crafted from aluminium with a zinc cobalt olive drab finish, offering excellent corrosion resistance. It is rated for a wide temperature range from -55°C to 125°C, suitable for extreme industrial and military applications.
Operating voltage capacity includes 1.2 kV AC and 850 kV DC, ensuring dependable performance in demanding electronics systems. The straight orientation and solder termination type support straightforward cable assembly and maintenance.
Amphenol 62GB series connectors provide a high level of environmental protection when mated, suitable for use in aerospace, defense, manufacturing, and other industrial fields. The bayonet locking mechanism with added keyway prevents mismating, enhancing system reliability.
Strain relief features protect cable integrity during vibration and mechanical stress, extending service life. These connectors comply with military specifications including BS9522 FOO17, Def Stan 59-35, and MIL-C-26482E, ensuring standardized quality and compatibility.
Compliant with MIL-DTL-26482 military standard for rugged use. Durable aluminium shell with corrosion-resistant zinc cobalt plating. Bayonet lock mating system prevents accidental disconnects. Gold-plated copper tin contacts for high conductivity and corrosion resistance.
Wide operating temperature range from -55°C to 125°C. Miniature size 12 shell accommodates 3 contacts for compact installations. Solder termination type enables strong electrical and mechanical contact. Olive drab color finish blends with military equipment.
Provides high dielectric voltage withstand capability. Suitable for military, aerospace, industrial electronic connector applications.
Choose Amphenol Limited 62GB-12E12-03PN for durable, reliable, and precision MIL Spec circular connections. Explore EnvMart's wide selection of military-spec connectors and accessories for your industrial needs.
Explore more products in our Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a voltage rating of 1.2 kV AC and 850 kV DC, ensuring reliable electrical performance in demanding applications.
This model operates within a temperature range of -55°C to 125°C, making it suitable for extreme environments.
The connector features 3 contacts, designed for compact installations.
It utilizes a solder termination type, which enables strong electrical and mechanical connections.
The housing is made from aluminium with a zinc cobalt plating for corrosion resistance.
It features a bayonet mating type, which helps prevent accidental disconnects and ensures secure connections.
Yes, it complies with MIL-DTL-26482 military standards, ensuring ruggedness and reliability in harsh conditions.
The connector has an olive drab finish, which blends well with military equipment.
It is suitable for military, aerospace, and industrial electronic applications that require durable miniature connectors.
The shell size of this model is 12, accommodating its 3 contacts in a compact design.
The connector includes strain relief features that protect cable integrity during vibration and mechanical stress.
The contacts are made from gold-plated copper tin, which provides high conductivity and corrosion resistance.
