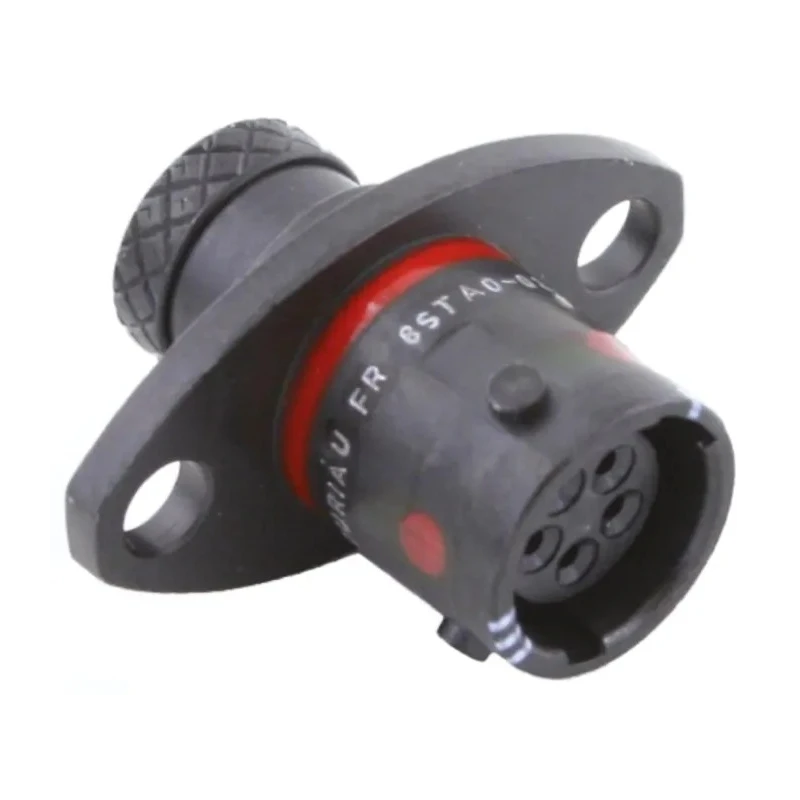

Souriau Sunbank by Eaton Circular Connector 5 Contacts Panel Mount Socket Female IP67

Souriau Sunbank by Eaton 8STA00205SN circular connector is a premium 5-contact panel mount socket developed primarily for motorsport and industrial applications where reliability under vibration, shock, and harsh environmental conditions is critical.

These connectors conform to MIL-DTL-38999 specifications and are crafted from lightweight aluminium housing with conductive black zinc finish to provide excellent corrosion resistance. The gold-plated copper alloy contacts ensure superior electrical conductivity and durability.

The size 2 oval flange design offers a compact form factor with a bayonet mating system that securely mates with an audible click in one-third of a turn, facilitating quick and reliable connections.

Rated IP67, the connector withstands water immersion up to 1 meter for 30 minutes minimum, making it suitable for demanding outdoor and industrial environments. Operating temperature range from -55°C to 175°C allows use in extreme conditions encountered in motorsport, military UAVs, ground vehicles, and infantry interconnections.

The connector supports 1000V and 3A current, compatible with high-performance electronic control modules and power distribution. The product features shock resistance up to 300g for 3 milliseconds and vibration endurance of 147m/s² from 10Hz to 2000Hz, assuring robustness against mechanical stresses.

Colour coded banding on the connector facilitates easy identification during assembly and maintenance. This connector set is supplied complete with contacts and an extraction tool to assist with installation and maintenance tasks.

Designed to MIL-DTL-38999 standards with bayonet mating type. Rated for 1000V voltage and 3A current carrying capacity. Temperature range from -55°C to 175°C for harsh environments. Aluminium housing with gold-plated copper alloy contacts ensures durability and conductivity.

Compact size 2 oval flange with quick mate in a 1/3 turn and audible click. Shock resistance of 300g for 3ms and vibration tolerance of 147m/s². Colour coded banding for fast identification in assemblies. Waterproof with IP67 rating for 1 meter depth and 30 minutes minimum immersion.

Ideal for motorsport, military UAVs, ground vehicles, and demanding industrial environments. Comes complete with contacts and extraction tool for assembly. Discover high-performance industrial Circular Connectors at EnvMart for applications in motorsport, military, manufacturing, and aerospace sectors.
