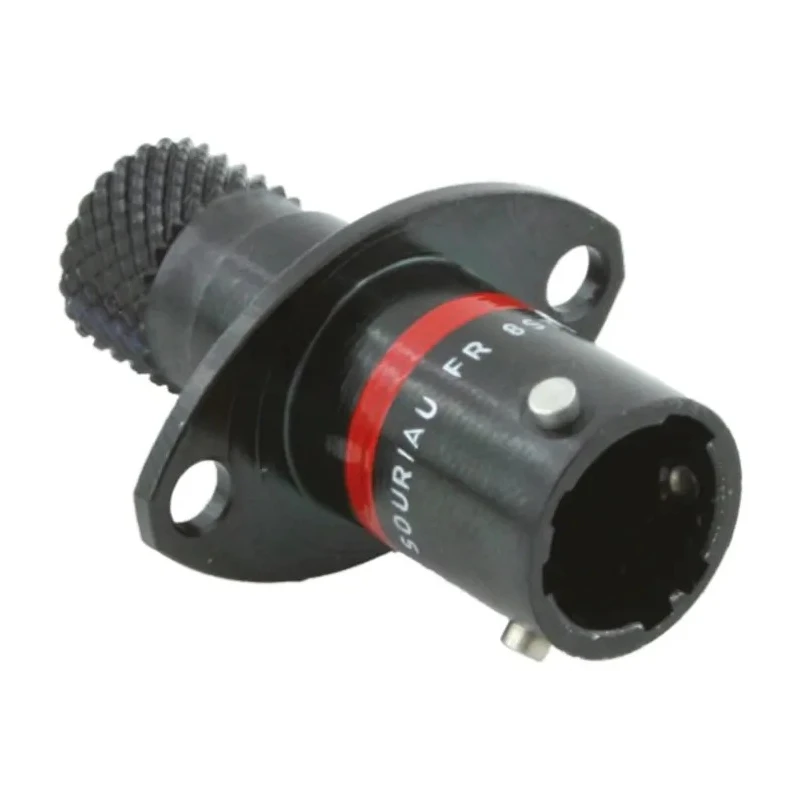

Souriau Sunbank by Eaton Circular Connector, 6 Contacts, Panel Mount, Standard Size, Socket, Male, IP67, 8STA00835PN

Souriau Sunbank by Eaton 8STA00835PN is a high-performance circular connector with 6 contacts, designed for panel mount installation. It uses a standard connector size with a socket type and male contact gender, ensuring compatibility and durable interconnection.

These connectors are derived from MIL-DTL-38999 specifications and primarily developed for motorsport and other extreme applications where vibration, shock, and harsh environment tolerance is critical. The aluminium alloy housing with conductive black zinc plating offers a rugged yet lightweight design.

The connector is rated with an IP67 ingress protection, making it resistant to dust and water ingress at depths up to 1 meter for a minimum of 30 minutes. The contacts are gold plated copper alloy, enhancing electrical reliability and corrosion resistance.

Operating temperature ranges from -55°C to 175°C, suitable for extreme hot and cold environments. The design incorporates a quick mating bayonet lock that requires only a 1/3 turn with an audible click, ensuring secure and reliable connections under vibration and shock.

Typical applications include motorsport sectors such as Formula 1, Moto GP, WRC, Nascar, and other racing environments, as well as military UAVs, ground vehicles, and infantry systems where size, weight, and performance are paramount.

The connector body features colour-coded banding for easy identification, and it complies with tolerance standards for shock resistance of 300g for 3 ms and vibration exposure from 10 to 2000 Hz at 147 m/s². Supplied as a complete assembly, this connector provides robust performance for demanding industrial and professional environments.

Designed for harsh environments with IP67 ingress protection, ensuring water and dust resistance. Constructed with an aluminium alloy housing and conductive black zinc plating for durability. Gold plated copper contacts provide excellent electrical conductivity and corrosion resistance.

Operates reliably in extreme temperatures from -55°C to 175°C. Quick mating bayonet lock allows a 1/3 turn connection with an audible click for secure assembly. Suitable for motorsport applications including Formula 1, Moto GP, WRC and other demanding industrial uses.

Shock resistance rated at 300g for 3ms and vibration tolerance up to 147m/s² for 10 to 2000Hz. Standard size shell with colour coded banding for easy identification and mating. Bayonet mating type and straight orientation ensure easy panel mounting and secure connection.
