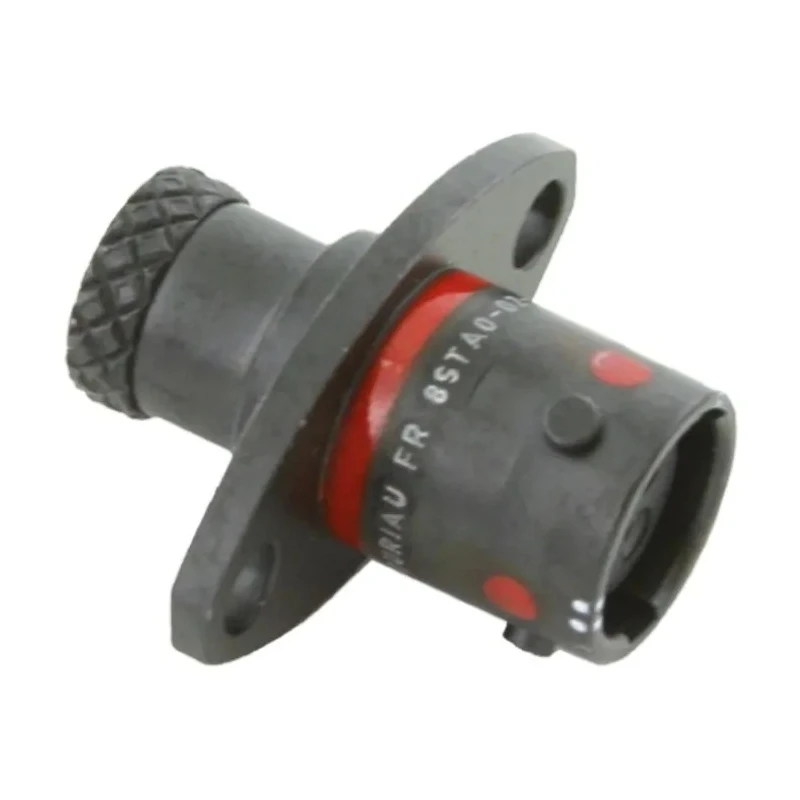

Souriau Sunbank by Eaton Circular Connector, Panel Mount Socket, Female, 3 Contacts, IP67, 1000V, 5A, Aluminium Housing,
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1000V |
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 5A |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Aluminium |
| Contact Material | Copper |
| Series | 8STA |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Shell Size | 2 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Socket |
| Coding | N |
Key Features
- The connector is panel-mounted and features a standard size with 3 contacts.
- Rated for 5 amps current and 1000 volts operating voltage.
- Constructed with an aluminium housing for enhanced durability and corrosion resistance.
- Designed to meet IP67 protection standards, ensuring water and dust resistance.
- Gold-plated copper alloy contacts provide reliable electrical conductivity.
- Operates reliably in temperatures ranging from -55°C to 175°C.
- Mating type is quick bayonet lock with 1/3 turn for easy and secure connection.
- Suitable for motorsport, military, UAV, and other high-reliability applications where vibration and impact resistance is critical.
Product Description
Souriau Sunbank by Eaton 8STA00235SN Circular Connector is an industrial-grade, panel mount socket connector with 3 female contacts designed for robust performance in harsh environments. Rated IP67, it offers excellent protection against dust and water ingress, making it ideal for industrial and motorsport applications.
This connector complies with MIL-DTL-38999 specifications and features an aluminium housing that provides strength while being lightweight. Gold-plated copper alloy contacts ensure optimal conductivity and resistance to corrosion. The quick mating bayonet lock enables fast and secure connections with an audible click, ensuring ease of use in demanding conditions.
The 8STA series connectors are specifically designed for motorsport and military applications such as Formula 1, Moto GP, WRC, UAVs, infantry interconnections, and ground vehicles. Its shock resistance of 300g for 3ms and vibration tolerance up to 147m/s² ensures operational reliability under extreme mechanical stresses.
The connector operates efficiently within a broad temperature range from -55°C to 175°C, making it suitable for various industrial environments. Size 2 oval flange design with colour-coded banding facilitates quick and correct mating. This connector guarantees a secure connection with a 1/3 turn bayonet mechanism.
Panel mount, 3 contacts socket with female contacts. Aluminium housing with conductive black zinc finish. Gold-plated copper alloy contacts for enhanced conductivity. IP67 rated for water and dust protection. Temperature range: -55°C to 175°C for versatile use cases.
Compatible with motorsport and military-grade applications. Quick bayonet lock mating type for fast connection. Shock resistance of 300g and vibration resistance suitable for harsh environments.
This connector is supplied complete with contacts and extraction tool, making installation straightforward. It is a specialized product designed for industries requiring high-performance Circular Connectors such as automotive racing, military communications, UAV systems, and industrial machinery.
Explore the full range of Souriau Sunbank by Eaton connectors on EnvMart for advanced connectivity solutions tailored to demanding applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum operating voltage of 1000V.
It has a current rating of 5A.
This model has an IP67 rating, providing protection against dust and water ingress.
The housing is made of aluminium, and the contacts are gold-plated copper alloy.
It operates efficiently within a temperature range of -55°C to 175°C.
This connector features 3 female contacts.
It uses a quick bayonet lock mating type for secure connections.
It is suitable for motorsport, military, UAV, and other high-reliability applications.
The shell size of this model is 2.
Yes, it is supplied complete with contacts and an extraction tool for installation.
It has a shock resistance rating of 300g for 3ms.
Yes, it complies with MIL-DTL-38999 specifications.
