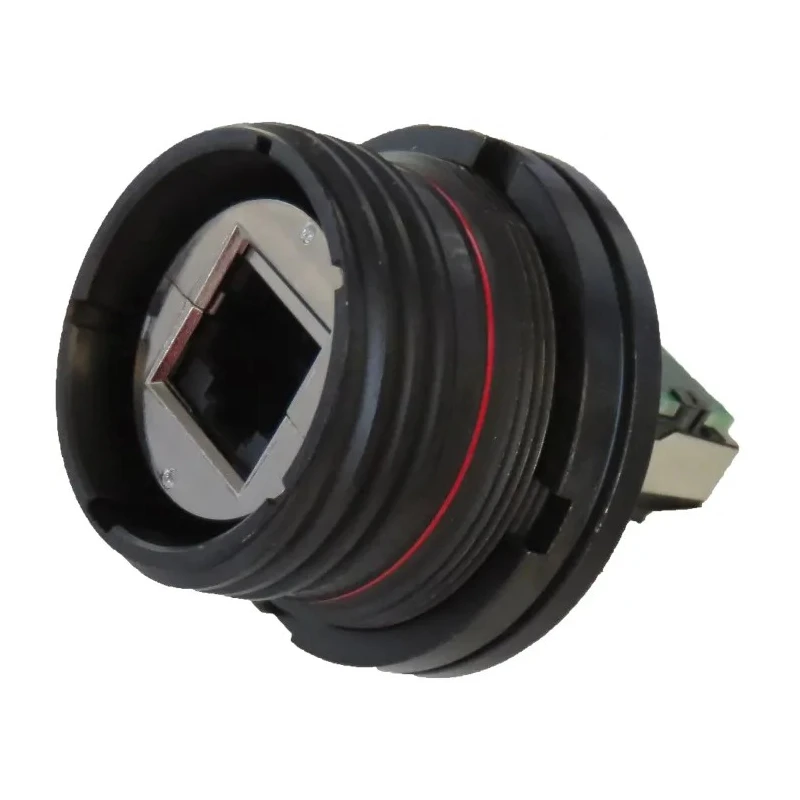

Amphenol Socapex RJFTV6 Series RJ45 Connector Female, Cat6 Shielded Straight 1 Port 8 Way RJFTV67A1GF312

Amphenol Socapex RJFTV67A1GF312 RJFTV6 Series RJ45 Connector is a high-performance female receptacle designed for Cat6 Ethernet applications. It provides a shielded, straight configuration with one port and eight ways, ensuring reliable connectivity in industrial and military-grade environments.

Manufactured from high-quality copper alloy contacts with gold plating, the connector ensures exceptional signal quality and corrosion resistance. Its IP68 rating guarantees protection against dust and fluid ingress, making it ideal for harsh environmental conditions. The connector tolerates operating temperatures from -40°C to 85°C, suitable for extreme temperature variations.

The RJFTV6 series features a patented RJ Stop system that allows standard RJ45 cords to be used within a metallic plug, providing robust protection from shocks, dust, and fluids without requiring hazardous or field cabling and grounding. The reduced flange design offers a 41% smaller footprint and is 15% lighter than standard RJF TV receptacles, facilitating compact and lightweight device designs.

This connector also employs mechanical coding with four polarization positions and a tri-start thread coupling mechanism with an anti-decoupling device, enhancing EMI protection and mechanical robustness. The connector shell size is 19, built for superior shock, vibration, and traction resistance with a minimum of 500 mating cycles, ensuring durability in demanding applications.

Common applications include C4ISR systems, battlefield communications, naval equipment, ground vehicles, and railway technology, where ruggedness and reliability are paramount. It complies with rigorous international standards including RoHS, EN45545, MIL-DTL-38999, ISO/IEC 11801, TIA/EIA568B, and UL94 V0, confirming its suitability for safety-critical and telecom environments.

The connector features a shielded, straight orientation suitable for robust Ethernet connections. It supports Cat6 LAN category providing high-speed data transmission. Designed with 1 port and 8 ways to accommodate standard RJ45 configurations.

Constructed from copper alloy contacts with gold plating to ensure durable and reliable signal integrity. Rated for IP68 protection, making it resistant to dust and fluids. Operates reliably in temperatures ranging from -40°C to 85°C, suitable for extreme conditions.

Compact size with a length of 33.9 mm and a reduced flange footprint for space-saving installations. Mating cycles minimum count of 500 ensures long service life in demanding applications. Complies with multiple standards including RoHS, EN45545, MIL-DTL-38999, ISO/IEC 11801, and UL94 V0 for safety and performance compliance.

Applied in critical industries such as C4ISR, battlefield, navy, railways, and ground vehicles due to its rugged mechanical design and shock resistance. Explore more products in the Ethernet Connectors category on EnvMart for advanced connectivity solutions tailored to industrial and military needs.
