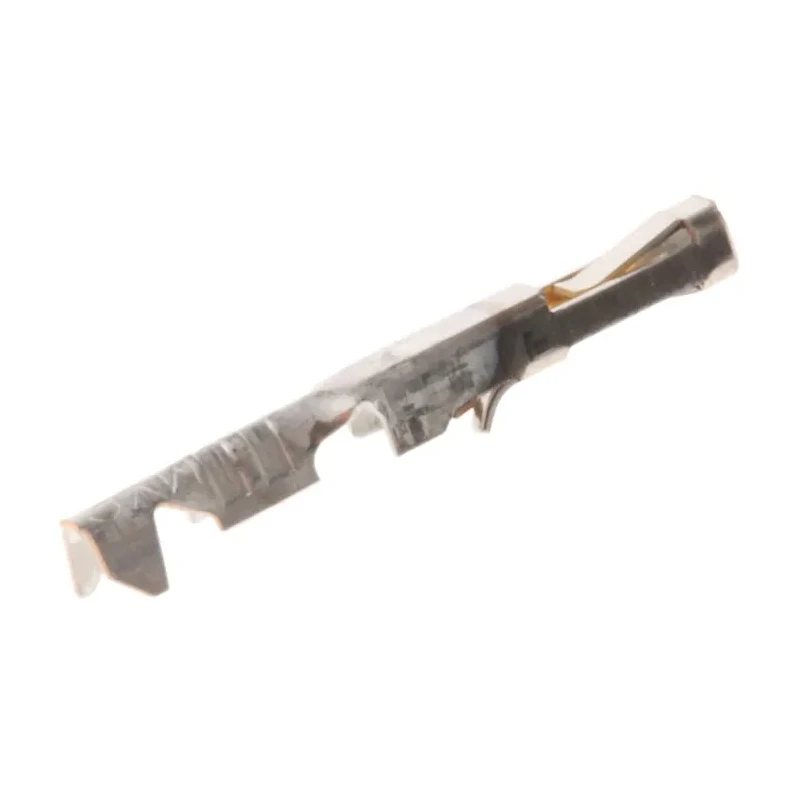

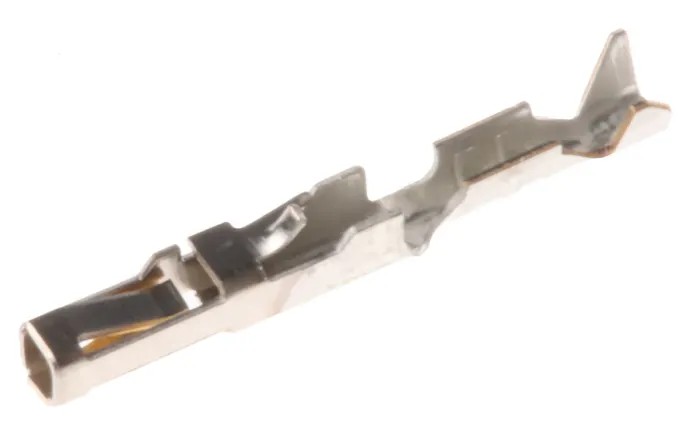

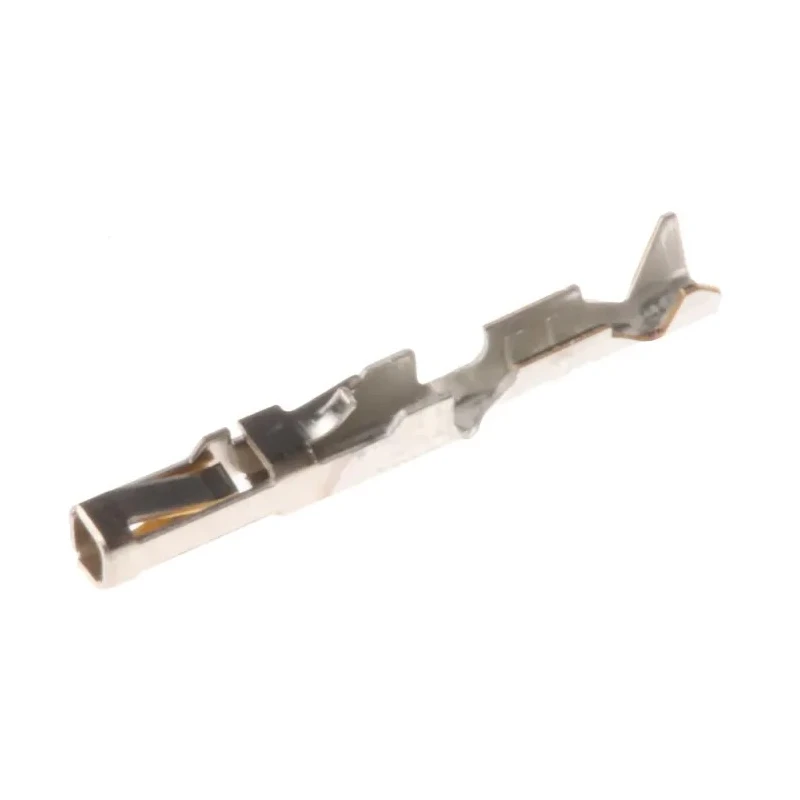

Molex 90119 Series Female Crimp Terminal, 28 AWG Min Crimp, 26 AWG Max, Gold Plated Phosphor Bronze Contacts 3A 90119-2122

Molex 90119-2122 is a female crimp terminal from the 90119 series designed for use with 28 AWG minimum and 26 AWG maximum wire sizes. This crimp terminal integrates high-quality phosphor bronze contacts with selective gold plating over nickel to provide excellent electrical conductivity and resistance to corrosion. It supports a maximum continuous current of 3 amperes and is rated for use within a temperature range from -55°C to 105°C, making it suitable for demanding industrial and commercial environments.

These terminals are part of the C-Grid III system, compatible with multiple connector housings such as 90156, 90123, 90142, 90143, and 90160 series. The crimp terminals feature a robust box design with a uniform locking system for reliable mechanical retention within the various housing styles. The contact plating ensures low contact resistance, measured at a maximum of 20 milliohms, ensuring signal integrity in electronic assemblies.

Manufactured using 15% glass-filled polyester (PBT) insulation for headers and polyphenylene oxide for housing, these terminals provide durability and thermal stability. The recommended PCB hole diameter of 1 mm allows precise and secure mounting in printed circuit board applications. This product is commonly used in consumer electronics and commercial vehicles, where reliable wire-to-board connections are critical.

Tools compatible for use with this series include specific crimp tools sized for 28-26 AWG wires, as well as specialized insertion and extraction tools available separately. This enables efficient assembly and maintenance of connector systems.

Compatible with C-Grid III connector housings for versatile applications. Constructed with phosphor bronze contact material offering durability and conductivity. Selective gold plating over nickel ensures optimal signal integrity and corrosion resistance.

Rated for a maximum operating temperature of 105°C and minimum of -55°C for broad environmental compatibility. Recommended PCB hole diameter is 1 mm for precise mounting and electrical contact. Termination type is crimp for secure wire attachment and reliable electrical connection.

Designed for use in consumer electronics and commercial vehicle assemblies. Compact header pin size of 0.64 square mm for efficient PCB integration.

The Molex 90119-2122 terminal is ideal for industrial automation, consumer electronics manufacturing, and commercial vehicle electrical systems, providing reliable and durable wire termination. Explore the wide selection of Molex C-Grid III crimp terminals and connectors on EnvMart to support your electronic assembly needs.
