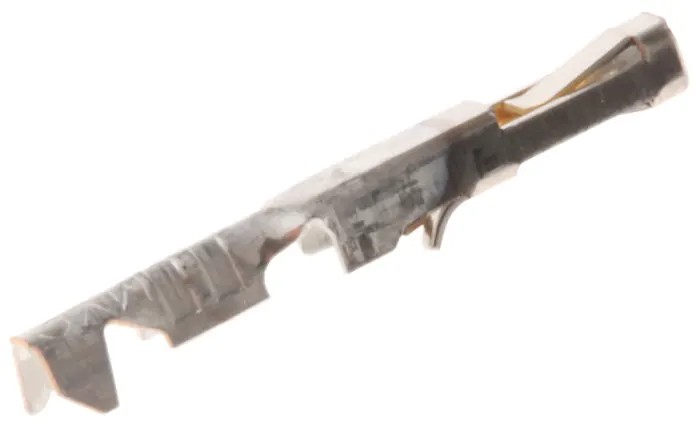

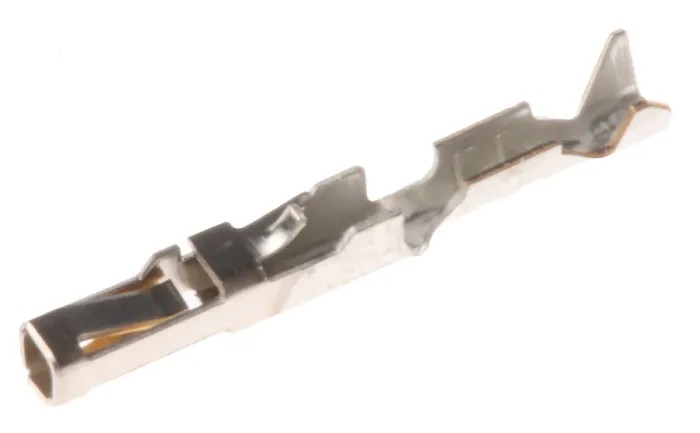

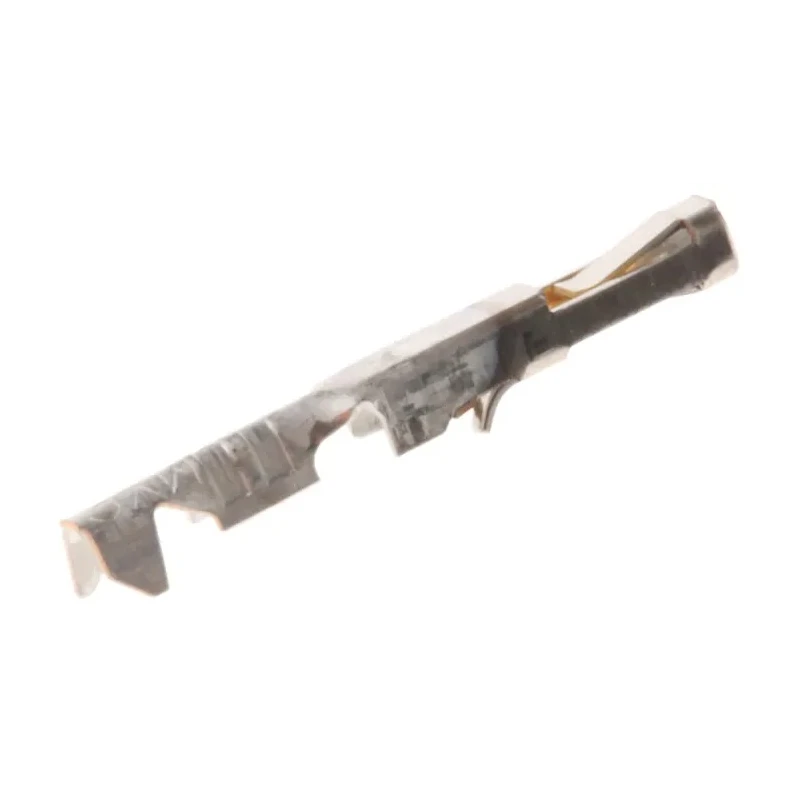

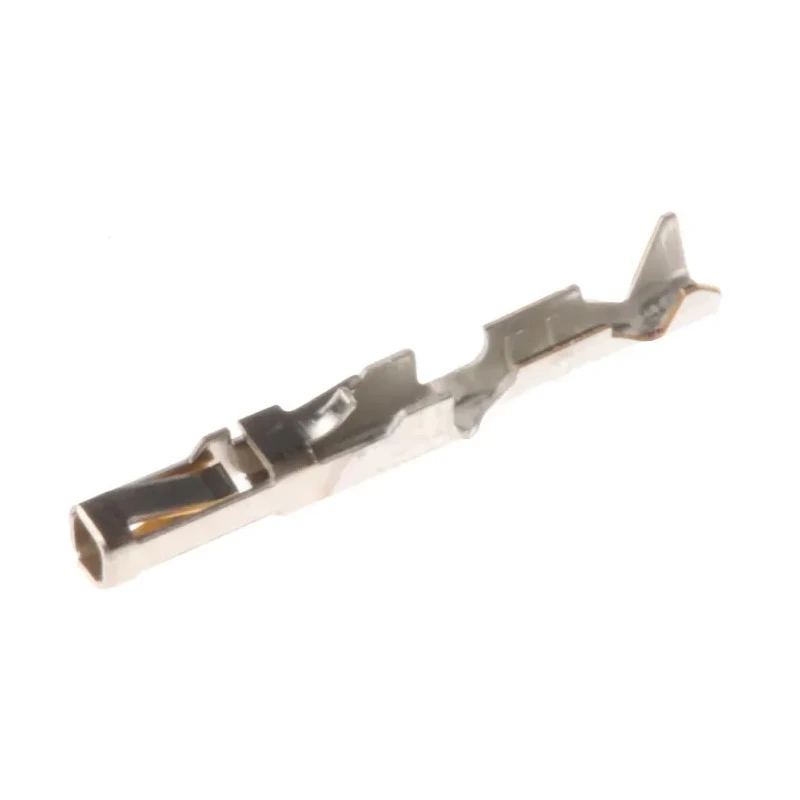

Molex 90119 Series Female Crimp Terminal 3A Current, Gold Plating, 28 AWG Min Crimp, 26 AWG Max 90119-2122
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Housing | Polyphenylene Oxide |
| Contact Material | Phosphor Bronze |
| Series | 90119 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | C-Grid III Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.1mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 26AWG |
| Maximum Contact Resistance | 20mΩ |
| Insulation Material Headers | 15% Glass-filled Polyester (PBT) |
| Header Pin Size | 0.64 square mm |
| Recommended PCB Hole Diameter | 1mm |
Key Features
- Constructed from phosphor bronze with selective gold plating for reliable conductivity.
- Supports a current rating of up to 3 amperes.
- Operates within a temperature range of -55°C to 105°C.
- Compatible with multiple series crimp housings including 90156, 90123, 90142, 90143, and 90160.
- Features a box design with a uniform locking system for secure connections.
- Recommended PCB hole diameter is 1mm for mounting stability.
- Ideal for consumer electronics and commercial vehicle applications.
- Termination type is crimp, ensuring firm wire attachment.
Product Description
Molex 90119-2122 female crimp terminal is a precision-engineered electrical component designed for use with C-Grid III connector housings. It supports wire sizes ranging from 28 AWG minimum to 26 AWG maximum while handling a maximum current of 3 amperes, making it suitable for various low-power electronic and automotive applications.
Manufactured from durable phosphor bronze, this terminal is selectively plated with gold over nickel to ensure excellent electrical conductivity and corrosion resistance. The design includes a box-shaped contact with a uniform locking mechanism that provides reliable and secure mating within multiple connector housing series, such as 90156, 90123, 90142, 90143, and 90160.
The terminal's operating temperature ranges from -55°C to 105°C, allowing its use in harsh environments typical of commercial vehicle and electronic consumer sectors. Its insulation headers are made from 15% glass-filled polyester (PBT), and the housing is constructed from polyphenylene oxide, further enhancing durability and heat resistance.
This crimp terminal ensures a stable mechanical and electrical connection when used with corresponding crimping tools and is suited for printed circuit board mounting with a recommended hole diameter of 1mm. Its compact header pin size of 0.64 square millimeters facilitates effective circuit integration.
Molex 90119-2122 is widely applied in industrial, commercial, and consumer electronic designs, providing a dependable solution for electronic connectors and wire harness assemblies.
Constructed from phosphor bronze with selective gold plating over nickel. Rated for a maximum current of 3 amperes and working voltage up to 350 Vac/dc. Compatible with various C-Grid III crimp housing series. Termination via crimp for secure wire connections.
Insulation headers made from 15% glass-filled polyester (PBT). Operating temperature range from -55°C to 105°C. Recommended PCB hole diameter of 1mm for board mounting. Ideal for consumer electronics and commercial vehicle assemblies.
Explore more Molex connectors and related components on EnvMart for your industrial and technical requirements.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 3 amperes.
This terminal supports wire sizes ranging from 28 AWG minimum to 26 AWG maximum.
It operates within a temperature range of -55°C to 105°C.
The terminal is constructed from phosphor bronze with selective gold plating over nickel, and the insulation headers are made from 15% glass-filled polyester (PBT).
It is compatible with C-Grid III connector housings including series 90156, 90123, 90142, 90143, and 90160.
The recommended PCB hole diameter for mounting is 1mm.
This terminal uses crimp termination for secure wire connections.
The maximum contact resistance for this terminal is 20 milliohms (mΩ).
The header pin size is 0.64 square millimeters.
The housing material is polyphenylene oxide.
This terminal is ideal for applications in consumer electronics and commercial vehicles.
This terminal is manufactured in India.
