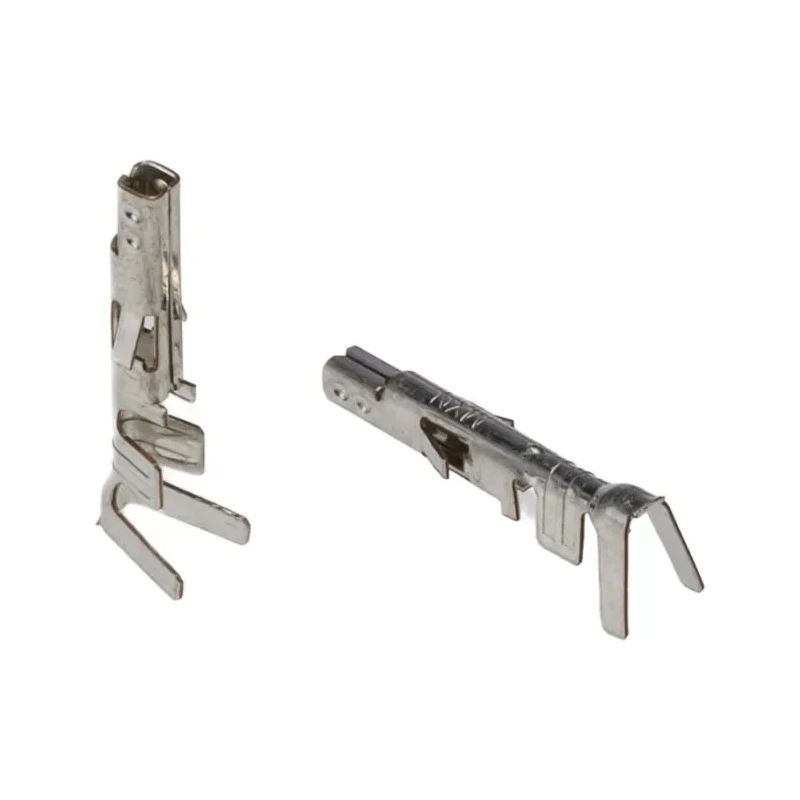

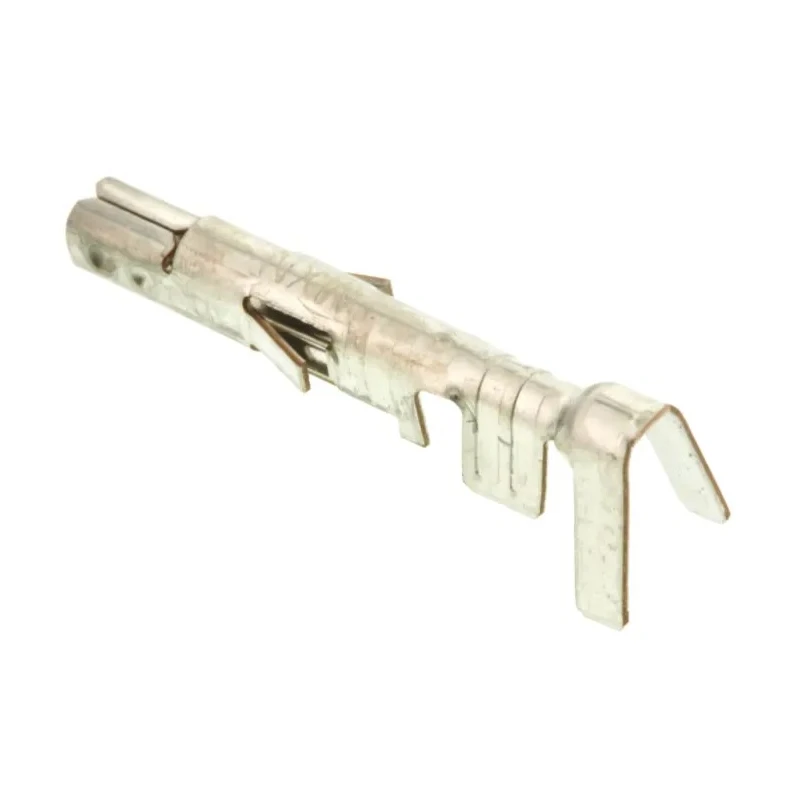

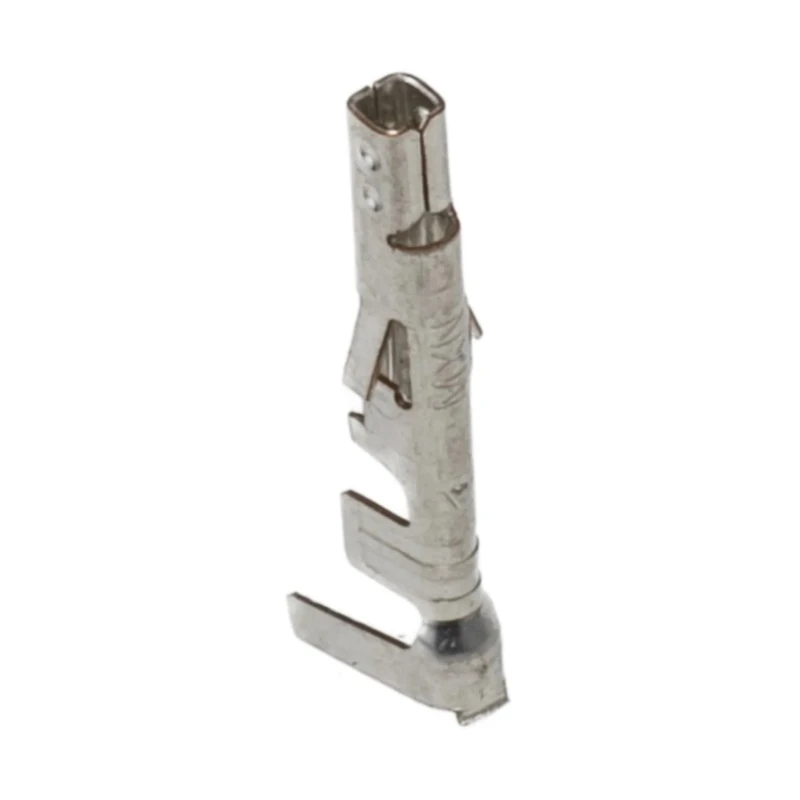

Molex 5556 Series Female Crimp Terminal 16 AWG Min Crimp, 16 AWG Max 39-00-0080
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Tin |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Designed for Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI connector housings.
- Constructed from phosphor bronze material with tin plating for corrosion resistance.
- Supports a maximum current of 9 A and voltage rating of 600 V.
- Operates reliably between -40°C and +105°C temperature range.
- Ensures a maximum contact resistance of 10 milliohms for stable electrical connections.
- Rated for up to 30 mating cycles to ensure durable reusability.
- Suitable for power distribution, wire-to-board and wire-to-wire electrical connections.
- Offers reliable and secure crimp termination method for industrial and electronic applications.
Product Description
Molex 39-00-0080 female crimp terminal is a high-quality electrical connector designed specifically for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. Supporting a wire gauge size of 16 AWG (1.3 mm²), this terminal provides secure, reliable electrical connections suitable for power distribution and wiring applications in industrial, electronic, and manufacturing contexts.
The terminal is constructed from phosphor bronze material, providing excellent conductivity, and is plated with tin to enhance corrosion resistance and ensure long-term durability. It employs a crimp termination method that creates a robust connection, capable of withstanding vibrations and physical stress.
Engineered to operate efficiently in temperature ranges from -40°C to +105°C, this terminal supports a maximum continuous current of 9 A and withstands voltages up to 600 V. It features a maximum contact resistance of 10 milliohms, ensuring efficient current flow and minimal energy loss. The design supports up to 30 mating cycles, enabling repeated connections and disconnections without degradation in performance.
This crimp terminal is ideal for wire-to-board and wire-to-wire connections, commonly used in power distribution systems and various electronic assemblies. Its robust construction and proven reliability make it suitable for industrial, laboratory, manufacturing, and commercial electrical wiring tasks.
Designed for Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI connector housings. Constructed from phosphor bronze with tin plating for corrosion resistance. Supports up to 9 A current and 600 V voltage rating. Functions effectively between -40°C to +105°C temperature range.
Maximum contact resistance of 10 milliohms ensures reliable conductivity. Crimp termination provides secure and vibration-resistant connections. Rated for 30 mating cycles ensuring reusability and durability. Applicable in power distribution, wire-to-board and wire-to-wire connections.
Explore the complete range of high-performance electronic connectors and crimp terminals on EnvMart to cater to all your electrical wiring and assembly needs.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 9 A.
It has a voltage rating of 600 V.
This terminal supports a wire gauge size of 16 AWG, which corresponds to a maximum wire size of 1.3 mm².
It is constructed from phosphor bronze and features tin plating for corrosion resistance.
The terminal operates reliably between -40°C and +105°C.
It is rated for up to 30 mating cycles, allowing for repeated connections and disconnections.
This model employs a crimp termination method, providing secure and vibration-resistant connections.
It is designed for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
The maximum contact resistance is 10 milliohms, ensuring reliable conductivity.
This terminal is suitable for power distribution, wire-to-board, and wire-to-wire electrical connections.
The country of origin for this terminal is the United States.
This crimp terminal is female.
