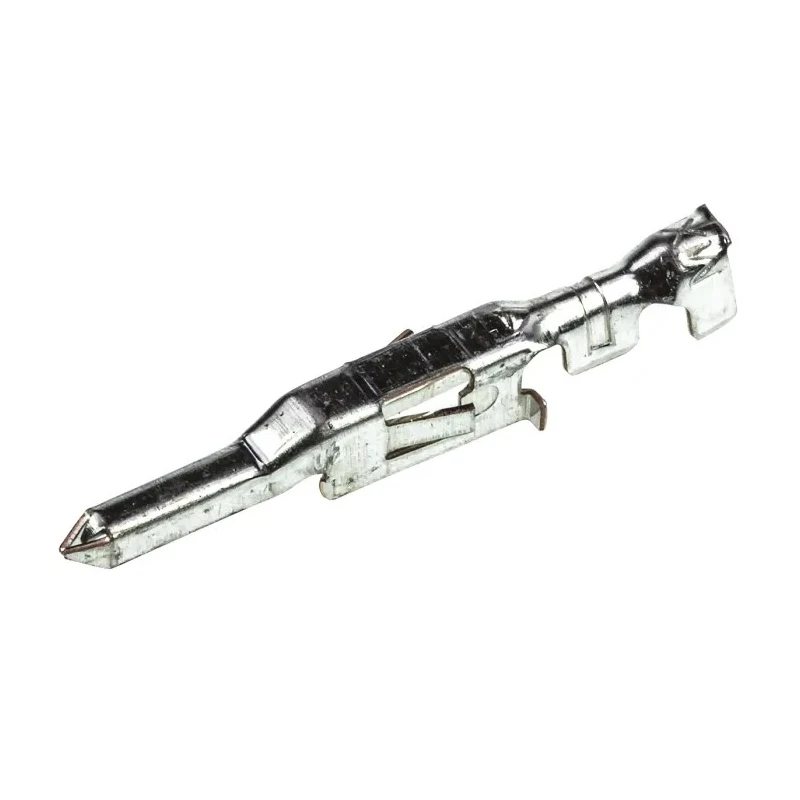

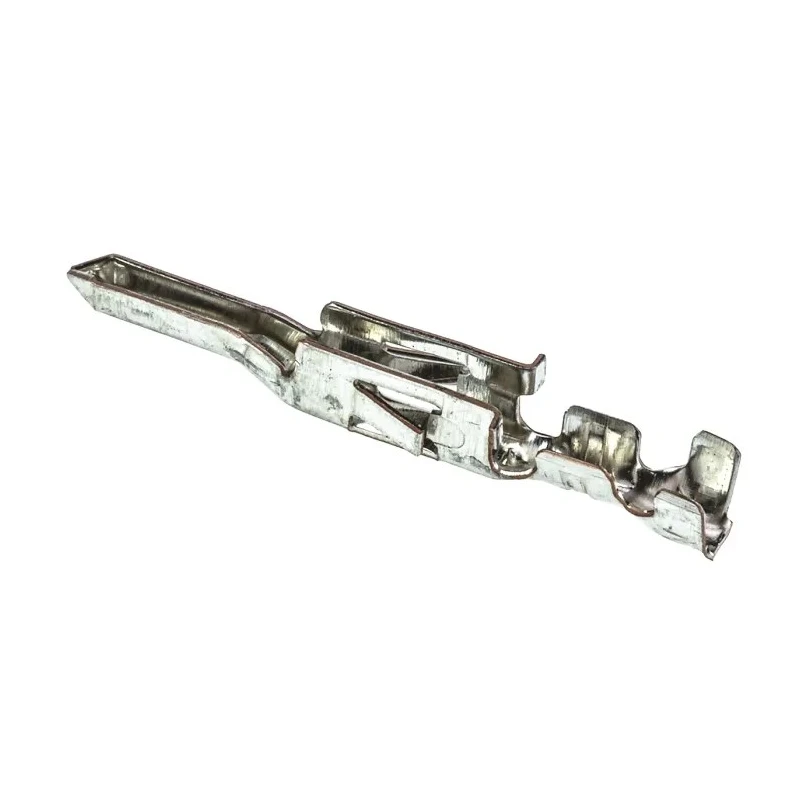

Molex 5558 Series Male Crimp Terminal 28 AWG to 22 AWG, Tin Plated Phosphor Bronze, 9A Current Rating 39-00-0068
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed with phosphor bronze contact material for durability.
- Tin plating ensures corrosion resistance and reliable conductivity.
- Designed for Mini-Fit TPA, BMI, and Mini-Fit Jr connector housings.
- Rated for 9A current carrying capacity with a maximum contact resistance of 10mΩ.
- Operates reliably between -40°C and 105°C temperature range.
- Features crimp termination type with locking tangs for secure housing connection.
- Suitable for automotive, industrial automation, medical, communications, and consumer electronics applications.
Product Description
The Molex 39-00-0068 5558 Series Male Crimp Terminal is engineered for robust electrical performance in Mini-Fit connector systems. This crimp contact is manufactured from phosphor bronze, providing excellent mechanical strength and conductivity, while the tin plating enhances corrosion resistance, ensuring a durable connection over time.
Compatible with Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings, these terminals feature locking tangs that secure them firmly in place to prevent dislodgement during operation. The crimp termination method ensures a reliable, low-resistance electrical connection suitable for professional assembly processes.
Operating within a temperature range of -40°C to 105°C, this terminal is rated for a continuous current of 9A, making it ideal for demanding industrial and automotive electrical systems. The maximum contact resistance is 10 milliohms, guaranteeing minimal energy loss and heat generation.
This product finds applications in diverse sectors including automotive wiring harnesses, industrial automation equipment, medical device connectors, communications infrastructure, and consumer electronics assemblies where reliable electrical contacts are critical.
Constructed from phosphor bronze for strength and electrical conductivity. Tin plating prevents corrosion and enhances reliability. Locking tangs provide secure mounting in connector housing. Supports wire gauges from 28 AWG to 22 AWG for flexible wiring options.
Crimp termination type designed for professional connectors. Suitable for operation from -40°C to 105°C ensuring wide environmental compatibility. Rated at 9A current capacity with low contact resistance. Applications span automotive, industrial automation, medical and consumer electronics.
Explore more products in the Crimp Contacts category at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a continuous current of 9A, making it suitable for various electrical applications.
This terminal supports wire sizes from 28 AWG to 22 AWG, providing flexibility for different wiring needs.
The maximum contact resistance is 10 milliohms, ensuring minimal energy loss during operation.
It is constructed from phosphor bronze for strength and conductivity, and features tin plating for corrosion resistance.
It operates reliably within a temperature range of -40°C to 105°C, suitable for various environments.
It is designed for use with Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings.
This model uses a crimp termination type, ensuring a reliable and low-resistance electrical connection.
It is suitable for automotive, industrial automation, medical, communications, and consumer electronics applications.
The terminal features locking tangs that secure it firmly in place within the connector housing, preventing dislodgement.
This terminal is male, designed for secure connections in various electrical systems.
The country of origin for this terminal is the United States.
It can accommodate a minimum wire size of 0.08 mm² and a maximum wire size of 0.35 mm².
