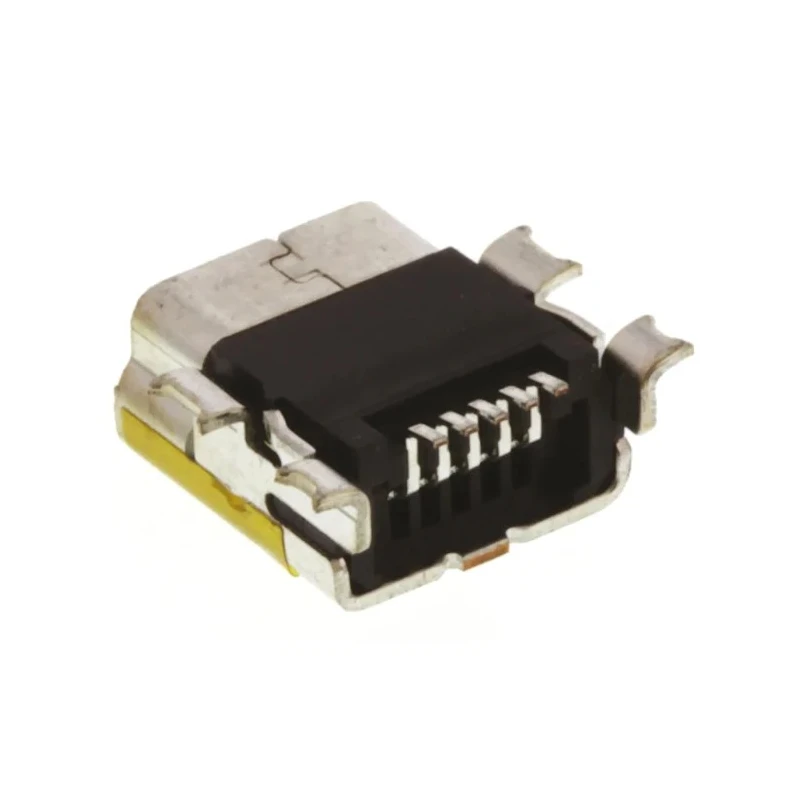

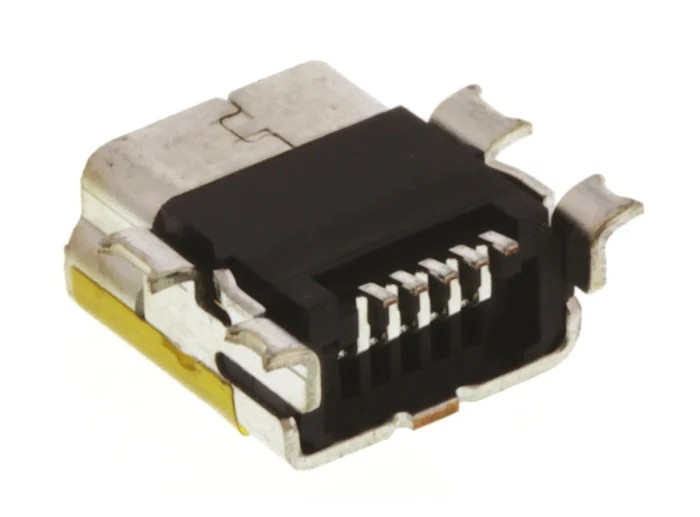

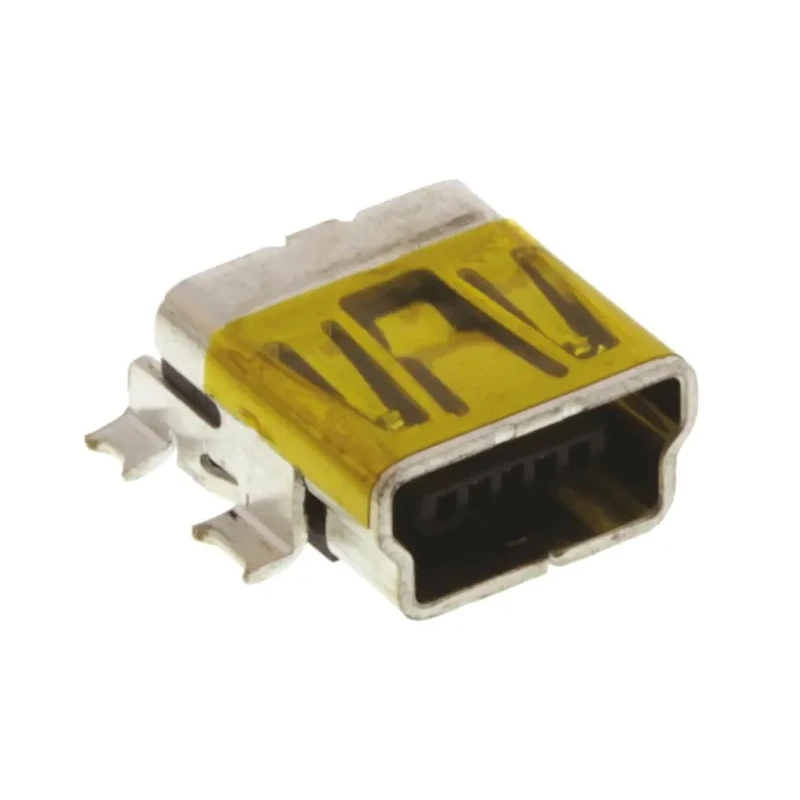

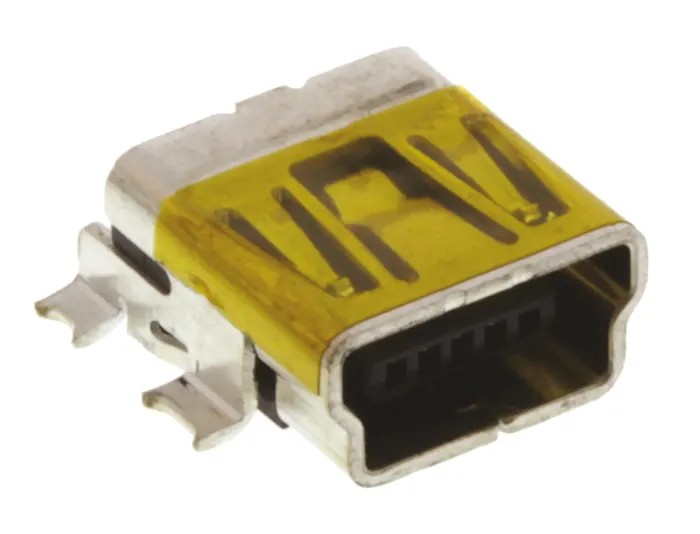

Molex Right Angle Surface Mount Female 1 Port USB Type B Connector USB 2.0 67503-1230

Free Delivery in India | Lowest Global Shipping Charges

Molex Right Angle Surface Mount Female 1 Port USB Type B Connector USB 2.0 67503-1230

Name: Molex Right Angle Surface Mount Female 1 Port USB Type B Connector USB 2.0 67503-1230
Brand: Molex
SKU: 206572
Price: 1.84 USD
Availability: InStock



Category USB Connector Brand Molex Condition New

Specifications

Country of Origin	China
Voltage	30V
Brand	Molex
Orientation	Right Angle
Current	1A
Mount Type	Surface
Contact Material	Copper Alloy
Series	On-The-Go
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
Interfaces	standard USB-B connector Excellent RFI/EMI performance
USB Type	USB Type B
Connector Gender	Female
USB Specification	USB 2.0

Key Features

Features a right angle orientation for space-efficient PCB mounting.
Rated for 1 ampere current and 30 volts operating voltage.
Constructed with copper alloy contacts for reliable conductivity.
Supports USB On-the-Go (OTG) supplement rev 1.0 for portable devices.
Designed to withstand temperature range from 0°C to 50°C.
Includes a 5-pin design to reduce mounting space requirements.
Termination type is solder for firm electrical connection.
Ensures excellent RFI/EMI performance for signal integrity.

Product Description

Molex 67503-1230 is a right angle surface mount female USB Type B connector designed to meet USB 2.0 specifications, delivering data transfer speeds up to 480 Mbps. This connector is part of the Molex On-The-Go series, enabling compatibility with portable and mobile equipment requiring compact, lightweight, and reliable USB connections.

Constructed with copper alloy contacts, this connector offers high electrical conductivity and RFI/EMI protection, maintaining signal integrity in demanding electronic applications. Its right angle orientation and 5-pin design reduce PCB mounting space, making it ideal for space-constrained environments.

Rated for 1 ampere of current and a maximum operating voltage of 30 volts, the connector supports robust performance across a temperature range of 0°C to 50°C. The termination type is solder, ensuring secure and durable electrical connections. This model supports USB On-The-Go (OTG) capabilities per revision 1.0 standards, enhancing compatibility with a variety of portable devices.

This product is manufactured in China by Molex and is suitable for electronic, industrial, and commercial applications requiring high-performance USB connectivity. It is commonly used in assembly of electronic devices, instrumentation, communication equipment, and other USB-enabled technologies.

Features a right angle orientation for space-efficient PCB mounting. Rated for 1 ampere current and 30 volts operating voltage. Copper alloy contacts ensure reliable conductivity. Compatible with USB On-The-Go (OTG) supplement rev 1.0.

Temperature rating from 0°C to 50°C for reliable usage. 5-pin pitch design reduces mounting space requirements. Solder termination for solid electrical connection. Excellent RFI/EMI performance maintains signal quality. Manufactured in China by Molex, model 67503-1230.

Discover more USB Connectors and related electronic components at EnvMart for a wide variety of industrial, electronic, and commercial applications.
