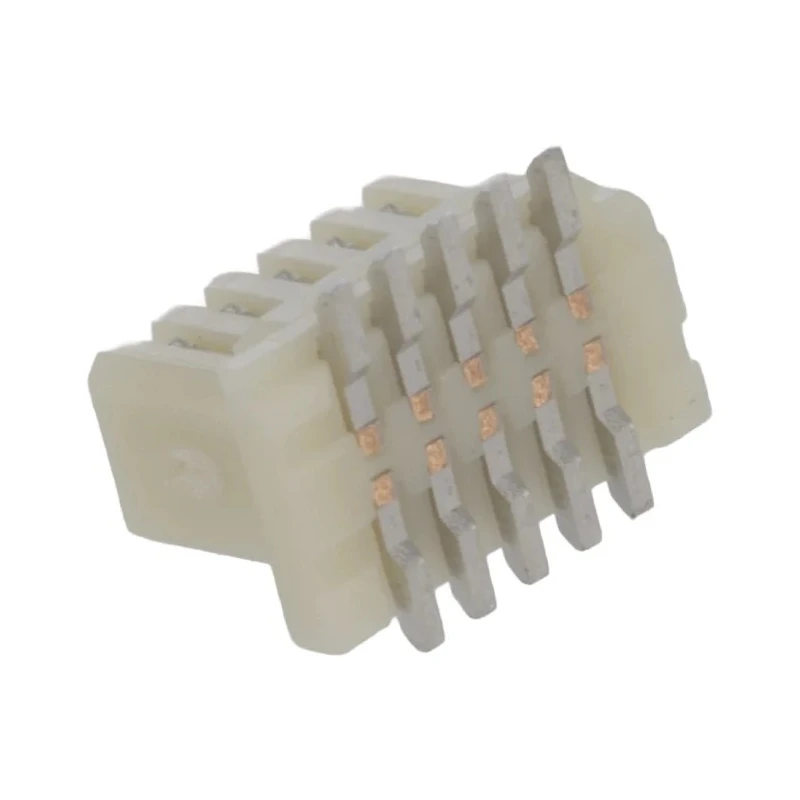

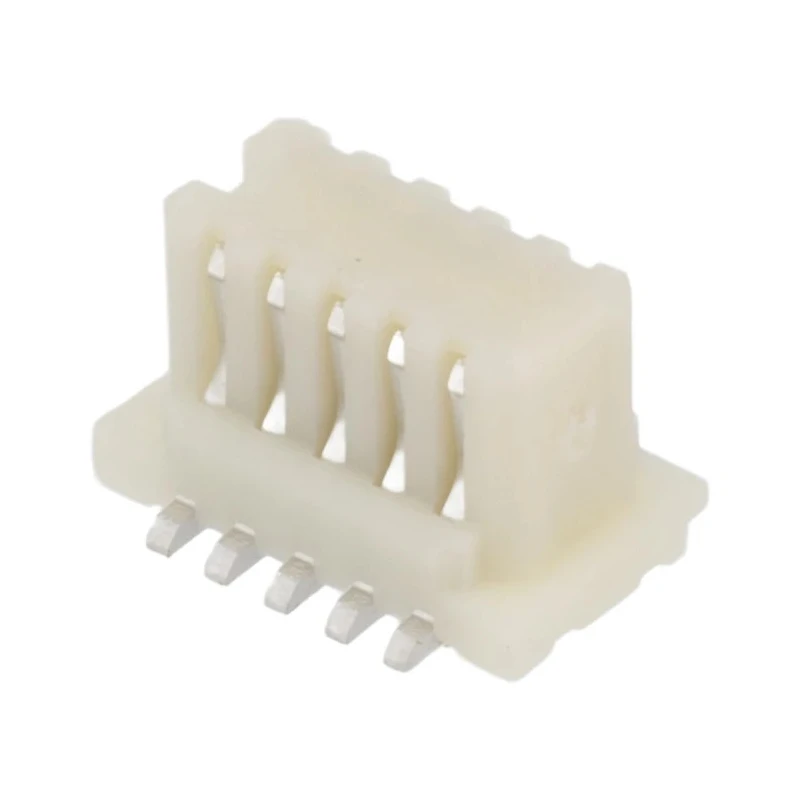

Molex 52465 Series Straight Surface PCB Socket, 10-Contact, 2 Row, 0.8 mm Pitch, Solder Termination 52465-1071

Molex 52465-1071 is a 10-contact, 2-row straight surface PCB socket designed for board-to-board electronic connections in industrial and commercial electronics.

Featuring a fine 0.8 mm pitch, this surface mount connector allows for high-density layout applications, commonly used in automation, consumer electronics, and mechanical assembly interfaces.

The socket's body is composed of thermoplastic material which offers strong insulation and mechanical integrity. With a current rating of 500mA and a voltage rating of up to 50V, it supports a reliable power and signal transmission.

The contacts are crafted from durable bronze and protected by tin plating, providing excellent conductivity and corrosion resistance over the product's lifetime.

Operating over a temperature range from -40°C to 105°C, it is suitable for a wide range of environmental conditions typically encountered in laboratory, manufacturing, and HVAC electronic systems.

The design includes a row pitch of 2.2 mm and is optimized for solder termination on PCBs, with a recommended PCB thickness of approximately 1.60mm to ensure mechanical stability. This connector supports up to 30 mating cycles, offering durable performance for repeated use.

The straight orientation and surface mount type are compatible with automated production lines for efficient assembly. It is ideal for applications requiring secure and compact board-to-board connections in delicate electronic designs.

Manufactured in Japan, the Molex 52465-1071 PCB socket complies with high quality and performance standards expected in professional electronic components.
