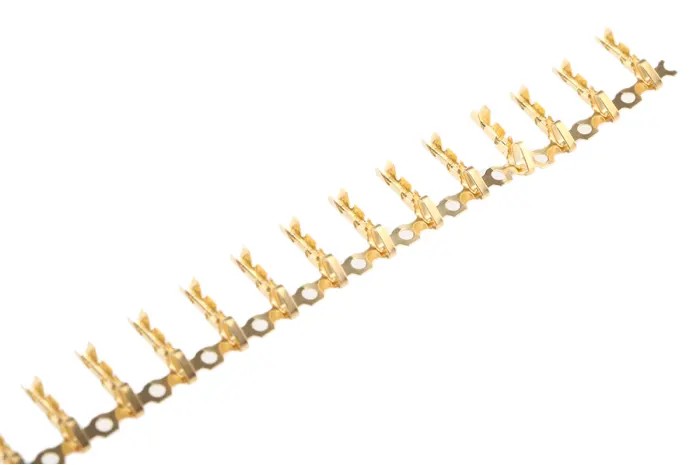

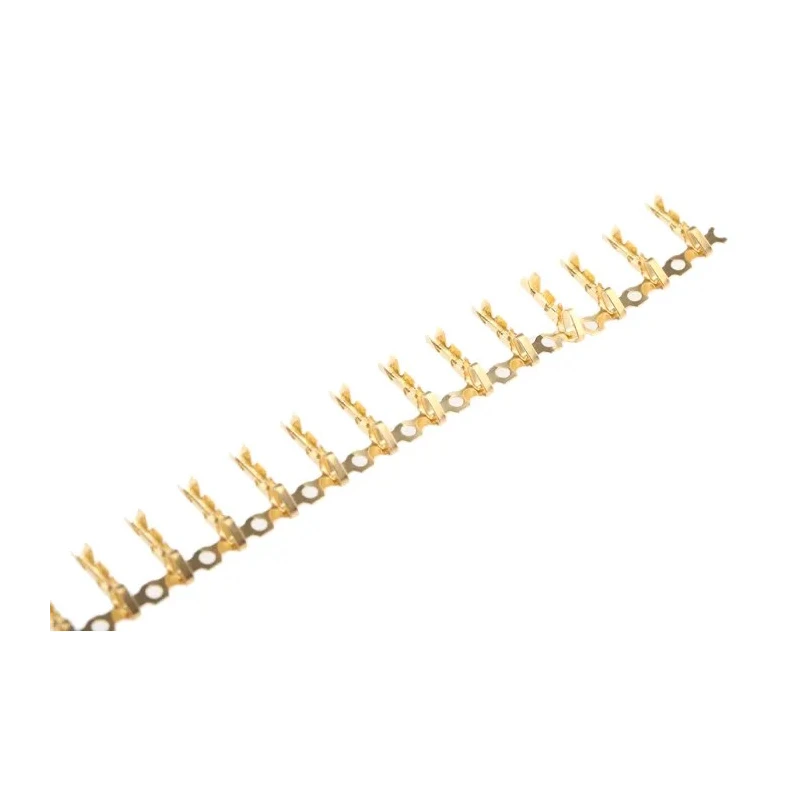

Molex 4809 Series Female Crimp Terminal 4A Current Gold Plated Brass Contact 30-22 AWG 08-56-0120
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 4A |
| Gender | Female |
| Contact Material | Brass |
| Series | 4809 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| For Use With | KK 254 Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed from brass with gold plating to resist corrosion and provide excellent conductivity.
- Compatible with KK 254 connector housing for secure PCB and wire connections.
- Crimp termination ensures airtight seal to prevent moisture and debris intrusion.
- Rated for operating temperatures from -40°C to 80°C for versatile environmental conditions.
- Offers low maximum contact resistance of 10 milliohms for reliable electrical connections.
- Ideal for automotive, medical, home security, and fire alarm applications.
- Part of Molex's 4809 series KK interconnect system optimized for signal and data communication.
- Meets EU environmental standards with reduced halogen content for safety in case of fire.
Product Description
Molex 08-56-0120 female crimp terminal is a high-quality electronic component designed for reliable connections in wire-to-board and PCB applications. This terminal supports wire sizes ranging from 30 AWG minimum to 22 AWG maximum and carries a current rating of 4 amperes. Manufactured from brass with a gold plating, the terminal offers superior corrosion resistance and excellent electrical conductivity for consistent signal transmission.
The crimp termination technique used creates an airtight seal, protecting connections from moisture and contaminant ingress, which ensures longer-lasting durability and dependable performance even in challenging environments. The terminal is compatible with Molex KK 254 connector housings and forms part of the versatile 4809 series family, widely recognized for signal and data communications.
Engineered to operate efficiently across a broad temperature range from -40°C to 80°C, this component suits use in automotive lighting systems, medical devices, home security systems, and fire alarm circuits. The gold plating on the contacts supports strong electrical conductivity while avoiding the need for alloy fillers, yielding mechanically robust and easy-to-make connections.
This product also complies with all pertinent EU environmental and safety regulations, featuring low halogen content to reduce toxic fumes under fire exposure, contributing to safer and environmentally responsible electronic assemblies.
Constructed with corrosion-resistant gold-plated brass contacts. Designed for wire sizes from 30 AWG to 22 AWG in Molex's KK 254 system. Reliable crimp termination ensures airtight, sealed electrical connections. Current rating of 4A with low maximum contact resistance of 10 milliohms.
Operating temperature range from -40°C to 80°C. Suitable for automotive, medical, security, and fire alarm applications. Compliant with EU environmental and safety standards, low halogen content. Explore our extensive Molex connector range and other electronics components with EnvMart, your trusted source for industrial and electronic supplies.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 4 amperes.
It supports wire sizes ranging from 30 AWG (0.05 mm²) to 22 AWG (0.35 mm²).
The maximum contact resistance is 10 milliohms, ensuring reliable electrical connections.
It is constructed from brass with gold plating, providing corrosion resistance and excellent conductivity.
The operating temperature range is from -40°C to 80°C, making it suitable for various environmental conditions.
This terminal is compatible with the KK 254 connector housing, facilitating secure PCB and wire connections.
It features crimp termination, which ensures an airtight seal to prevent moisture and debris intrusion.
It is ideal for use in automotive, medical, home security, and fire alarm applications.
Yes, it meets EU environmental standards with reduced halogen content for safety in case of fire.
This model is a female crimp terminal.
The country of origin for this product is India.
It is part of the Molex 4809 series, which is optimized for signal and data communication.
