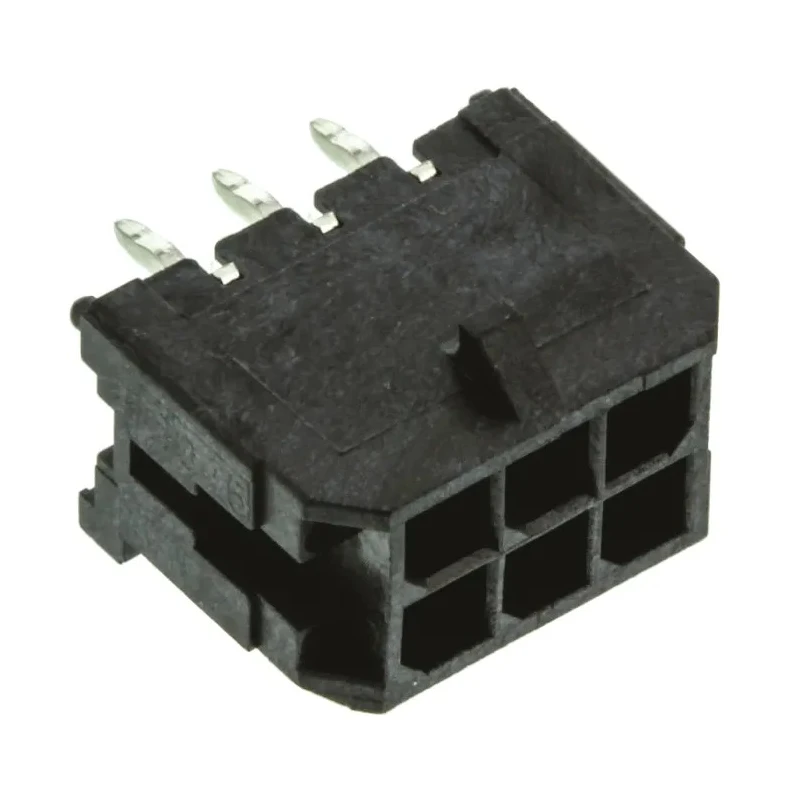

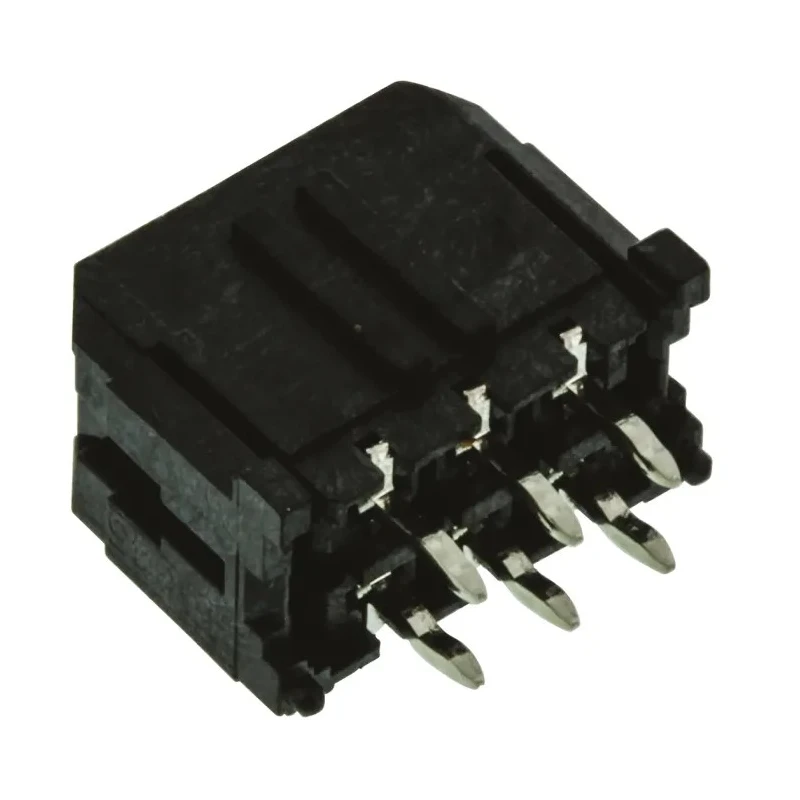

Molex Micro-Fit 3.0 Series Straight Through Hole PCB Header 6 Contact 3 mm Pitch 2 Row Shrouded 43045-0613
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3mm |
Key Features
- Compact dual row connector designed for wire-to-board applications.
- High temperature thermoplastic housing supports IR reflow soldering.
- Contacts are made of brass with gold plating for reliable electrical performance.
- Positive latching mechanism prevents accidental disconnection.
- Supports a current rating of 5A and operating voltage up to 250V.
- Shrouded design with PCB polarizing pegs for alignment and positioning.
- Suitable for low to mid power applications including consumer electronics and telecommunications.
- Operating temperature range from -40°C to 125°C.
Product Description
Molex 43045-0613 Micro-Fit 3.0 Series straight through hole PCB header is a 6-contact connector with a 3 mm pitch arranged in 2 rows. This shrouded PCB header is designed for robust wire-to-board connectivity, featuring a high temperature thermoplastic housing suitable for IR reflow soldering processes.
The connector system is engineered to carry up to 5A current at a voltage rating of 250V. Gold-plated brass contacts ensure high conductivity and resistance to corrosion. The inclusion of positive latching with a locking ramp provides secure mating and prevents accidental disconnection.
Its through hole mount type allows for SMT compatibility, reducing manufacturing process complexity and costs. PCB polarizing pegs incorporated into the design guarantee precise positioning and alignment on the printed circuit board.
This Micro-Fit 3.0 header connector is suitable for a wide array of industrial and commercial applications including military COTS, solar power systems, consumer appliances such as dryers and refrigerators, medical equipment, data communication devices like routers and servers, telecommunications, and gaming terminals.
Compact dual row connector designed for wire-to-board applications. High temperature thermoplastic housing supports IR reflow soldering. Contacts are made of brass with gold plating for reliable electrical performance. Positive latching mechanism prevents accidental disconnection.
Supports a current rating of 5A and operating voltage up to 250V. Shrouded design with PCB polarizing pegs for alignment and positioning. Suitable for low to mid power applications including consumer electronics and telecommunications.
Operating temperature range from -40°C to 125°C.
This product belongs to the PCB Headers category in Electronics Components and is ideal for use in industrial, laboratory, telecommunications, and manufacturing contexts, providing reliable and efficient power and signal distribution. Browse more in EnvMart’s range of Micro-Fit and PCB connector solutions for advanced electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 5A and an operating voltage of up to 250V.
The housing is made from high temperature thermoplastic, while the contacts are made of brass with gold plating for reliable electrical performance.
This model has a pitch of 3 mm and features 6 contacts arranged in 2 rows.
It uses a through hole mount type, which allows for SMT compatibility.
The operating temperature range is from -40°C to 125°C.
Yes, it features a positive latching mechanism that prevents accidental disconnection.
This connector is suitable for low to mid power applications, including consumer electronics and telecommunications.
The termination type for this header is solder.
The orientation of this connector is straight.
It is suitable for a wide array of applications including military COTS, solar power systems, medical equipment, and data communication devices.
The shrouded design, along with PCB polarizing pegs, ensures precise positioning and alignment on the printed circuit board.
This product is manufactured in India.
