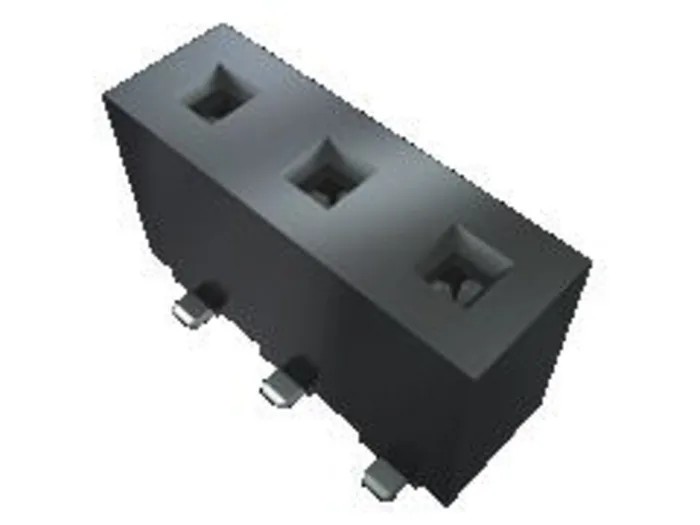

Samtec HPF Series Straight Through Hole PCB Socket 10-Contact 1 Row 5.08 mm Pitch Solder HPF-10-01-T-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1.2kV |
| Brand | Samtec |
| Orientation | Straight |
| Model | HPF-10-01-T-S |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | HPF |
| Termination | Through-hole, surface mount |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Power Socket |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Connector System | Board-to-Board |
| Contact System | Power Eye |
Key Features
- Constructed from Liquid Crystal Polymer housing for durability and high performance.
- Features beryllium copper alloy contacts with tin plating for excellent conductivity.
- Designed for through-hole mounting with solder termination for secure assembly.
- Operates up to 1.2 kV voltage and withstands temperatures from -55°C to 105°C.
- Complies with RoHS standards ensuring environmental safety.
- Vertical orientation with power eye contact system for robust electrical connection.
- Suitable for industrial and electronic component applications requiring reliable power connectors.
- Supports surface mount and through-hole terminations for flexible PCB designs.
Product Description
The Samtec HPF-10-01-T-S is a precision-engineered Straight Through Hole PCB Socket designed for power applications requiring a 10-contact connection in a single row. Manufactured with a Liquid Crystal Polymer housing, this socket ensures high durability and resistance to environmental stresses. Its beryllium copper alloy contacts plated with tin deliver excellent electrical conductivity and reliability crucial in demanding industrial and electronic environments.
With a pitch of 5.08 mm (0.200 inches), the connector facilitates vertical board-to-board connections suitable for various power distribution and electronic interfacing tasks. The mounting type is through-hole with solder termination, providing secure mechanical and electrical connection on printed circuit boards.
Operating voltage rating of 1.2 kV and a temperature range from -55°C to 105°C allows this socket to perform reliably under extreme conditions. The power eye contact system ensures robust current carrying capacity and reduces contact resistance.
The product fully complies with RoHS environmental standards, making it suitable for environmentally conscious manufacturing processes. Its combination of features makes it ideal for use in electronic components, power and connectors assembly, relay sockets, and other industrial electrical applications.
Constructed with Liquid Crystal Polymer housing for high durability and heat resistance. Beryllium Copper Alloy contacts plated with Tin for outstanding electrical performance. Through-hole mount type with solder termination for strong PCB soldering.
Supports operating voltage up to 1.2 kV and temperature range -55°C to 105°C. Vertical orientation with power eye contact system ensures reliable board-to-board connections. Complies with RoHS standards for environmental safety.
Series HPF offering consistent pitch of 5.08 mm for standard soldering applications.
This Samtec HPF Series PCB Socket is widely used in electronics manufacturing, industrial automation, power distribution, and other commercial electrical assembly processes. It provides a reliable solution for engineers and designers needing durable and high-performance connectors.
Explore more PCB Sockets and connectors at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 1.2 kV, making it suitable for high-power applications.
It operates within a temperature range of -55°C to 105°C, allowing for reliable performance in various environmental conditions.
The housing is made from Liquid Crystal Polymer, and the contacts are beryllium copper alloy with tin plating for excellent conductivity.
This socket features 10 contacts arranged in a single row, designed for efficient electrical connections.
It is designed for through-hole mounting with solder termination, ensuring a secure assembly on printed circuit boards.
The contact pitch for this model is 5.08 mm, which is standard for many PCB applications.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
The contacts are arranged in a straight orientation, allowing for vertical board-to-board connections.
It supports both through-hole and surface mount terminations, providing flexibility in PCB design.
This model is suitable for industrial and electronic component applications requiring reliable power connectors.
It features a power eye contact system, which enhances current carrying capacity and reduces contact resistance.
The socket is manufactured in India, ensuring compliance with international standards.
