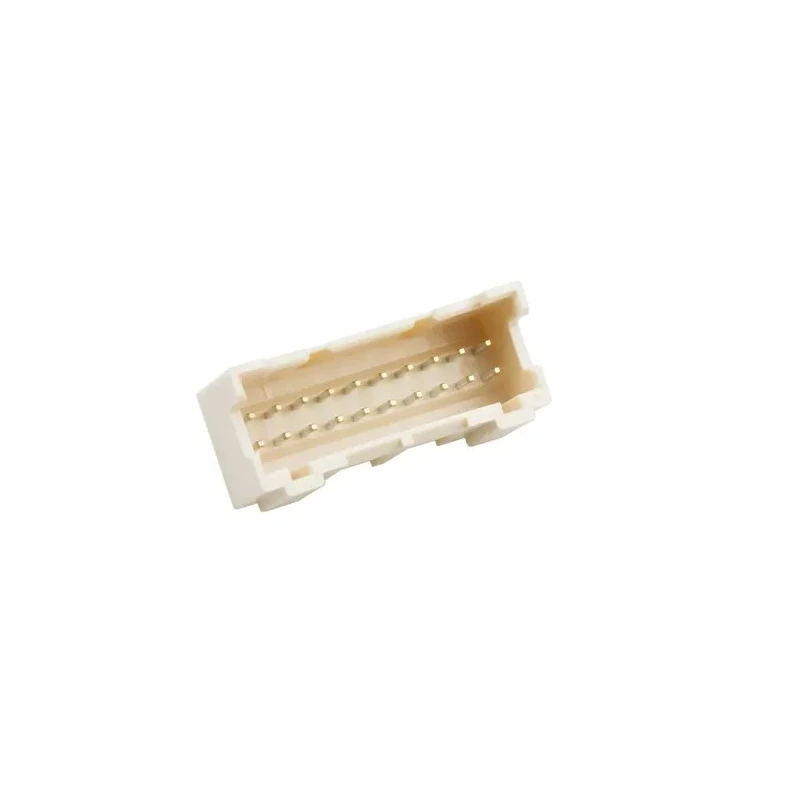

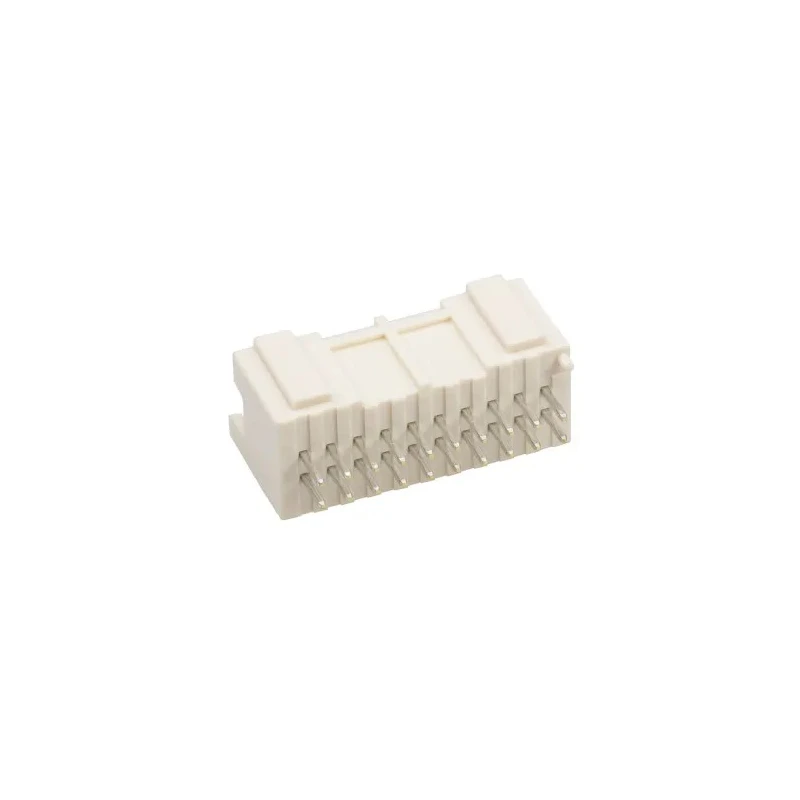

JST PAD Series Straight Through Hole PCB Header 20 Contacts 2 mm Pitch 2 Row Shrouded B20B-PADSS-1F(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PAD Series Straight Through Hole PCB Header 20 Contacts 2 mm Pitch 2 Row Shrouded B20B-PADSS-1F(LF)(SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	JST
Orientation	Straight
Current	3A
Model	B20B-PADSS-1F(LF)(SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	PAD
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	2
Pitch	2mm
Contact Plating	Tin
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

This PCB header is constructed with polyamide housing for durability and stability.
It features a wire-to-board connector system with through-hole mount type for secure installations.
Copper alloy contacts with tin plating ensure reliable electrical conductivity.
The shrouded design includes a secure locking device to prevent accidental disconnection.
Operates reliably within a temperature range from -25°C to 85°C.
Rated for a voltage of 250V and a current capacity of 3A suitable for various electronic applications.
Designed for male contact gender with solder termination type for robust connections.
Dual-row configuration enables high-density PCB mounting in compact spaces.

Product Description

JST B20B-PADSS-1F(LF)(SN) PAD Series Straight Through Hole PCB Header features 20 contacts arranged in two rows with a 2 mm pitch, designed for use in wire-to-board applications. The shrouded header incorporates a secure locking device that prevents accidental disconnections, enhancing connection reliability in demanding environments.

Constructed with a durable polyamide housing and copper alloy contacts plated with tin, this connector provides consistent electrical performance and resistance to environmental factors. Its through-hole mount type ensures stable mechanical attachment to printed circuit boards, suitable for various industrial and electronic assembly needs.

Operating temperature ranges from -25°C to 85°C, making it adaptable to a wide range of operating conditions encountered in industrial electronics, manufacturing equipment, consumer electronics, and communication devices.

The PCB Header supports up to 3 amperes of current at 250 volts, meeting specifications required for standard electronic and electrical projects. Its male contacts and solder termination method facilitate reliable connections that maintain signal integrity and mechanical stability.

The dual-row configuration allows high-density circuit designs, optimizing space on PCBs for compact and efficient layouts. This product is ideal for industrial, laboratory, manufacturing, and electronic assembly applications where secure and durable PCB connections are essential.

This header is part of the PAD series, known for secure locking and polarization features. The shrouded design helps guide insertion and offers protection against misalignment. Easy integration with matching JST receptacle housings designed for 2.0 mm pitch connectors.

Commonly used in high-density applications including industrial electronics, computer peripherals, and communication equipment. Explore a wide range of electronic connectors and components in the Electronics & Electricals category on EnvMart for reliable and quality solutions.
