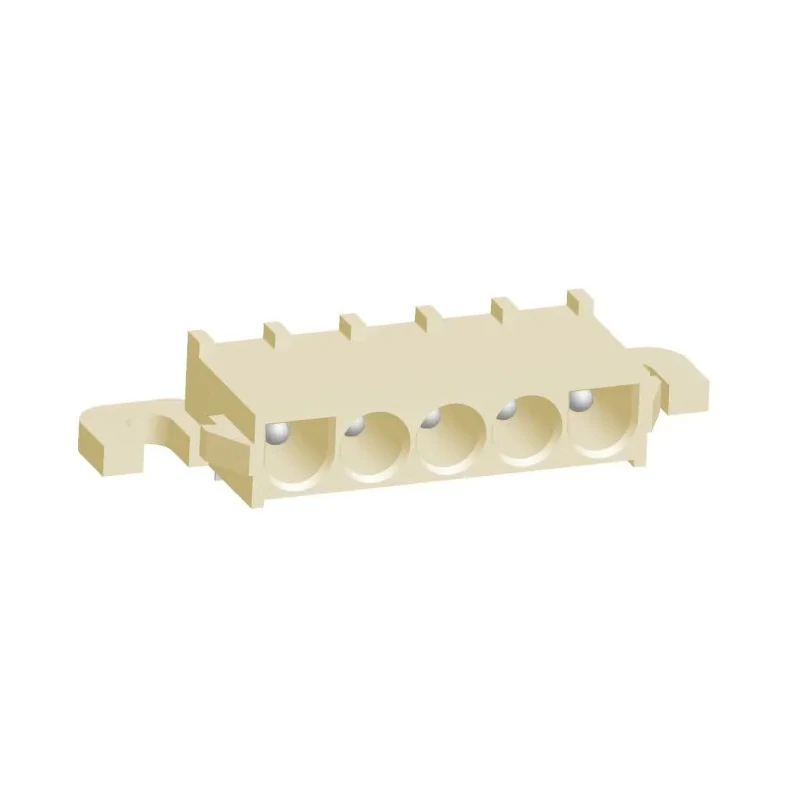

TE Connectivity Universal MATE-N-LOK Series Right Angle Through Hole PCB Header, 5 Contacts, 6.35 mm Pitch, 1 Row 1969808-1

TE Connectivity 1969808-1 Universal MATE-N-LOK Series PCB Header is a high-quality, Glow Wire compliant connector designed for robust and secure electronic applications. It features a right angle through hole mount with 5 male contacts arranged in a single row, spaced at a 6.35 mm pitch. The nylon housing is engineered for excellent electrical insulation and high flammability resistance, meeting IEC 60335-1 Glow Wire test standards and UL 94 V-0 requirements.

Constructed with phosphor bronze contacts plated in tin, this PCB header ensures durable conductivity and longevity in demanding industrial environments. The positive locking latches and polarized housings provide a secure connection, preventing accidental unmating due to vibrations or shocks. The egg-crate design enhances finger protection and safety during handling.

This connector operates reliably in temperatures from 0°C to 105°C and supports current ratings of 19A with a voltage rating of up to 600V. The universal MATE-N-LOK series headers are ideal for PCB and wire-to-board applications across various industries, including household appliances, HVAC equipment, lighting systems, security systems, industrial controls, and networking hardware.

The right angle 1969808-1 model offers a compact form factor for efficient PCB layout and is built to meet stringent industrial safety standards. The product is manufactured in China and supplied new, ensuring dependable performance in electronics assembly and repair.

Features a 6.35 mm pitch and a single row configuration. Constructed with nylon housing material offering robust insulation. Designed with phosphor bronze contacts plated with tin for excellent conductivity. Mount type is through hole with solder termination ensuring durable mounting.

Rated for 19A current and 600V voltage, suitable for demanding applications. Operates reliably between 0°C and 105°C temperature range. Shrouded and polarized design prevents mismating and enhances safety. Complies with Glow Wire test IEC 60335-1 and meets UL 94 V-0 flammability standard.

This TE Connectivity PCB header is extensively used in industrial, commercial, and household electronics for secure and reliable electrical connections. Browse the Electronics Components - PCB Headers category on EnvMart for more compatible products and related connector solutions.
