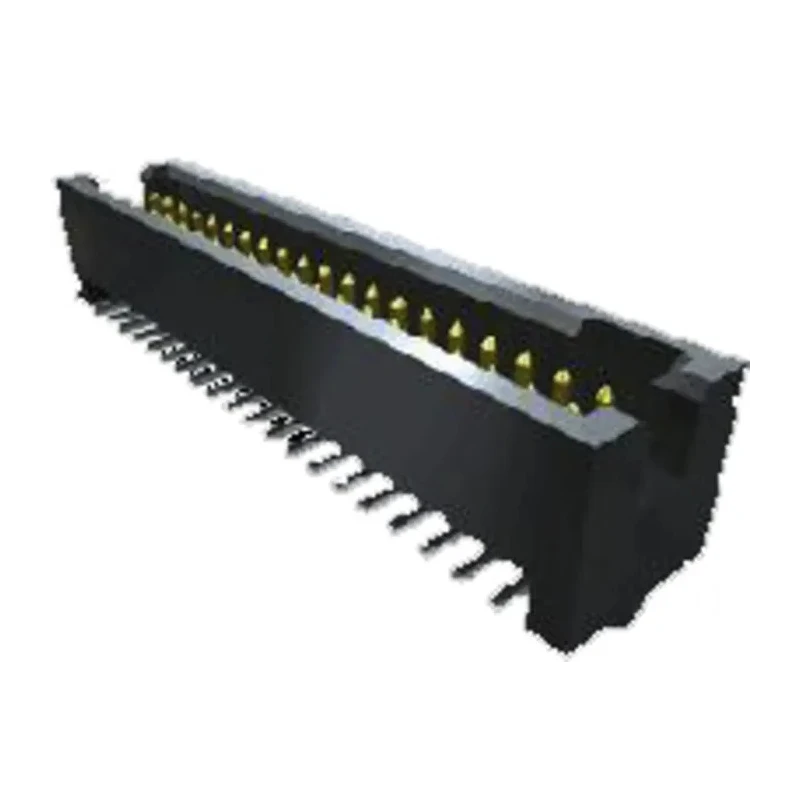

Samtec PCB Header TFM-115-01-L-D-RE1-WT, 30 Contacts, 1.27 mm Pitch, 2 Row, Shrouded, Through Hole, 250V

Free Delivery in India | Lowest Global Shipping Charges

Samtec PCB Header TFM-115-01-L-D-RE1-WT, 30 Contacts, 1.27 mm Pitch, 2 Row, Shrouded, Through Hole, 250V

Name: Samtec PCB Header TFM-115-01-L-D-RE1-WT, 30 Contacts, 1.27 mm Pitch, 2 Row, Shrouded, Through Hole, 250V
Brand: Samtec
SKU: 99270
Price: 6.15 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Samtec
Orientation	Straight
Current	3.2A
Model	TFM-115-01-L-D-RE1-WT
Mount Type	Through Hole
Special Features	Screw down, weld tab and solder nail options available for most rugged requirements
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	TFM
Termination	Through-hole, surface mount
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	30
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Contact System	.018" (0.46 mm) diameter post

Key Features

The header features a robust Liquid Crystal Polymer housing for durability.
It supports a current rating of 3.2A and voltage up to 250V.
Contacts are made from phosphor bronze with gold plating for excellent conductivity.
Designed for through-hole mounting and solder termination for secure assembly.
Shrouded connector design enables blind mating and enhanced mechanical protection.
Suitable for high reliability applications with operating temperature range from -55°C to 125°C.
The header has a straight orientation with two rows and 1.27 mm row pitch.
Includes options for screw down, weld tab, and solder nail for rugged use cases.

Product Description

Samtec TFM-115-01-L-D-RE1-WT is a high-quality PCB header designed for precise and reliable wire-to-board electrical connections. It features 30 male contacts arranged in 2 rows with a pitch of 1.27 mm. The shrouded housing made of durable Liquid Crystal Polymer provides mechanical protection and enables blind mating, making this header suitable for demanding industrial and electronic applications.

The contact system utilizes phosphor bronze with gold plating to ensure superior conductivity and corrosion resistance. It is rated for a current of 3.2A and voltage up to 250V, operating reliably over a temperature range from -55°C to 125°C. Termination is through-hole with solder, ensuring a strong mechanical and electrical joint on the PCB.

This PCB header supports applications requiring ruggedness through options such as screw down, weld tab, and solder nail terminations. Its straight orientation and compact 1.27 mm pitch design offer flexibility for various circuit board layouts. The TFM-115-01-L-D-RE1-WT is compatible with high-reliability Tiger Eye™ contact sockets and cable assemblies.

Typical industrial, electronic, communication, and testing equipment incorporate this header for stable, high-cycle mating performance. It is ideal for manufacturing, HVAC, laboratory instrumentation, and commercial electronics.

The header has 30 contacts arranged in 2 rows. A robust Liquid Crystal Polymer shrouded housing provides durability. Contact material is phosphor bronze with gold plating for conductivity and protection. Current rating of 3.2A and voltage rating up to 250V.

Operating temperature range from -55°C to 125°C ensures application versatility. Through-hole solder termination provides secure mounting on PCB. Straight orientation with 1.27 mm pitch and 1.27 mm row pitch. Includes options for screw down, weld tab, and solder nail to meet rugged application needs.

Compatible with Tiger Eye™ contact sockets and cable assemblies for flexible mating solutions. Explore more in our Electronics Components PCB Headers category on EnvMart for compatible and complementary products.
