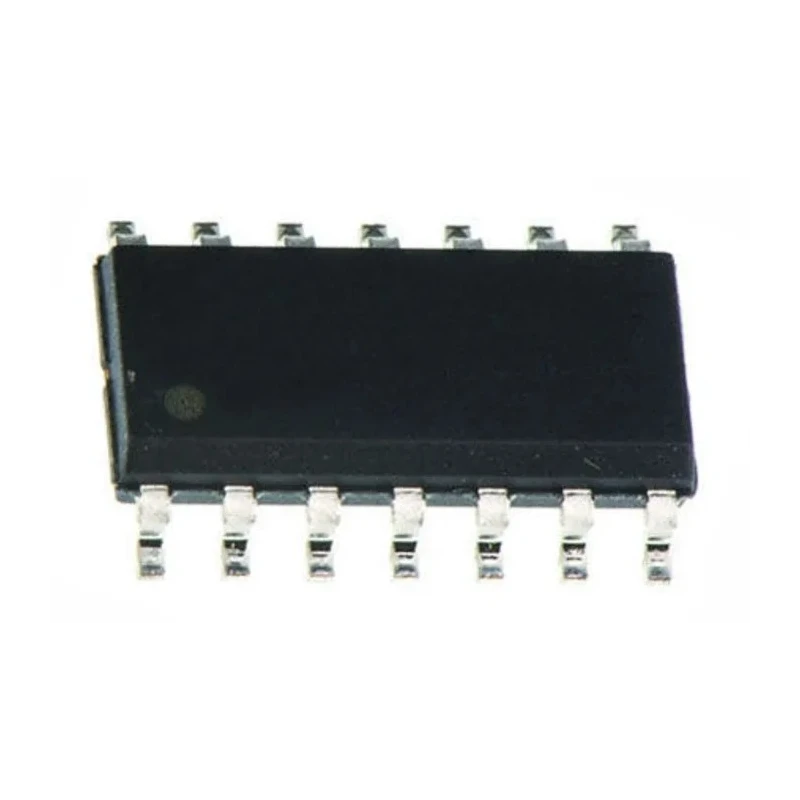

Nexperia Analogue Switch 4 CMOS SPST 14-Pin SO-16 HEF4066BT,653
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.45mm |
| Length | 8.75mm |
| Model | HEF4066BT,653 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS |
| Series | HEF4066B |
| Configuration | SPST |
| Maximum Operating Temperature | 125°C |
| Package Type | SO-16 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 15V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 3V |
| Wide operating voltage range | 3 to 18V |
| Maximum On State Resistance | 2.5kΩ |
Key Features
- This device belongs to the HEF4066B series with CMOS logic family technology.
- It offers a wide operating voltage range from 3 to 18 volts.
- The package is surface mount type SO-16 with a pin count of 14 pins.
- Maximum on state resistance is 2.5 kΩ ensuring minimal signal distortion.
- Operating temperature range is from -40°C to +125°C for broad environmental compatibility.
- The device length is 8.75 mm, width 4 mm, and height 1.45 mm allowing compact PCB designs.
- It is RoHS compliant, meeting modern environmental standards.
- Configured as single-pole single-throw (SPST) switches, suitable for multiplexing and signal routing.
Product Description
Nexperia HEF4066BT,653 Analogue Switch integrates 4 CMOS SPST switches within a 14-Pin SO-16 surface mount package. Operating within a wide voltage range of 3 to 18V, this device meets various industrial and electronic application requirements.
The device belongs to the HEF4066B series and is designed using CMOS logic family technology, ensuring low power consumption and high noise immunity. Its maximum on state resistance of 2.5 kΩ ensures effective analogue signal switching with minimal loss.
The compact dimensions, with length 8.75 mm, width 4 mm, and height 1.45 mm, facilitate easy integration into PCB layouts with constrained spaces. It provides a wide operating temperature range from -40°C to 125°C, making it suitable for harsh environmental conditions.
This surface mount SO-16 package component is RoHS compliant, supporting environmental safety standards. Its typical applications include multiplexers, signal routing, and electronic switching in industrial, laboratory, and consumer electronics.
This device belongs to the HEF4066B series with CMOS logic family technology. Wide operating voltage range of 3 to 18 volts enhances application flexibility. Surface mount SO-16 14-pin package allows compact installation.
Maximum on state resistance of 2.5 kΩ ensures signal integrity. Operating temperature range of -40°C to 125°C supports harsh conditions. Compact physical dimensions aid in PCB space savings. RoHS compliant meeting environmental standards.
Configuration as 4 single-pole single-throw switches. CMOS output type compatible with modern digital electronics.
This product is ideal for use in semiconductor, industrial electronics, and signal switching applications. For more options and a wider selection of semiconductor components, explore the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Nexperia HEF4066BT,653 operates within a voltage range of 3 to 18 volts.
The maximum on state resistance of this analogue switch is 2.5 kΩ, which helps ensure minimal signal distortion.
This model has a length of 8.75 mm, a width of 4 mm, and a height of 1.45 mm, making it suitable for compact PCB designs.
The operating temperature range of the HEF4066BT,653 is from -40°C to +125°C, allowing it to function in harsh environmental conditions.
The HEF4066BT,653 integrates 4 single-pole single-throw (SPST) switches.
It comes in a surface mount SO-16 package with a pin count of 14.
Yes, the HEF4066BT,653 is RoHS compliant, meeting modern environmental safety standards.
This device belongs to the CMOS logic family technology, ensuring low power consumption and high noise immunity.
This analogue switch is suitable for applications such as multiplexing, signal routing, and electronic switching in various electronic devices.
The minimum supply voltage for the HEF4066BT,653 is 3V.
The maximum operating temperature for the HEF4066BT,653 is 125°C.
This model is configured as single-pole single-throw (SPST) switches, making it versatile for various switching applications.
