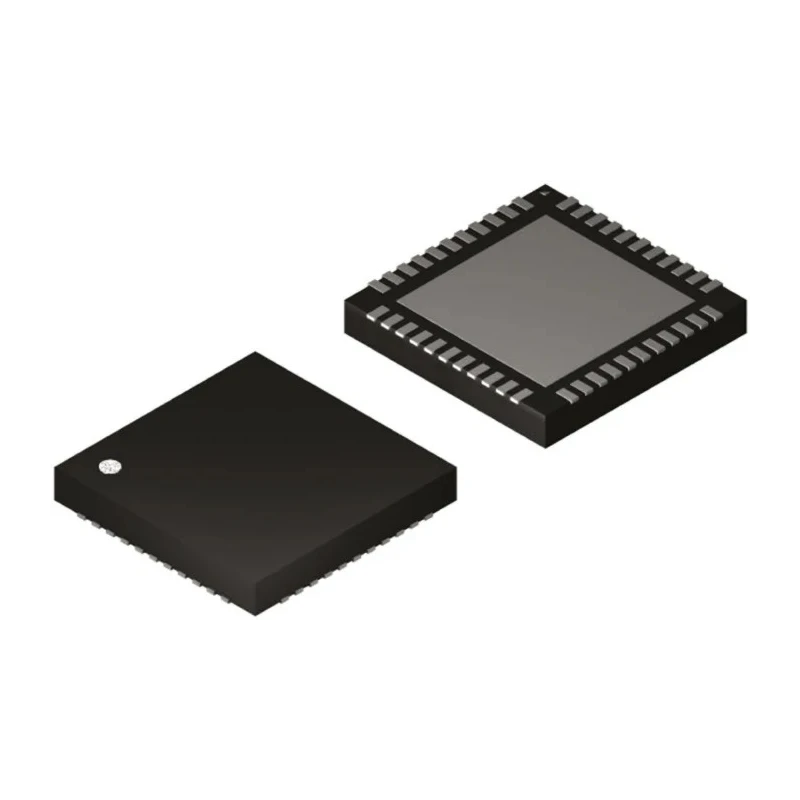

Microchip dsPIC33FJ64MC804-I/PT 16-bit Digital Signal Processor 40 MHz 64kB FLASH 44-Pin TQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 10mm |
| Model | dsPIC33FJ64MC804-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Core | dsPIC33F |
| Series | dsPIC33FJ64MC |
| Maximum Operating Temperature | 85°C |
| Number Of Cores | 1 |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| ADC Resolution | 12bit |
| Timer Resolution | 32bit |
| Standards/Approvals | IEC 60730, VDE |
| Pin Count | 44 |
| Automotive Standard | AEC-Q100 Rev G Grade 0 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3.3V |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 40MHz |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 40MIPS |
| Number of PWM Units | 4 |
| PWM Resolution | 25ns |
| ADC Channels | 9 |
| Number of PWM Channels | 8 |
Key Features
- Operates at a maximum clock frequency of 40 MHz using a dsPIC33F core.
- Features 16-bit data bus width with 16kB of RAM for efficient processing.
- Includes 1 ADC with 9 channels and 12-bit resolution.
- Equipped with 8 PWM channels and 4 PWM units supporting 25ns resolution.
- Operating voltage ranges between 3.3V to 3.6V supporting surface mount type.
- Compact dimensions of 10 mm length, 10 mm width, and 1 mm height ensure easy PCB integration.
- Designed for automotive-grade applications meeting AEC-Q100 Rev G Grade 0 standards.
- Wide operating temperature range from -40°C to 85°C for industrial environments.
Product Description
Microchip dsPIC33FJ64MC804-I/PT is a high-performance 16-bit digital signal processor designed for applications requiring fast execution of digital filter algorithms and precision digital control.
It combines the performance of a DSP with the simplicity of a microcontroller (MCU) and is capable of delivering 40 MIPS using the dsPIC33F core architecture. This DSP features a 16-bit data bus, 64kB of FLASH program memory, and 16kB of RAM, enabling efficient program execution and ample data storage.
The device supports a maximum clock frequency of 40 MHz and operates within a supply voltage range of 3.3V to 3.6V, optimized for surface mount technology using a 44-pin TQFP package.
It includes essential peripherals such as 1 ADC with 9 input channels and 12-bit resolution for precise analog-to-digital conversion, 8 PWM channels and 4 PWM units offering 25ns resolution for motor control or power conversion applications, and 5 timers with 32-bit resolution.
Its automotive-grade qualification (AEC-Q100 Rev G Grade 0) ensures suitability for harsh environments, supported by a wide operating temperature range from -40°C to 85°C and compliance with IEC 60730 and VDE standards.
Maximum clock frequency of 40 MHz delivering 40 MIPS performance. 16-bit data bus with 64kB FLASH program and 16kB RAM memory. One 12-bit ADC with 9 channels for signal acquisition. Multiple PWM units and timers for control applications.
Automotive grade compliance with wide temperature tolerance. Compact 44-pin TQFP package with 10×10×1 mm dimensions.
This dsPIC33FJ64MC804-I/PT digital signal processor is ideal for industrial, automotive, motor control, digital audio, speech processing, and power conversion applications. Its robust design and extensive peripheral set cater to high performance and reliability requirements.
Discover more Digital Signal Processors and microcontroller solutions by exploring the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the dsPIC33FJ64MC804-I/PT is 40 MHz.
It operates within a supply voltage range of 3.3V to 3.6V.
This model features 64kB of FLASH program memory.
The device includes one ADC with a resolution of 12 bits.
It supports 8 PWM channels.
The dimensions are 10 mm in length, 10 mm in width, and 1 mm in height.
It has a wide operating temperature range from -40°C to 85°C.
This unit includes 5 timers with 32-bit resolution.
It meets the AEC-Q100 Rev G Grade 0 automotive standard.
The core architecture is based on the dsPIC33F core.
It is packaged in a 44-pin TQFP (Thin Quad Flat Package).
It complies with IEC 60730 and VDE standards.
