| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Housing | Polyphenylene Oxide |
| Contact Material | Phosphor Bronze |
| Series | 90119 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | C-Grid III Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
| Insulation Material Headers | 15% Glass-filled Polyester (PBT) |
| Header Pin Size | 0.64 square mm |
| Recommended PCB Hole Diameter | 1mm |

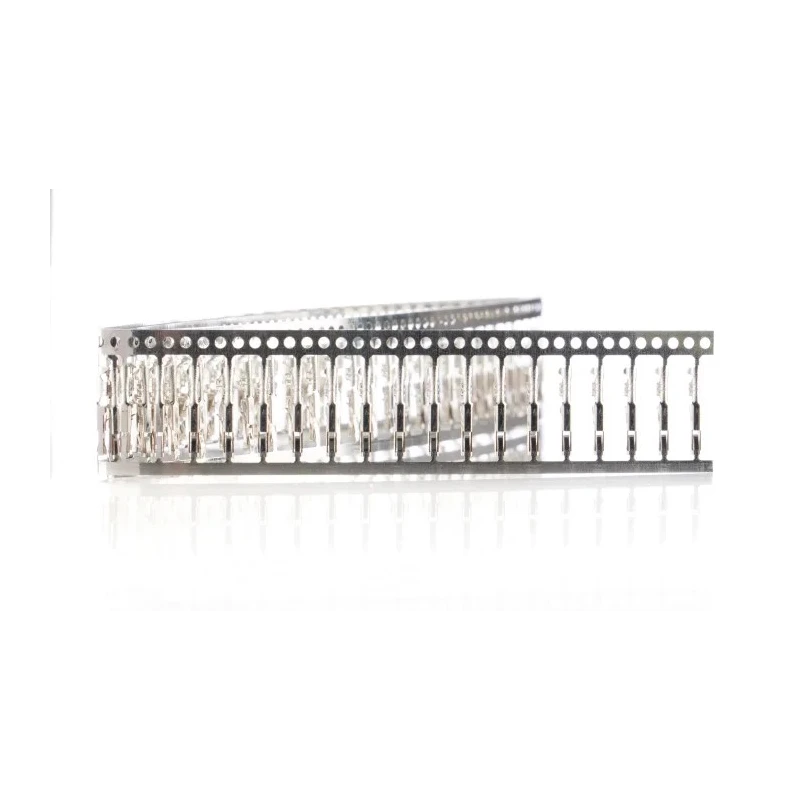

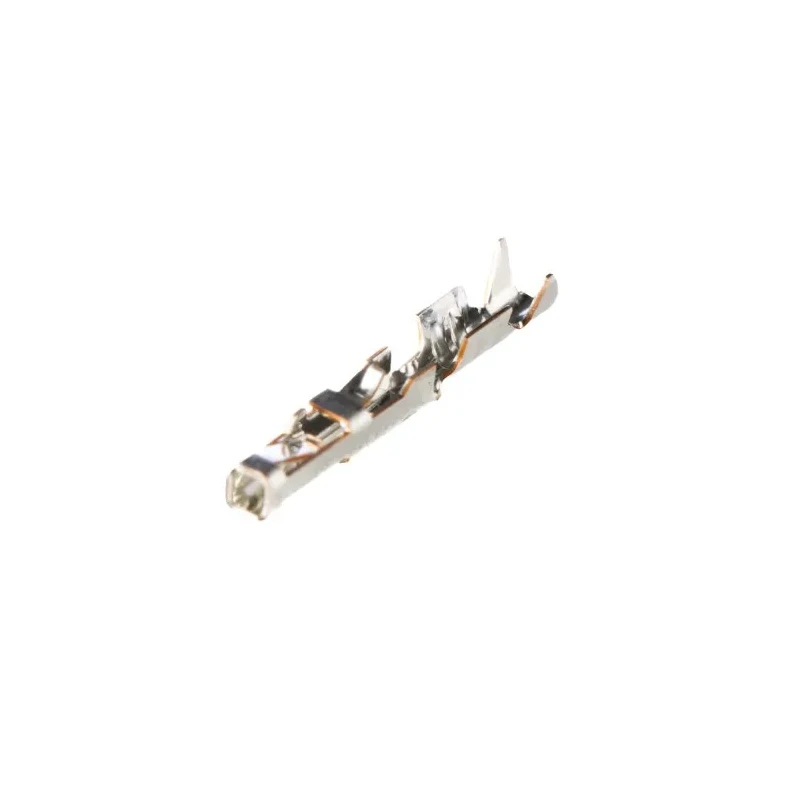

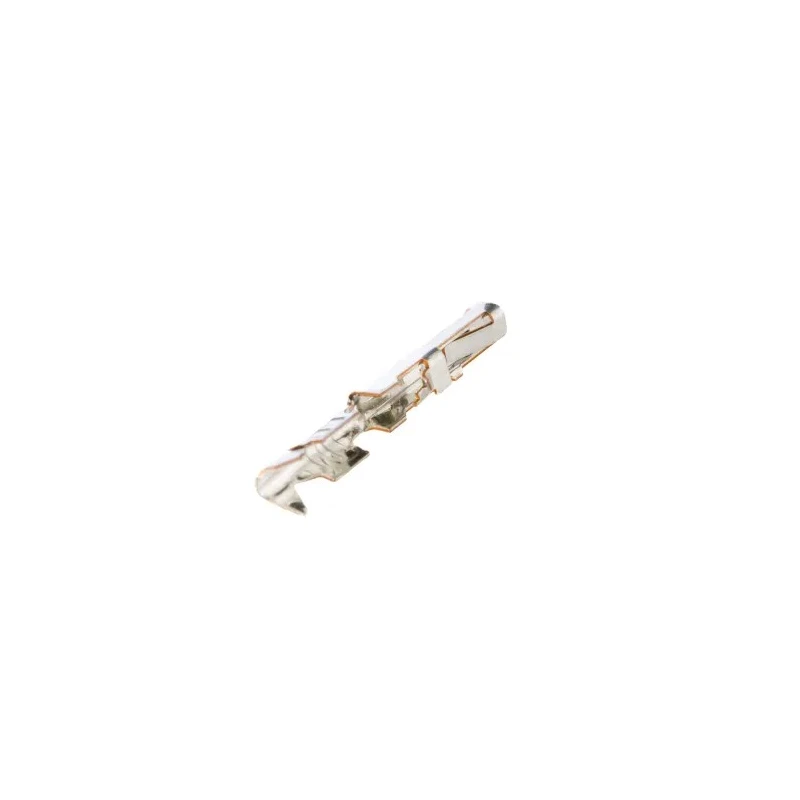

Molex 90119-0109 Female Crimp Terminal is engineered for precise and secure attachment to conductors, suitable for use with 24 AWG to 22 AWG wires. This Crimp Terminal utilizes tin-plated phosphor bronze contacts ensuring high conductivity and corrosion resistance, ideal for a wide range of electronic and electrical applications.
The terminal is part of the C-Grid III series, designed for C-Grid III connector housings, offering a robust box design with a uniform locking mechanism that accommodates various connector housing styles. Rated for a maximum current of 3A and operating temperatures between -55°C and 105°C, it is suitable for challenging industrial environments.
Weighing only 0.073g per piece, these terminals reduce mechanical stress on PCBs while maintaining excellent electrical performance. The crimp technology ensures gas-tight and durable connections without requiring heat application, making installation quick and reliable.
This product finds extensive use in automated assembly lines, pharmaceutical manufacturing facilities, and breweries, where dependable electrical connections are critical. The package includes 100 pieces, providing a sufficient quantity for large scale production or maintenance tasks.
Secure crimp termination without heat application. Wide wire range compatibility from 24 AWG to 22 AWG. Tin plated phosphor bronze contact materials for durability. Maximum current rating: 3A and voltage up to 350V AC. Lightweight design with only 0.073g per terminal.
Versatile box design with uniform locking for different housings. Perfect for industrial automation and manufacturing environments. Pack contains 100 terminals for extended use.
This product is recommended for electrical engineering, electronics manufacturing, laboratory applications, and automation sectors. Explore the Molex series for more reliable connectors and terminals at EnvMart for your electronic component needs.
