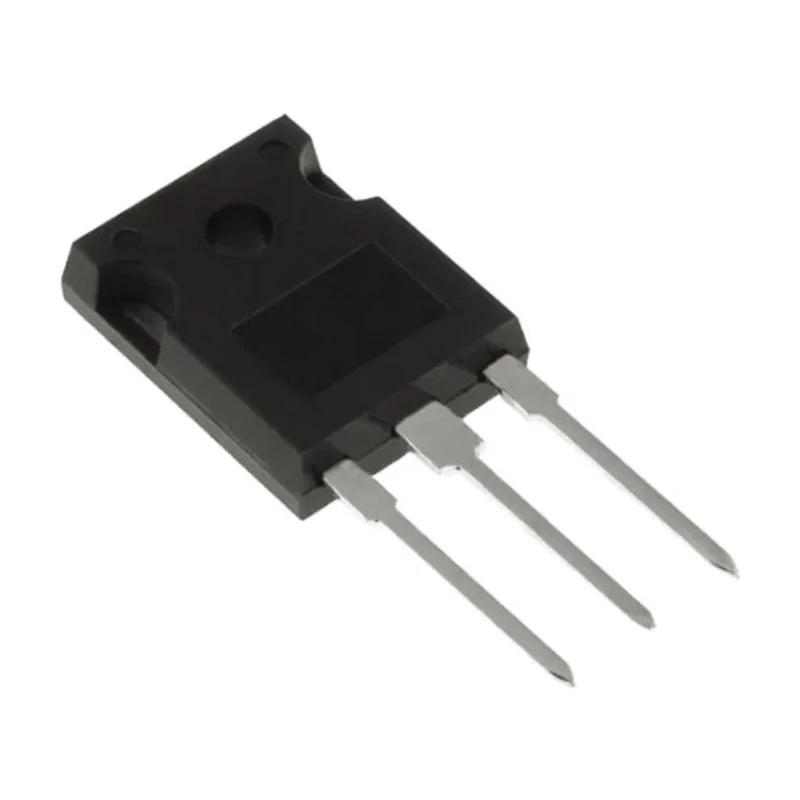

IXYS Thyristor (SCR) 1200 V 70 A 80 mA 700 A 1.65 V TO-247 CLA50E1200HB
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Model | CLA50E1200HB |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | UL 94V-0, IEC 60747, RoHS |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 70A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 1200V |
| Surge Current Rating | 700A |
| Maximum Gate Trigger Current Igt | 80mA |
| Maximum Holding Current Ih | 100mA |
| Maximum Gate Trigger Voltage Vgt | 1.6V |
| Peak On-State Voltage | 1.65V |
Key Features
- Features a robust TO-247 package for reliable through-hole mounting.
- Capable of handling repetitive peak reverse voltage of 1200 V.
- Supports surge current rating up to 700 A for transient conditions.
- Maximum gate trigger current of 80 mA ensures stable switching.
- Operating temperature range from -40°C to 125°C for diverse environments.
- Conforms to UL 94V-0, IEC 60747, and RoHS standards for safety and quality.
- Designed for industrial uses including lighting, heating control, and power inverters.
- Three-pin configuration for straightforward circuit integration.
Product Description
IXYS CLA50E1200HB is a high-performance Thyristor (Silicon Controlled Rectifier) designed to operate at 1200 V and 70 A average on-state current. This SCR is housed in a TO-247 package and features a peak on-state voltage of 1.65 V, making it ideal for efficient power control applications.
With a surge current rating of 700 A and a maximum gate trigger current of 80 mA, this component reliably switches high currents in demanding industrial environments. It supports a broad temperature range from -40°C to 125°C, ensuring stable operation in harsh conditions.
The device uses a three-pin through-hole mounting design, facilitating easy integration into printed circuit boards. It complies with key industry standards including UL 94V-0, IEC 60747, and RoHS, underscoring its safety and environmental friendliness.
This Thyristor is suitable for numerous industrial and commercial applications such as AC and DC motor control, lighting and heating regulation, power inverters, battery chargers, welders, and temperature or speed control circuitry.
Robust TO-247 encapsulation ensures durability and thermal management. High surge current capacity supports transient overload conditions. Low trigger current and voltage enable precise control. Wide operational temperature range accommodates diverse industrial processes.
Compliance with recognized safety and environmental standards. Reliable switching for power electronics and inverter circuits. Three-pin through-hole mounting for ease of installation. Applicable in battery chargers, welders, and plating equipment.
Explore the broad catalog of IXYS semiconductor components on EnvMart to find reliable and efficient solutions for your power electronic designs.
Explore more products in our Thyristors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this thyristor is 125°C.
This model has a surge current rating of 700 A, which allows it to handle transient conditions effectively.
The repetitive peak reverse voltage rating for this thyristor is 1200 V.
It features a three-pin configuration, making it suitable for straightforward circuit integration.
The maximum gate trigger current for this SCR is 80 mA, ensuring stable switching performance.
This thyristor uses a through-hole mounting type, which facilitates easy installation on printed circuit boards.
It conforms to UL 94V-0, IEC 60747, and RoHS standards, ensuring safety and environmental compliance.
The minimum operating temperature for this thyristor is -40°C, allowing it to function in diverse environments.
The peak on-state voltage of this model is 1.65 V, which is important for efficient power control applications.
This thyristor is suitable for applications such as AC and DC motor control, lighting regulation, power inverters, and battery chargers.
The rated average on-state current for this thyristor is 70 A, making it capable of handling significant loads.
The country of origin for this product is India.
