Vishay Thyristor SCR 1200 V Repetitive Peak Reverse Voltage 20 A Rated Average On-State Current VS-30TPS12-M3

Vishay VS-30TPS12-M3 Thyristor SCR is a high-performance discrete semiconductor device designed for phase control applications requiring robust switching characteristics. It offers a repetitive peak reverse voltage rating of 1200 V and a rated average on-state current of 20 A, making it suitable for demanding industrial and electronic circuits.

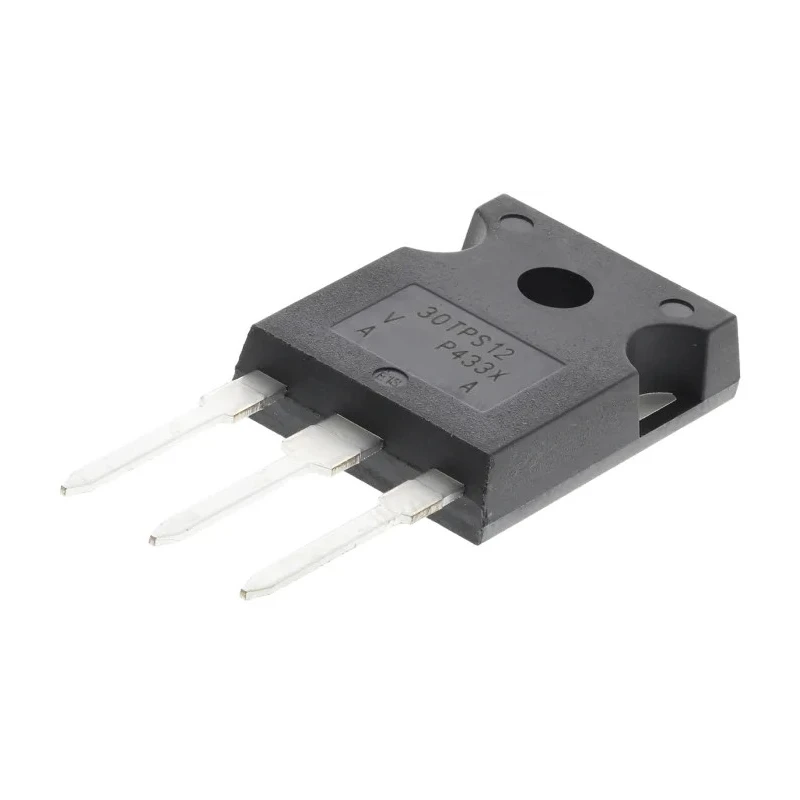

Encapsulated in a TO-247 package, the device supports through-hole mounting facilitating ease of integration into various assemblies. Its surge current rating of 300 A enables it to withstand transient overloads common in welding equipment, battery chargers, and regulated power supplies. The maximum gate trigger current is 45 mA with a trigger voltage of 2 V, providing reliable switching performance.

Operating temperature ranges from -40°C to 125°C ensure stable operation in harsh environments. The device's 3-pin configuration is optimized for efficient conduction with a low peak on-state voltage of 1.3 V, enhancing energy efficiency. The maximum holding current of 100 mA maintains the conduction state post trigger. Its repetitive peak off-state current of 0.5 mA minimizes leakage current when the device is off.

This thyristor does not conform to automotive standards, targeting industrial, laboratory, HVAC, manufacturing, and electronic equipment sectors where robust, reliable semiconductor switches are essential. Applications include phase control, speed control circuits, and other AC/DC switching scenarios demanding durability and precision.

Features a TO-247 package type suitable for through-hole mounting. Has a maximum gate trigger current of 45 mA and a maximum gate trigger voltage of 2 V. Surge current rating is 300 A for handling transient currents. Operates reliably between -40°C and 125°C maximum operating temperature.

Contains 3 pins and is intended for phase control applications. Peak on-state voltage is 1.3 V, enabling efficient conduction. Maximum holding current is 100 mA to maintain conduction after triggering. Designed without automotive certification, suitable for general industrial use.

Repetitive peak off-state current is 0.5 mA ensuring low leakage when off. Choose Vishay Thyristors for precise control and durability in your power electronics projects. Explore more semiconductors and discrete devices at EnvMart.
