Texas Instruments Schmitt Trigger Input CMOS Inverter 6 Elements 14-Pin TSSOP SN74AC14PWR

Texas Instruments SN74AC14PWR is a CMOS inverter with Schmitt Trigger input, featuring 6 inverter elements housed in a 14-pin TSSOP surface mount package. This logic IC belongs to the SN74AC14 series, designed for advanced CMOS logic applications where signal conditioning and noise immunity are required.

Operating voltage ranges from 1.5 V to 5.5 V nominal with a maximum supply voltage tolerating up to 6 V, permitting flexible integration in various electronic designs. The device ensures rapid signal processing with a maximum propagation delay of 15 ns at capacitive load, making it suitable for timing-sensitive circuits.

The Schmitt Trigger input enhances noise rejection and signal integrity, critical in industrial environments with electrical interference. With maximum output current ratings of -24 mA for high-level signals and 24 mA for low-level signals, the SN74AC14PWR provides reliable driving capability for diverse loads.

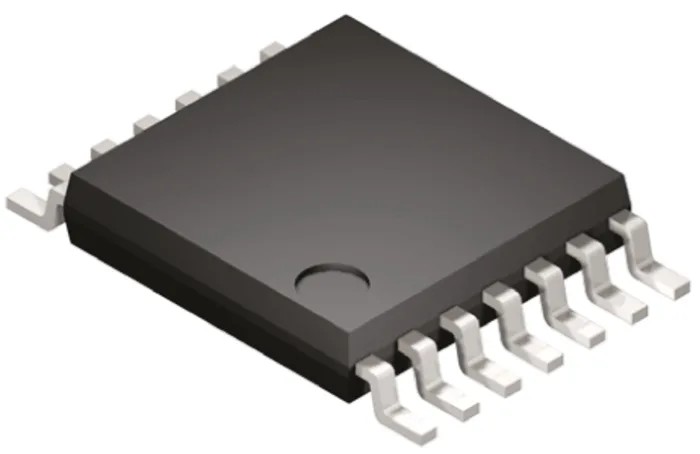

Thermally rated to operate between -40°C and 85°C, this inverter IC meets demand for robust operation in harsh environments including industrial automation and automotive systems. The compact TSSOP-14 package has a length of 5 mm, width of 4.4 mm, and height of 1.15 mm, ensuring minimal PCB space utilization while facilitating automated surface mount assembly processes.

Compatible with input and output CMOS logic families, this device integrates seamlessly into modern electronic circuit designs requiring signal inversion and waveform reshaping. It finds applications in industrial equipment, consumer electronics, and embedded systems.

This device integrates 6 inverter elements in a 14-pin TSSOP package. Supports Schmitt Trigger input type for improved noise immunity. Operates within a voltage range of 1.5 to 6 V for flexible power configurations. Maximum propagation delay time of 15 ns enables fast switching.

Operating temperature range from -40°C to 85°C supports industrial applications. Surface mount package enhances PCB design and assembly efficiency. Maximum output current ratings are -24 mA (high level) and 24 mA (low level).

Compact package size (5 mm × 4.4 mm × 1.15 mm) saves space on circuit boards. Compatible with CMOS input and output logic families. Ideal for industrial automation, automotive electronics, and general purpose logic inversion tasks.
