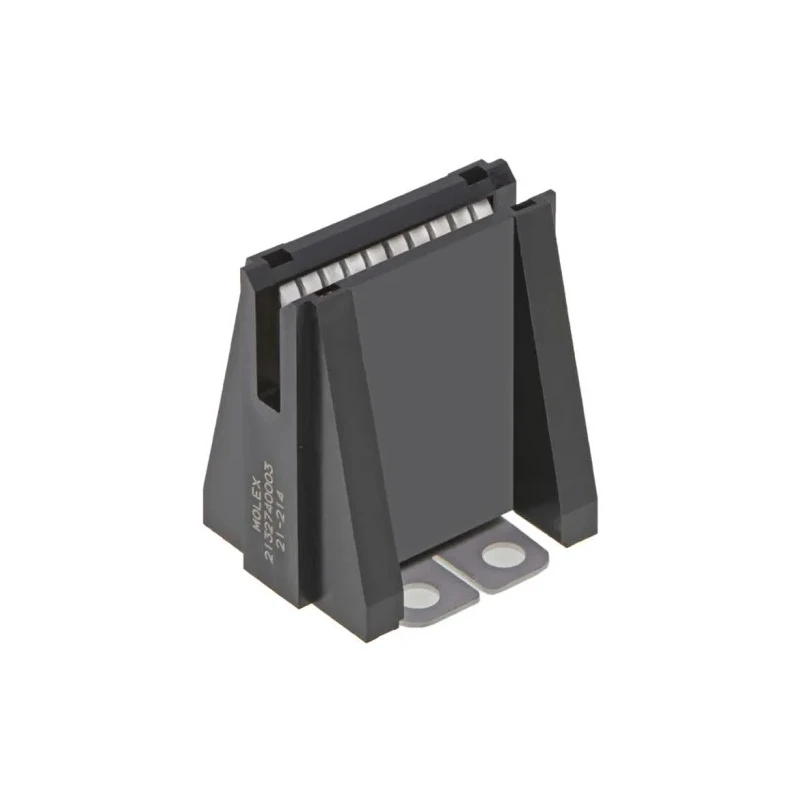

Molex PowerPlane Series Vertical Surface PCB Socket 1-Contact 2 Row Screw 600V 315A 213274-0003
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 315A |
| Mount Type | Surface |
| Housing Material | Polyester |
| Contact Material | Copper Alloy |
| Series | PowerPlane |
| Termination Type | Screw |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | CHINA RoHS, EU RoHS |
| Contact Plating | Silver |
| Number of Contacts | 1 |
| Contact Gender | Male |
| Connector System | Wire-to-Board |
Key Features
- This PCB socket features a vertical orientation with 2 rows and 1 contact.
- It supports a maximum current of 315A and voltage rating of 600V.
- The termination is screw type ensuring secure connections.
- Constructed with a polyester housing and copper alloy contacts plated with silver for low resistance.
- Operates reliably between -40°C and 125°C minimum and maximum temperatures.
- Designed for wire-to-board connector system applications.
- It is dimensionally compatible with competitor connectors for flexible integration.
- This product complies with CHINA RoHS and EU RoHS standards ensuring environmental safety.
Product Description
Molex 213274-0003 PowerPlane Series Vertical Surface PCB Socket is a high-current, reliable connector designed for electronic components requiring 600V AC voltage and peak current of 315A. Its vertical mount and surface type design make it suitable for wire-to-board connections in electronics manufacturing and assembly.
The connector features a screw termination which provides secure electrical connections essential for industrial and commercial applications. Its polyester housing ensures durability and resistance to environmental factors.
Contacts are made from high-conductivity copper alloy and are silver-plated to minimize electrical resistance and voltage drop, improving overall circuit efficiency. Operating temperature ranges from -40°C to 125°C make it suitable for diverse environmental conditions.
This connector is dimensionally compatible with competitive products, facilitating easy replacement or alternative sourcing in design and repair workflows. Certified to meet CHINA RoHS and EU RoHS standards, this PowerPlane series socket supports compliance with environmental regulations critical to electronic product manufacturing.
This PCB socket features a vertical orientation with 2 rows and 1 contact. It supports a maximum current of 315A and voltage rating of 600V. The termination is screw type ensuring secure connections. Constructed with a polyester housing and copper alloy contacts plated with silver for low resistance.
Operates reliably between -40°C and 125°C minimum and maximum temperatures. Designed for wire-to-board connector system applications. Dimensionally compatible with competitor connectors for versatile use. Complies with CHINA RoHS and EU RoHS environmental standards.
This product is ideal for industrial, manufacturing, laboratory, and electronic device assembly environments requiring robust power connection solutions. Explore more PCB Sockets and connectors at EnvMart for comprehensive sourcing options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a maximum current of 315A.
The voltage rating for this socket is 600V.
It features a screw termination type, ensuring secure electrical connections.
The operating temperature range for this socket is from -40°C to 125°C.
The housing is made of polyester, while the contacts are constructed from copper alloy and plated with silver.
This model has 1 contact.
The socket features a vertical orientation with 2 rows.
Yes, it complies with CHINA RoHS and EU RoHS standards.
It is designed for wire-to-board connector system applications.
Yes, it is dimensionally compatible with competitor connectors, allowing for flexible integration.
The country of origin for this socket is China.
The contact gender for this model is male.
