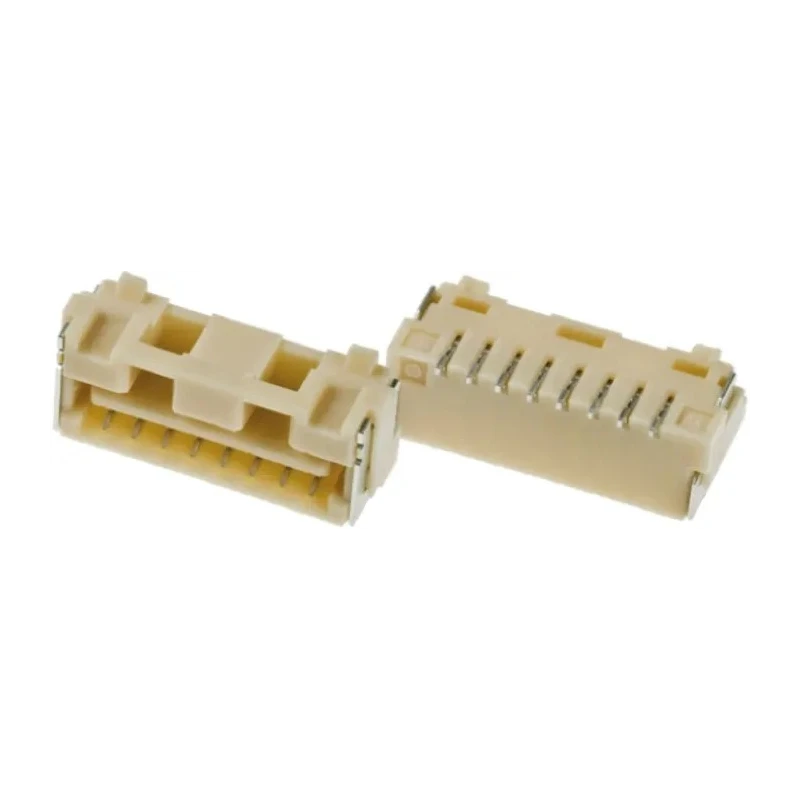

Molex CLIK-Mate Series Straight Surface PCB Socket, 8-Contact, 1 Row, 1.25 mm Pitch, 12A, 50V, Thermoplastic 502382-0870

Molex 502382-0870 CLIK-Mate Series straight surface PCB socket is an 8-contact wire-to-board connector with a 1.25 mm pitch, engineered for surface mount technology (SMT) applications requiring compact, secure, and reliable connections.

This PCB socket features a robust thermoplastic housing with female copper contacts plated in tin, delivering excellent electrical conductivity and lasting performance. Rated for 12A current and 50V voltage, it serves well in various electronic devices demanding signal integrity and power handling.

The connector's design incorporates a unique tuning-fork terminal concept that results in low insertion force and secure mating contact, combined with a positive locking mechanism ensuring stable engagement during operation. It operates effectively in environments ranging from -40°C to 105°C, covering standard industrial temperature requirements.

This CLiK-Mate connector series achieves approximately 60% space savings compared to similar dual-lock connectors with a 2.00 mm pitch, enabling denser circuit layouts and reducing PCB real estate. Its straight orientation and single row of 8 contacts make it well suited for compact electronic assemblies such as LCD TVs, where higher pin counts and signal density are essential.

The connector's surface mount design supports direct vacuum pick-and-place assembly without the need for capton tape, streamlining manufacturing processes. Features such as superior terminal polarization prevent incorrect terminal insertion, enhancing assembly reliability.

Current rating of 12A and voltage rating of 50V ensure dependable electrical performance. Thermoplastic housing and tin-plated copper contacts offer mechanical and electrical robustness. Single-row, 8-contact configuration with 1.25 mm pitch for dense board mounting.

Operating temperature range from -40°C to 105°C suitable for diverse applications. Positive lock design secures mating and prevents accidental disconnection. Space-saving design reduces PCB footprint compared to similar products.

Ease of assembly with SMT compatibility and vacuum pick-and-place support.

This PCB Socket is ideal for industrial, electronic manufacturing, consumer electronics, and telecommunications applications requiring reliable wire-to-board connection with minimal space consumption. It supports signal line transmission while ensuring mechanical stability in demanding environments.
