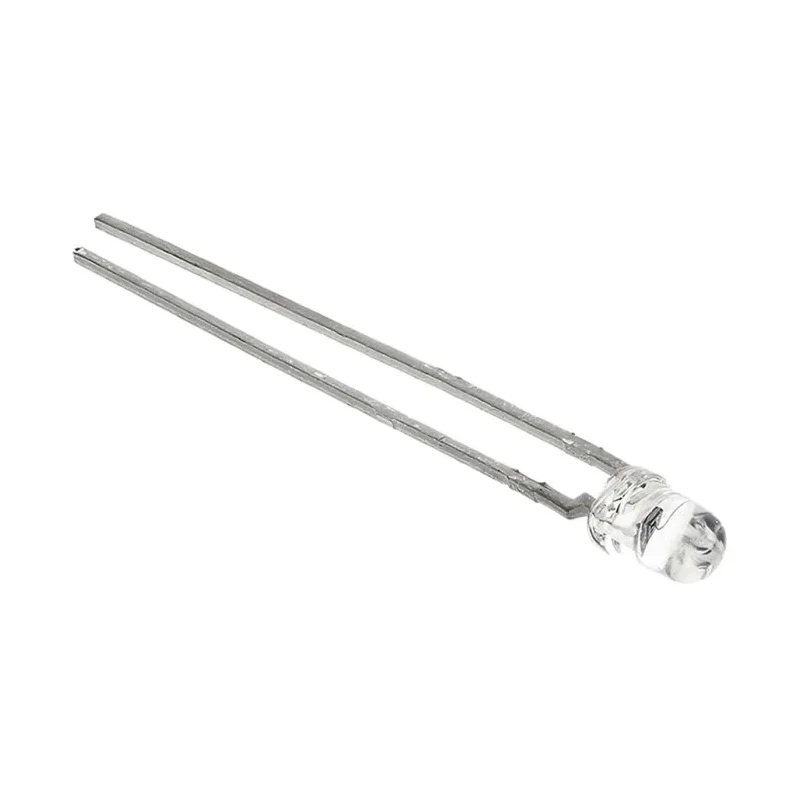

ams OSRAM Radial T1 50 ° Infrared Visible Light Phototransistor Through Hole 2-Pin 3 mm Package SFH 310-2/3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.9mm |
| Brand | ams OSRAM |
| Height | 4.8mm |
| Length | 3.4mm |
| Model | SFH 310-2/3 |
| Width | 3.4mm |
| Mount Type | Through Hole |
| Series | Radial T1 |
| Maximum Operating Temperature | 100°C |
| Package Type | 3 mm (T-1) |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 12μs |
| Peak Wavelength | 880nm |
| Spectrums Detected | Infrared, Visible Light |
| Angle of Half Sensitivity | 50 ° |
| Collector Current | 50mA |
| Maximum Light Current | 4800μA |
| Maximum Dark Current | 50nA |
| Collector Emitter Voltage | 35V |
Key Features
- Detects infrared and visible light spectra with a peak wavelength of 880nm.
- Features typical rise and fall times of 12μs for fast response.
- Provides a maximum light current of 4800μA and dark current of 50nA.
- Compact through hole mounting with 2-pin radial T1 (3 mm) package.
- Operating temperature range from -40°C to 100°C ensures reliability in various environments.
- Maximum collector-emitter voltage of 35V and collector current of 50mA.
- Angular half-sensitivity of 50° for focused light detection.
- RoHS compliant component suitable for electronic circuit designs.
Product Description
ams OSRAM SFH 310-2/3 is a high-performance phototransistor optimized for infrared and visible light detection. Packaged in a through-hole 3 mm (T-1) radial T1 case, it offers reliable switching and sensing capabilities for a variety of electronic and optical applications.
This phototransistor features a peak wavelength of 880nm, allowing precise sensing of infrared light along with visible spectrum detection. It operates with typical rise and fall times of 12μs, providing fast response suitable for dynamic light measurement systems.
Designed to handle a maximum collector current of 50mA and a collector-emitter voltage rating up to 35V, it ensures robust performance under standard operating conditions. The device boasts a low dark current of just 50nA, minimizing false signal interference in low light environments.
The angular half sensitivity of 50° enables it to effectively detect light within a specific directional range, valuable for targeted sensing and optical feedback systems.
With an operating temperature range from -40°C to 100°C, the SFH 310-2/3 phototransistor can be reliably used in industrial, consumer electronics, communication equipment, and sensor applications where temperature variation is a key factor.
The package dimensions are compact, measuring approximately 4.8mm in height, 3.4mm length, 3.4mm width, and 2.9mm diameter, facilitating easy through-hole mounting on printed circuit boards.
Detects infrared and visible light spectra with a peak wavelength of 880nm. Fast response with typical rise and fall times of 12μs. Maximum light current of 4800μA and low dark current of 50nA. Rated collector-emitter voltage of 35V and collector current of 50mA.
Angular half sensitivity of 50° ensures directional light detection. Wide operating temperature range from -40°C to 100°C. Compact 3 mm (T-1) through-hole radial T1 package. RoHS compliant for environmentally safe manufacturing.
This phototransistor is suited for environments including industrial sensors, consumer electronics light detection, remote controls, and other optoelectronic devices. Explore the extensive range of ams OSRAM Phototransistors and optoelectronic components at EnvMart for precise and reliable light sensing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of the SFH 310-2/3 phototransistor is 880nm, allowing it to detect infrared and visible light spectra effectively.
This model has a maximum collector current rating of 50mA, ensuring it can handle standard operational demands.
The operating temperature range for this phototransistor is from -40°C to 100°C, making it suitable for various environmental conditions.
The package dimensions of the SFH 310-2/3 are approximately 4.8mm in height, 3.4mm in length, and 3.4mm in width, with a diameter of 2.9mm.
The angular half-sensitivity of this model is 50°, allowing it to effectively detect light within a specific directional range.
This phototransistor features typical rise and fall times of 12μs, providing a fast response suitable for dynamic applications.
The maximum collector-emitter voltage rating for the SFH 310-2/3 is 35V, ensuring reliable operation under standard conditions.
Yes, this phototransistor is RoHS compliant, indicating it meets environmental safety standards for manufacturing.
This model can detect both infrared and visible light spectra, making it versatile for various applications.
The maximum light current for this phototransistor is 4800μA, which helps in effective light sensing.
The SFH 310-2/3 phototransistor has 2 pins, designed for through-hole mounting.
This phototransistor is suitable for applications in industrial sensors, consumer electronics light detection, and remote controls, among others.
