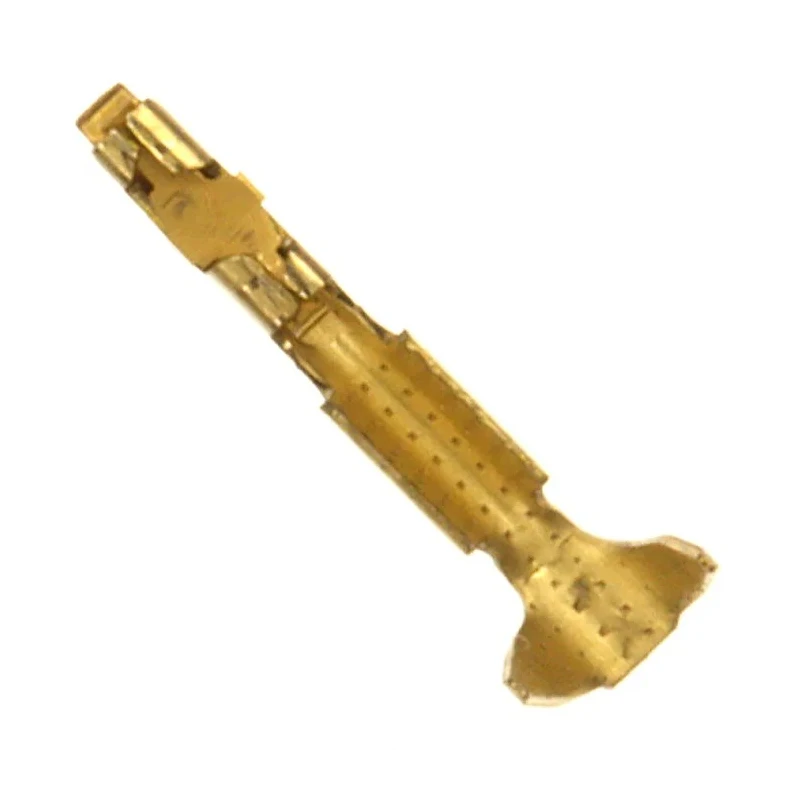

Amphenol Communications Solutions Mini-PV Series Female Crimp Terminal 3A Current 26-22 AWG Gold Plated Brass 47745-002LF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Amphenol Communications Solutions |
| Current | 3A |
| Model | 47745-002LF |
| Gender | Female |
| Contact Material | Brass |
| Series | Mini-PV |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Latch Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 2mΩ |
Key Features
- Designed for Mini-Latch connector housing applications.
- Durable brass contact material ensures reliable gas-tight crimp termination.
- Gold plating provides enhanced corrosion resistance and conductivity.
- Supports operating temperatures ranging from -40°C to 105°C.
- Maximum contact resistance of 2 milliohms ensures efficient electrical connection.
- Crimp-type termination for secure wire attachment.
- Compatible with a wide range of wire sizes between 26 AWG and 22 AWG.
- High reliability dual-metal construction supports 1000 mating cycles.
Product Description
Amphenol Communications Solutions 47745-002LF Mini-PV Series Female Crimp Terminal is engineered for electrical and electronic applications requiring reliable and durable discrete wire to PCB connections. This crimp terminal supports a continuous current rating of 3A and is compatible with 26 AWG minimum and 22 AWG maximum wire sizes. The contact features a brass body with gold plating for corrosion resistance and low contact resistance of 2 milliohms. Engineered to work with Mini-Latch connector housings, the terminal supports operating temperatures from -40°C to 105°C, ensuring performance in diverse environments.
The dual-metal construction enhances durability by providing a long operational life withstanding up to 1000 mating cycles, while a retention spring made of beryllium copper grants high mating force. The terminal is available with three differing spring pressures ('Standard' 2.35N, 'High' 4.41N, and 'Ultra High' 10.79N) to customize insertion and withdrawal forces to application requirements.
This high-quality crimp receptacle terminal finds wide usage across industries including communications, instrumentation, industrial equipment, automotive electronics, and aerospace, where reliable wire-to-board connections are critical.
The design supports discrete wire connections or insertion into MINI-LATCH housings, facilitating versatile usage scenarios in manufacturing and repair operations. Designed for Mini-Latch connector housing applications. Durable brass contact material ensures reliable gas-tight crimp termination.
Gold plating provides enhanced corrosion resistance and conductivity. Supports operating temperatures ranging from -40°C to 105°C. Maximum contact resistance of 2 milliohms ensures efficient electrical connection. Crimp-type termination for secure wire attachment.
Compatible with a wide range of wire sizes between 26 AWG and 22 AWG. High reliability dual-metal construction supports 1000 mating cycles. Retention spring provides high mating force with customizable spring pressures available.
Explore Amphenol Communications Solutions and Mini-PV Series in the EnvMart industrial catalog to locate compatible connectors and related electronic components for your projects and assemblies.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal has a continuous current rating of 3A.
It is compatible with wire sizes ranging from 26 AWG to 22 AWG.
The maximum operating temperature is 105°C.
The contact material is brass, which provides durability and reliability.
The gold plating enhances corrosion resistance and conductivity, ensuring efficient electrical connections.
The maximum contact resistance is 2 milliohms, ensuring efficient electrical connection.
It uses a crimp-type termination for secure wire attachment.
This terminal supports up to 1000 mating cycles, enhancing its operational life.
The minimum operating temperature is -40°C.
It is designed for use with Mini-Latch connector housings, facilitating versatile applications.
This terminal is suitable for communications, instrumentation, industrial equipment, automotive electronics, and aerospace applications.
There are three spring pressure options available: 'Standard' 2.35N, 'High' 4.41N, and 'Ultra High' 10.79N.
