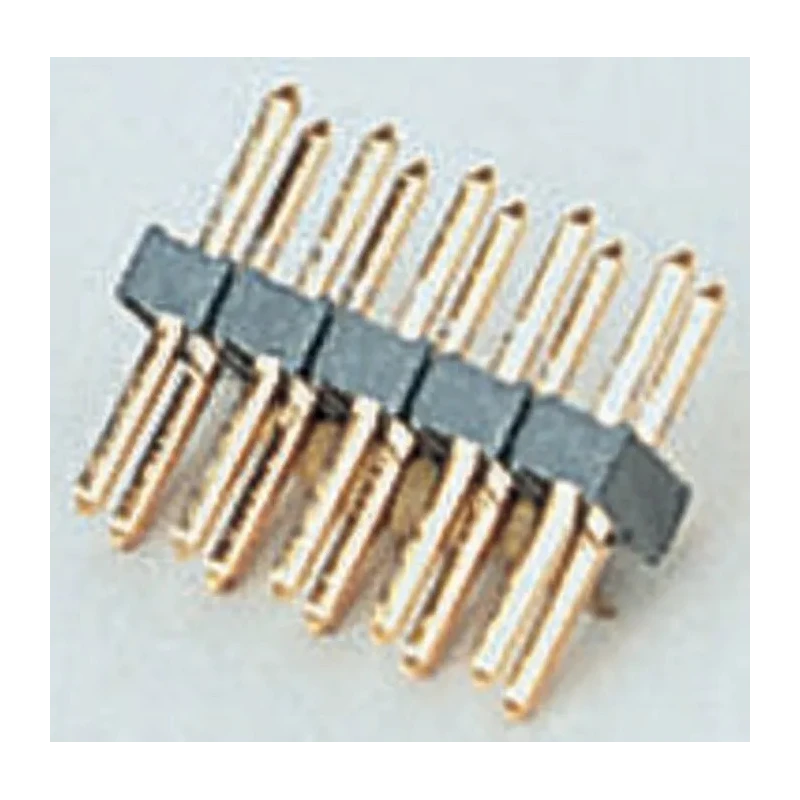

HARWIN M22 Series Straight Through Hole Pin Header 12 Contact 2 mm Pitch 2 Row Unshrouded M22-2020605
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 500V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 1A |
| Model | M22-2020605 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | M22 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.4mm |
| Mating Pin Length | 3.5mm |
Key Features
- Features phosphor bronze male contacts with gold plating for reliable conductivity.
- Constructed with high-temperature nylon housing suitable for reflow soldering processes.
- Contacts have a mating pin length of 3.5 mm and tail pin length of 3.4 mm for secure connections.
- Operates at a current rating of 1A and withstands voltage up to 500V reliably.
- Designed for use in embedded PCs, motherboards, and large electronic systems.
- Supports operation from -40°C to 105°C, suitable for diverse industrial environments.
- Unshrouded design allows flexibility in connector configurations and size adjustments.
- Manufactured in the United Kingdom ensuring quality and compliance with standards.
Product Description
HARWIN M22-2020605 Straight Through Hole Pin Header is a high-quality electrical connector designed for reliable board-to-board connections in electronic assemblies. This 12-contact connector features a 2 mm pitch and 2 rows, making it adaptable for various embedded PC, motherboard, and industrial electronic system applications.
The connector features phosphor bronze male contacts plated with gold to ensure excellent conductivity and corrosion resistance. Its housing is made from high-temperature nylon, capable of withstanding typical reflow soldering processes, enhancing its industrial usability.
The pins have a mating length of 3.5 mm and tail pin length of 3.4 mm, providing secure and durable engagement with mating components. Rated for 1 ampere current and 500 volts operating voltage, this pin header supports reliable power transmission in demanding electronic circuits.
This unshrouded connector design allows for flexible configuration options and can be cut to size as needed, while care should be taken when trimming tails. Operating temperature range from -40°C to 105°C makes it suitable for various industrial, commercial, and manufacturing environments.
Manufactured in the United Kingdom, the product demonstrates adherence to quality standards applicable in electronics manufacturing sectors. Features phosphor bronze male contacts with gold plating for reliable conductivity.
Constructed with high-temperature nylon housing suitable for reflow soldering processes. Contacts have a mating pin length of 3.5 mm and tail pin length of 3.4 mm for secure connections. Operates at a current rating of 1A and withstands voltage up to 500V reliably.
Designed for use in embedded PCs, motherboards, and large electronic systems. Supports operation from -40°C to 105°C, suitable for diverse industrial environments. Unshrouded design allows flexibility in connector configurations and size adjustments.
Manufactured in the United Kingdom ensuring quality and compliance with standards. Explore the wide range of PCB Pin Headers on EnvMart for high-quality electronic components for your industrial and commercial projects.
