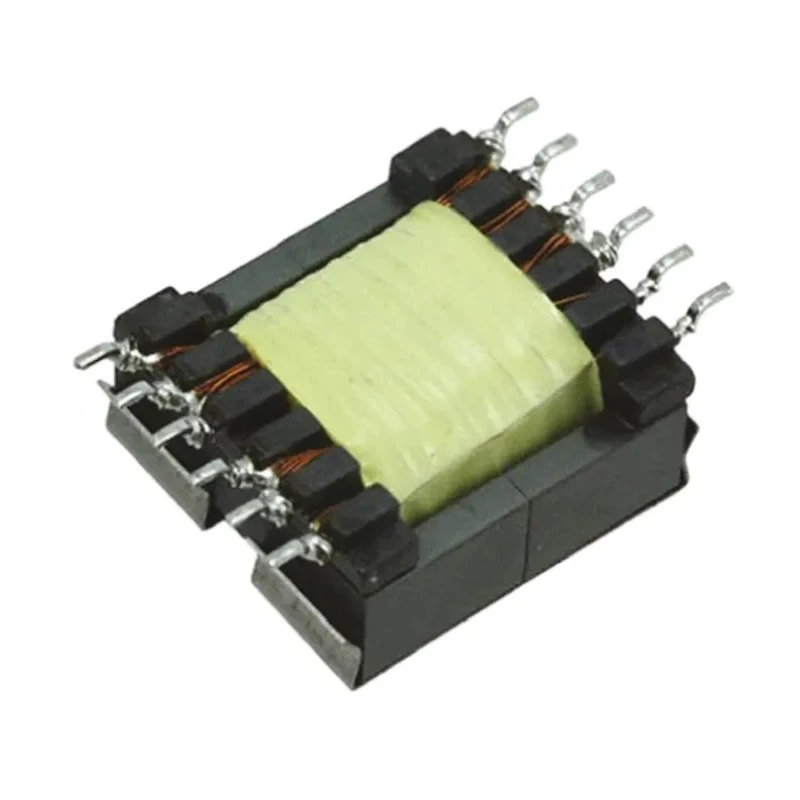

Wurth Elektronik Surface Pulse Transformer 1.5:1 Turns Ratio, 8μH Primary Inductance, 0.03Ω Primary Resistance 750311599

Wurth Elektronik 750311599 Surface Pulse Transformer is engineered for high-frequency applications such as DC-DC converters and PWM switching regulators. It features a 1.5:1 turns ratio, 8μH primary inductance, and 0.03Ω primary resistance ensuring precise signal transformation and efficiency in power electronics.

With a robust 12-pin surface mount configuration, the transformer integrates easily into compact PCB designs. It supports an operating temperature range from -40°C to 125°C and offers a leakage inductance of 1μH alongside an isolation voltage rating of 2.5kV, ensuring stability and safety under diverse operating conditions.

The unit dimensions are 29.08mm in length, 23.11mm in width, and 11.43mm in depth, making it suitable for space-constrained applications. Part of the WE-FB series, it is RoHS compliant, reflecting its adherence to environmental and safety standards.

This pulse transformer is ideal for use in industrial, electronics manufacturing, and power supply sectors, especially in circuits requiring efficient power conversion and noise isolation.

This pulse transformer has a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. It features a 12-pin surface mount design for compact PCB integration. The transformer provides a leakage inductance of 1μH and an isolation voltage of 2.5kV.

Dimensions include a length of 29.08mm, width of 23.11mm, and a depth of 11.43mm. Part of the WE-FB series, compliant with RoHS standards. Designed for use in DC-DC converters and offline PWM switching regulators, it operates at high frequencies for reduced size.

Ideal for industrial, electronic component manufacturing, and power supply applications. Browse EnvMart categories for Transformers & Transformer Parts to find similar Pulse Transformers and related electronic components.
