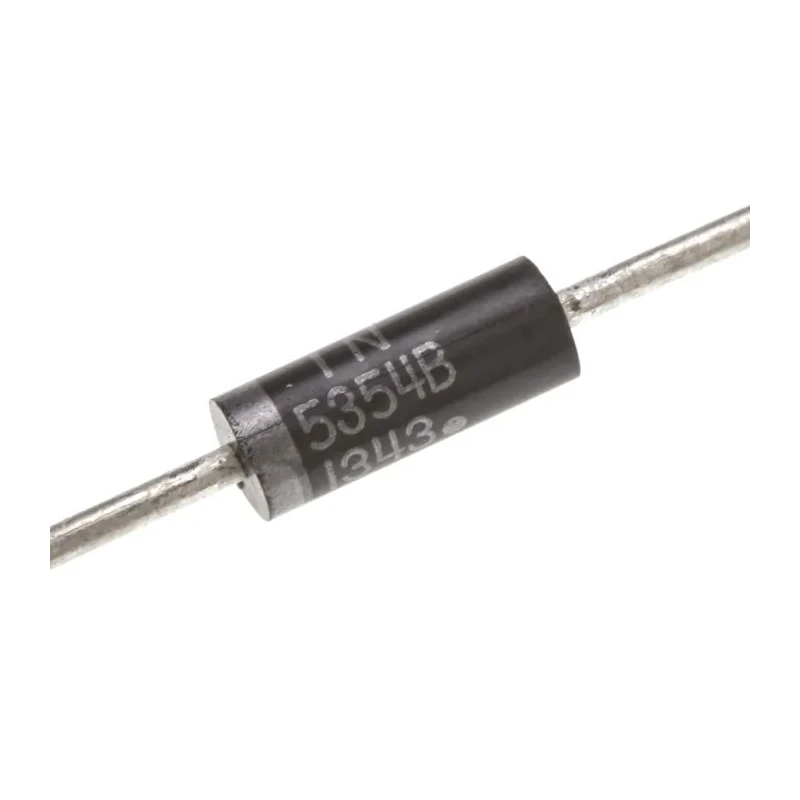

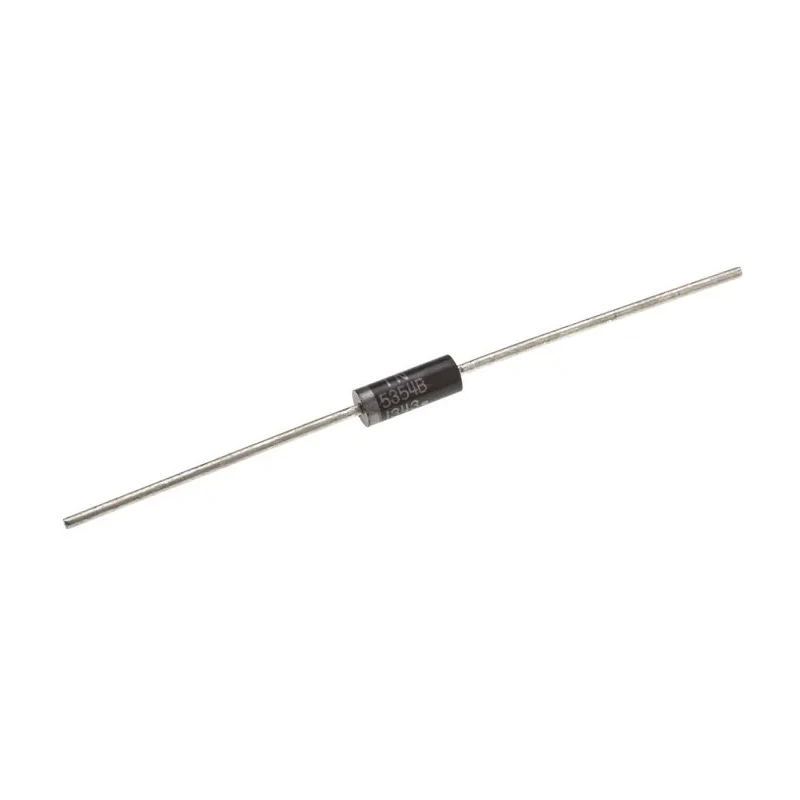

onsemi Single 17 V 5 W Zener Diode Through Hole 2-Pin DO-15 1N5354BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5354BRLG |
| Mount Type | Through Hole |
| Series | 1N5354B |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 70mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 17V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 2.5Ω |
| onsemi, 17V Zener Diode 5% 5 W Through Hole 2-Pin Surmetic 40Brand | ON Semiconductor |
| Diode,Zener,18V,5W,Axial,1N5355BBrand | ON Semiconductor |
Key Features
- Features 17 volts nominal Zener voltage with 5% tolerance.
- Maximum power dissipation of 5 watts supports robust voltage regulation.
- Through-hole mounting with DO-15 axial leaded package provides easy PCB insertion.
- Test current of 70mA ensures stable voltage regulation under operating conditions.
- Designed to operate between -65°C and 200°C for wide temperature applications.
- Offers low maximum Zener impedance of 2.5 ohms for efficient performance.
- Maximum reverse leakage current is limited to 500 nanoamperes.
- Constructed with silicon-oxide passivated junction enhancing performance and durability.
Product Description
onsemi 1N5354BRLG is a single Zener diode featuring a nominal Zener voltage of 17 V and maximum power dissipation of 5 W. It utilizes a 2-pin DO-15 axial leaded through-hole package for easy mounting on printed circuit boards. The device offers a tight voltage tolerance of ±5%, ensuring precise voltage regulation essential in various industrial and electronic applications.
The diode is built with silicon-oxide passivated junction technology that delivers superior electrical characteristics and long service life. It operates efficiently in temperatures ranging from -65°C up to 200°C, making it suitable for demanding environments. Its maximum Zener impedance of 2.5 Ω and reverse leakage current capped at 500 nA contribute to stable device operation.
The DO-15 molded package is void-free transfer-molded thermosetting plastic which protects the device in common environmental conditions. Leads are corrosion resistant and easily solderable, facilitating reliable mechanical and electrical connections in production.
This Zener diode is ideal for industrial voltage regulation, power management circuits, and other applications requiring stable reference voltage under variable currents and temperatures. It is part of the 1N5354B series, featuring Surmetic™ 40 axial lead construction.
Features 17 volts nominal Zener voltage with 5% tolerance. Maximum power dissipation of 5 watts supports robust voltage regulation. Through-hole mounting DO-15 axial leaded package. Test current of 70mA for reliable voltage regulation.
Operates between -65°C and 200°C. Low maximum Zener impedance of 2.5 ohms. Maximum reverse leakage current of 500 nanoamperes. Silicon-oxide passivated junction for enhanced performance. Corrosion resistant external surfaces and solderable leads.
Ideal for industrial voltage regulation applications.
Explore more semiconductor and Zener diode components in the Electronics & Electricals section at EnvMart for your industrial, electronic manufacturing, and power management needs.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 17 V.
The maximum power dissipation for this model is 5 watts.
The maximum reverse leakage current is limited to 500 nanoamperes.
It can operate efficiently between -65°C and 200°C.
The maximum Zener impedance is 2.5 ohms.
The test current for this diode is 70 mA.
This model uses a DO-15 axial leaded through-hole package.
This diode has 2 pins.
It is constructed with a silicon-oxide passivated junction, enhancing its performance.
This Zener diode is suitable for industrial voltage regulation and power management circuits.
The height is 3.68 mm and the length is 8.89 mm.
This diode is part of the 1N5354B series.
