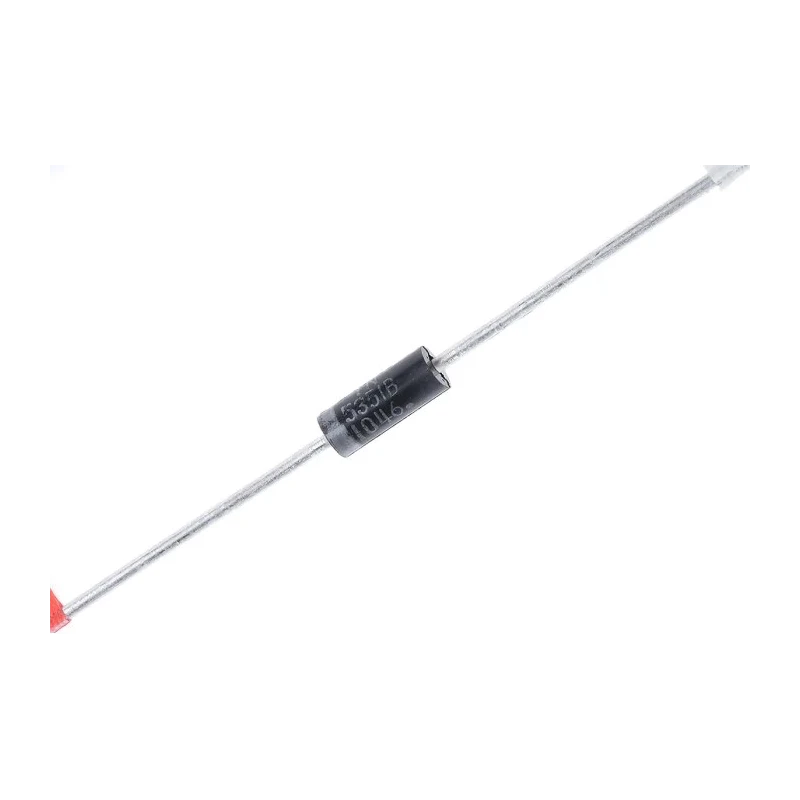

onsemi 14 V 5 W Single Zener Diode Through Hole 2-Pin DO-15 1N5351BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5351BRLG |
| Mount Type | Through Hole |
| Series | 1N5351B |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 100mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 14V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 2.5Ω |
Key Features
- Axial-leaded through hole mounting package for easy PCB insertion.
- Molded DO-15 package with corrosion-resistant and solderable leads.
- Test current of 100 mA with maximum reverse leakage current of 1 μA.
- Operating temperature range from -65°C to 200°C for industrial environments.
- Nominal Zener voltage at 14 V with maximum Zener impedance of 2.5 Ω.
- Surmetic 40 axial-leaded construction for reliable voltage regulation.
- RoHS compliant ensuring environmentally safe materials.
- Ideal for industrial applications requiring voltage regulation.
Product Description
onsemi 1N5351BRLG is a single Zener diode designed as a voltage regulator with nominal 14 V Zener voltage and 5 W maximum power dissipation. Packaged in a through hole 2-pin DO-15 axial-leaded molded case, this diode offers excellent durability with corrosion-resistant external surfaces and readily solderable leads.
The device features tight voltage regulation tolerance of ±5%, a test current of 100 mA, a maximum Zener impedance of 2.5 Ω, and a maximum reverse leakage current of 1 μA. Its robust operating temperature range from -65°C to 200°C makes it suitable for use in demanding industrial environments.
This Surmetic 40 series device incorporates silicon-oxide passivated junction technology, providing superior stability and performance. The molded package is transfer-molded with thermosetting plastic to protect the diode in typical environmental conditions.
Common industrial applications include voltage regulation for power supplies and protective circuits requiring steady voltage with low noise and high reliability. This diode complies with RoHS standards ensuring use of environmentally safe materials.
Axial-leaded through hole mounting for easy PCB implementation. Corrosion resistant and solderable leads. Wide temperature range ensures operational stability under harsh conditions. Surmetic 40 series for superior electrical characteristics.
Environmentally compliant with RoHS. Choose onsemi Zener Diodes at EnvMart for reliable semiconductor discrete components suited to industrial electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 14 V.
The maximum power dissipation for this model is 5 W.
The maximum reverse leakage current of this diode is 1 μA.
This model operates within a temperature range of -65°C to 200°C.
The maximum Zener impedance is 2.5 Ω.
This diode uses a through hole mounting type.
The dimensions of this diode are 8.89 mm in length and 3.68 mm in height.
This diode has 2 pins.
The test current for this diode is 100 mA.
Yes, this diode complies with RoHS standards, ensuring the use of environmentally safe materials.
The diode configuration of this model is single.
This Zener diode belongs to the Surmetic 40 series, known for its superior electrical characteristics.
