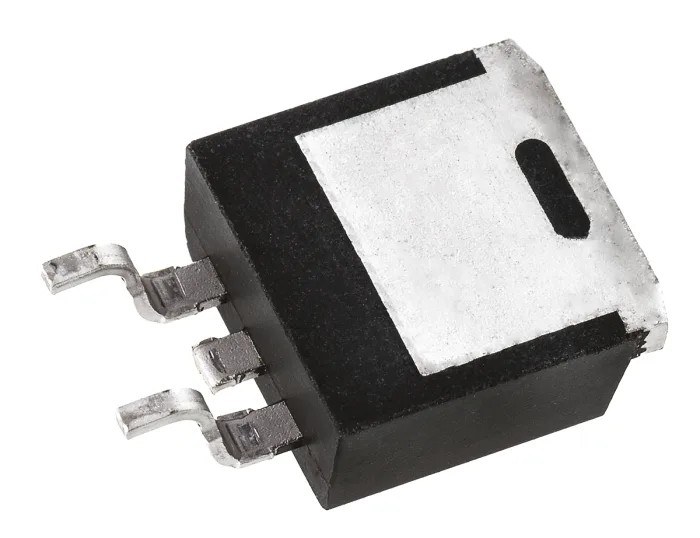

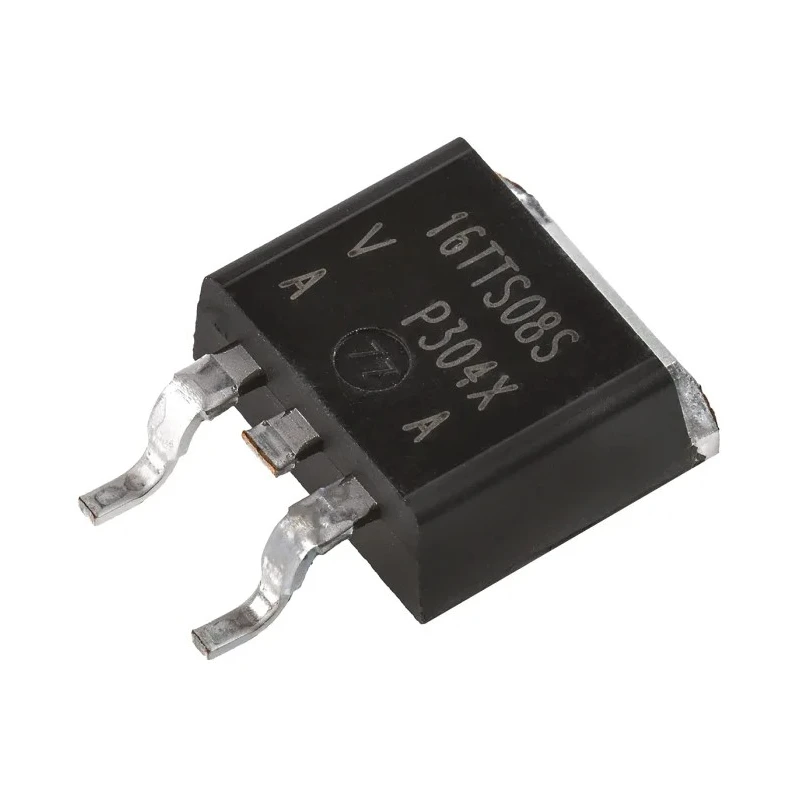

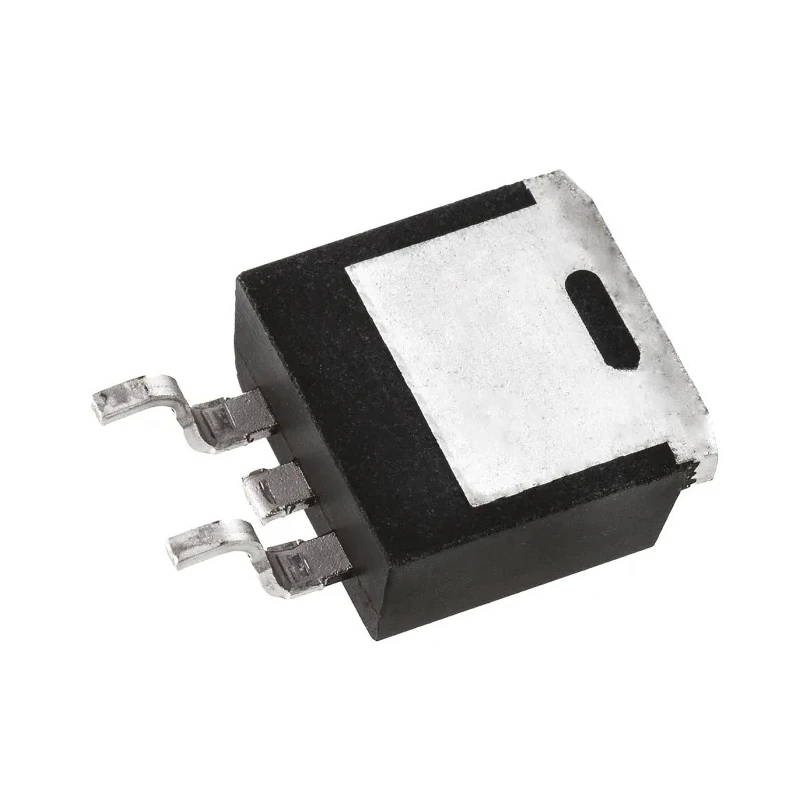

Vishay Thyristor SCR, TO-263 Package, 800 V, 10 A, 60 mA Gate Trigger Current, 200 A Surge Current, 16TTS08SPBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | 16TTS08SPBF |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 10A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 200A |
| Maximum Gate Trigger Current Igt | 60mA |
| Maximum Holding Current Ih | 100mA |
| Maximum Gate Trigger Voltage Vgt | 2V |
| Peak On-State Voltage | 1.4V |
| Repetitive Peak Off-State Current | 0.5mA |
Key Features
- This SCR features a TO-263 surface mount package designed for efficient heat dissipation.
- Maximum gate trigger current is 60 mA, enabling precise control of switching.
- It supports a peak on-state voltage of 1.4 V and a maximum gate trigger voltage of 2 V.
- Designed to operate reliably between -40°C to 125°C, suitable for harsh industrial environments.
- The device includes 3 pins and a repetitive peak off-state current of 0.5 mA.
- Compatible with applications like battery chargers, welders, regulated power supplies, and speed control circuits.
- Robust construction ensures long-term durability in electronic power control systems.
Product Description
Vishay 16TTS08SPBF is a Silicon-Controlled Rectifier (SCR) thyristor designed for power control applications requiring robust performance and reliable switching. Housed in a TO-263 surface mount package, this device supports a repetitive peak reverse voltage of 800 V and a rated average on-state current of 10 A, making it suitable for diverse industrial uses such as battery chargers, welding machines, regulated power supplies, and motor speed control circuits.
The thyristor has a maximum surge current rating of 200 A and a low peak on-state voltage of 1.4 V, which contributes to efficient power handling with minimal losses. It features a gate trigger current of 60 mA and a gate trigger voltage threshold of 2 V to ensure precise phase control switching. Operating reliably within a temperature range of -40°C up to 125°C, it is well suited for demanding industrial and commercial environments.
This device includes 3 pins arranged for surface mounting, enabling easy integration into modern printed circuit boards. The repetitive peak off-state current is maintained at a low 0.5 mA, ensuring minimal leakage. Vishay’s thyristor modules are constructed with electrically isolated base plates, allowing safe operation in high-voltage systems.
Surface mount TO-263 package for compact installation. Robust electrical specifications for high-efficiency switching. Wide operating temperature range from -40°C to 125°C. Designed for phase control in industrial power electronics.
Applications include battery charging, welding, and speed control. Durable construction for long service life under stress. Repetitive peak reverse voltage of 800 V ensures high-voltage tolerance. Explore the Vishay range of Thyristors on EnvMart for industrial-grade power control solutions optimized for performance and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 125°C.
This thyristor has a rated average on-state current of 10 A.
The repetitive peak reverse voltage is 800 V.
It can handle a surge current rating of 200 A.
The maximum gate trigger current is 60 mA.
The thyristor is housed in a TO-263 surface mount package.
The minimum operating temperature is -40°C.
This device includes 3 pins arranged for surface mounting.
The peak on-state voltage is 1.4 V.
It is suitable for applications such as battery chargers, welders, regulated power supplies, and speed control circuits.
The maximum gate trigger voltage is 2 V.
The repetitive peak off-state current is 0.5 mA.
