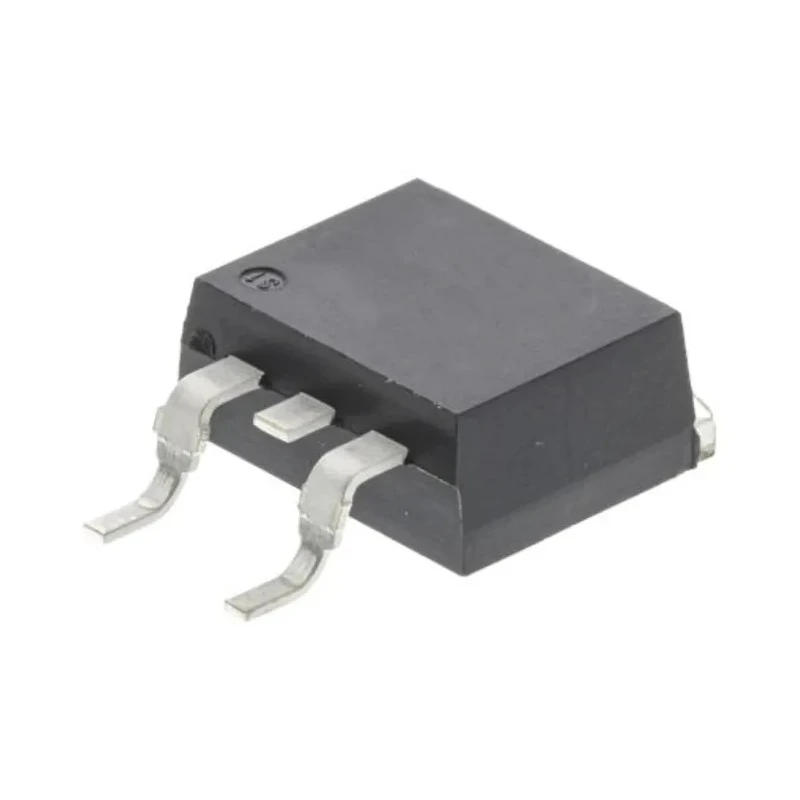

STMicroelectronics Thyristor 600 V, 10 A, 6 mA Gate Trigger Current, 153 A Surge Current Rating TN1605H-6G

STMicroelectronics TN1605H-6G Thyristor is a high-quality Silicon Controlled Rectifier (SCR) tailored for industrial electronic applications requiring reliable high voltage and current switching capabilities. Rated for repetitive peak reverse voltage of 600 V and an average on-state current of 10 A, it supports surge currents up to 153 A, allowing it to handle transient conditions effectively.

This device features a compact TO-263 surface mount package that enables efficient heat dissipation and ease of integration on printed circuit boards. The maximum gate trigger current of 6 mA combined with a low maximum gate trigger voltage of 1.3 V facilitates sensitive and reliable triggering using minimal control power. The maximum holding current of 20 mA ensures steady conduction once the device is triggered.

With a broad operating temperature range from -40°C to 150°C and high noise immunity rated at 200 V/μs, the TN1605H-6G is well-suited for demanding industrial, power control, and electronic switching applications. Its high turn-on current rise rate of 100 A/μs further enhances switching performance, making it ideal for robust control circuits requiring fast response times.

This thyristor is manufactured to comply with international industrial standards and is designed for surface mount applications in power electronics, motor controls, and surge protection devices. The product originates from China, ensuring consistent manufacturing quality.

Equipped with a maximum gate trigger current of 6 mA for low-power gate control. Supports a high surge current rating of 153 A for transient robustness. Compact TO-263 package designed for surface mounting and efficient heat dissipation.

Wide operating temperature range from -40°C to 150°C for industrial environments. High noise immunity dV/dt of 200 V/μs up to the maximum junction temperature. Low gate trigger voltage of 1.3 V for sensitive triggering circuits.

Maximum holding current of 20 mA to maintain stable conduction. High turn-on current rise of 100 A/μs enables fast switching.

This STMicroelectronics Thyristor is suitable for use in industrial power control, electronic switching, and surge protection in manufacturing, electrical control systems, and HVAC applications. EnvMart offers comprehensive access to this and other semiconductor devices for advanced electronic design and manufacturing needs.
