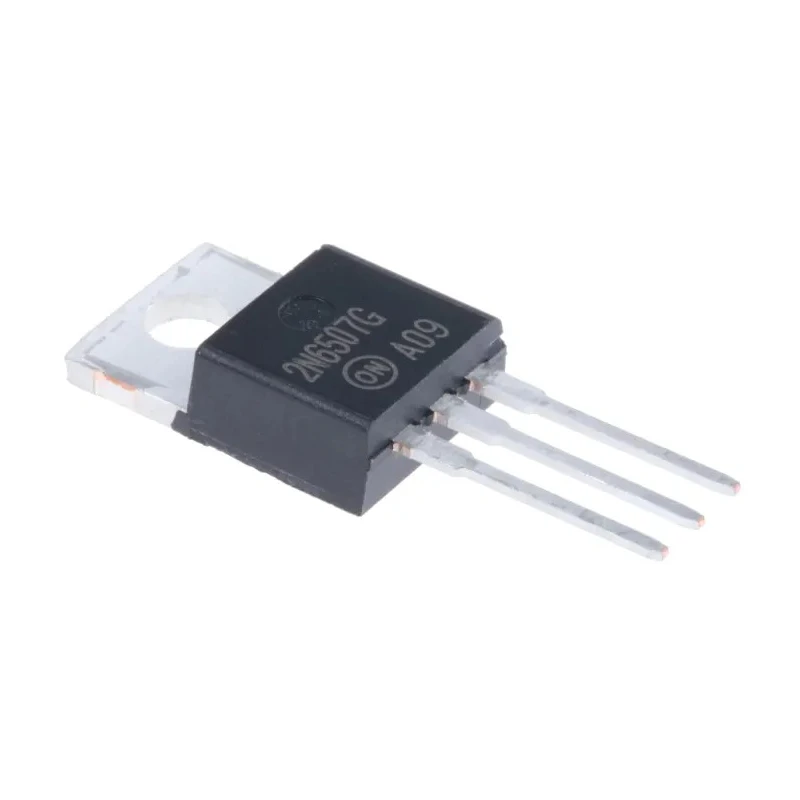

Littelfuse Thyristor SCR 400 V 16 A 30 mA Gate Trigger Current 250 A Surge Current 1.8 V Peak On-State Voltage 2N6507G

Littelfuse 2N6507G is an SCR-type thyristor semiconductor device built for high reliability in switching and control applications. Rated for a repetitive peak reverse voltage of 400 V and capable of handling 16 A average on-state current, this device is designed to switch and conduct in power electronic circuits effectively.

It features a maximum gate trigger current of 30 mA, allowing precise triggering, and sustains surge currents up to 250 A to withstand transient overloads. The device provides a low peak on-state voltage of 1.8 V which helps minimize power dissipation during conduction. Encapsulated in a TO-220 package, the 2N6507G is mounted via through-hole methods facilitating ease of assembly in electronic equipment.

Operating temperature ranges from -40°C to 125°C ensure performance stability under harsh industrial environments. With a holding current of 40 mA, the thyristor maintains conduction once triggered. Its 3-pin configuration corresponds to gate, anode, and cathode terminals for standard connection schemes.

This Littelfuse Thyristor is widely used in industrial motor controls, power regulation, and phase control applications across electronics, manufacturing, and automation sectors. It provides robust, reliable switching for equipment requiring precise electronic control.

This device supports through-hole mounting and is enclosed in a TO-220 package. Maximum operating temperature extends to 125°C ensuring thermal endurance. 3-pin arrangement enables easy integration with gate triggering. Suitable for diverse industrial, automation, and electronic circuit designs.

Rated for surge currents of 250 A, providing transient tolerance. Explore our broad semiconductor components selection at EnvMart for your power and industrial electronic project needs.
