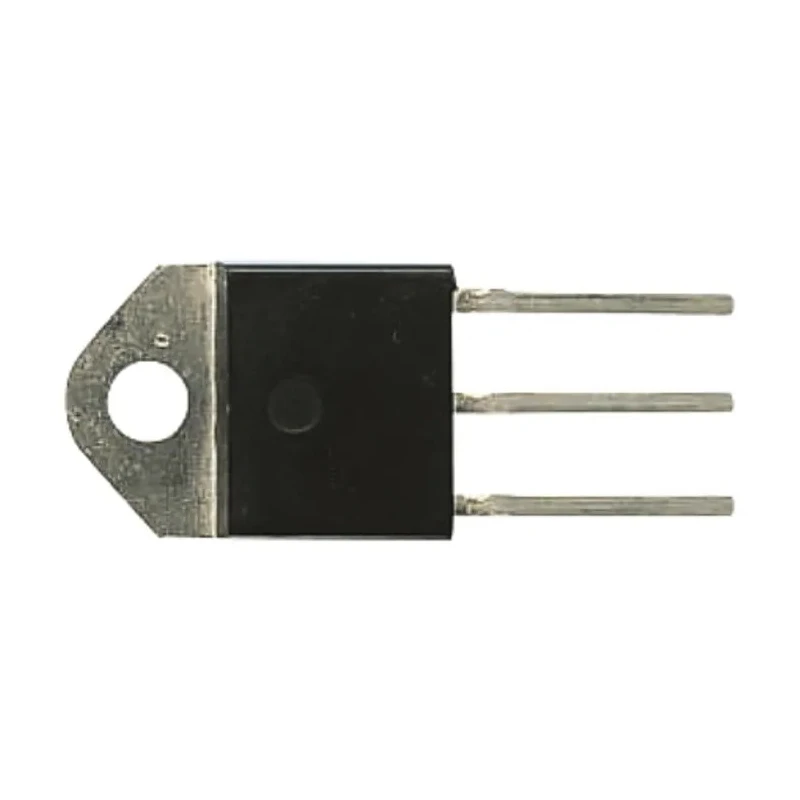

STMicroelectronics Thyristor 1200 V 420 A 19 A 50 mA 2.1 V TOP3 3-Pin BTW68-1200RG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | BTW68-1200RG |
| Mount Type | Through Hole |
| Series | BTW68 |
| Maximum Operating Temperature | 125°C |
| Package Type | TOP3 |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 19A |
| Repetitive Peak Reverse Voltage VDRM | 1200V |
| Surge Current Rating | 420A |
| Maximum Gate Trigger Current Igt | 50mA |
| Maximum Holding Current Ih | 75mA |
| Maximum Gate Trigger Voltage Vgt | 1.5V |
| Peak On-State Voltage | 2.1V |
| Repetitive Peak Off-State Current | 20μA |
Key Features
- Featuring a TOP3 3-pin package for through-hole mounting.
- Surge current rating of 420 A allows handling high transient loads.
- Maximum operating temperature up to 125°C ensures reliability in demanding conditions.
- Maximum holding current of 75 mA and gate trigger voltage of 1.5 V enable precise switching control.
- Repetitive peak reverse voltage of 1200 V for robust voltage blocking capability.
- Low peak on-state voltage of 2.1 V minimizes conduction losses.
- Designed without automotive standard compliance, suitable for general industrial and electronic applications.
- Repetitive peak off-state current is limited to 20 μA for efficient off-state behavior.
Product Description
STMicroelectronics BTW68-1200RG Thyristor is a robust power semiconductor device designed for efficient power switching and control applications. It features a high blocking voltage rating of 1200 V and a surge current rating of 420 A, making it ideal for industrial and electronic power management circuits. The device is housed in a TOP3 3-pin through-hole package that facilitates easy integration into various PCB layouts.
With a rated average on-state current of 19 A and maximum operating temperature of 125°C, the BTW68-1200RG ensures reliable performance under demanding thermal conditions. The device supports precise gate control with a maximum gate trigger current of 50 mA and gate trigger voltage of 1.5 V, while the maximum holding current is 75 mA. These parameters enable consistent and responsive switching behavior.
The thyristor exhibits a repetitive peak reverse voltage of 1200 V and a low peak on-state voltage of 2.1 V which contribute to its efficiency and durability in power circuits. Its low off-state current leakage of 20 μA further enhances overall device efficiency. While it does not conform to automotive standards, this component is well-suited for a wide range of electronic and industrial power applications including motor control, power supplies, and switching devices.
Featuring a TOP3 3-pin package for through-hole mounting. Surge current rating of 420 A handles high transient loads. Maximum operating temperature up to 125°C for industrial reliability. Precise gate control with 50 mA trigger current and 1.5 V trigger voltage.
Low conduction losses due to 2.1 V peak on-state voltage. Repetitive peak reverse voltage of 1200 V for voltage blocking capability. Repetitive peak off-state current is limited to 20 μA.
This STMicroelectronics BTW68-1200RG Thyristor offers powerful performance for applications in industrial machinery, power supplies, and electronic control circuits. Its advance design supports rigorous operational demands in semiconductor power switching, allowing manufacturers and engineers to achieve enhanced power efficiency and durability.
Explore more semiconductor and discrete component options to fit your industrial and electrical requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 125°C, ensuring reliability in demanding conditions.
It has a surge current rating of 420 A, allowing it to handle high transient loads effectively.
The peak on-state voltage is 2.1 V, which helps to minimize conduction losses during operation.
The rated average on-state current is 19 A, making it suitable for various power management applications.
This model is housed in a TOP3 3-pin through-hole package, facilitating easy integration into PCB layouts.
The maximum gate trigger current is 50 mA, allowing for precise control during operation.
The repetitive peak reverse voltage is 1200 V, providing robust voltage blocking capability.
The maximum holding current is 75 mA, which supports stable operation in power circuits.
The repetitive peak off-state current is limited to 20 μA, contributing to its efficient off-state behavior.
This thyristor is designed without automotive standard compliance, making it suitable for general industrial and electronic applications.
It is well-suited for a wide range of applications, including motor control, power supplies, and switching devices.
The country of origin for this model is India.
