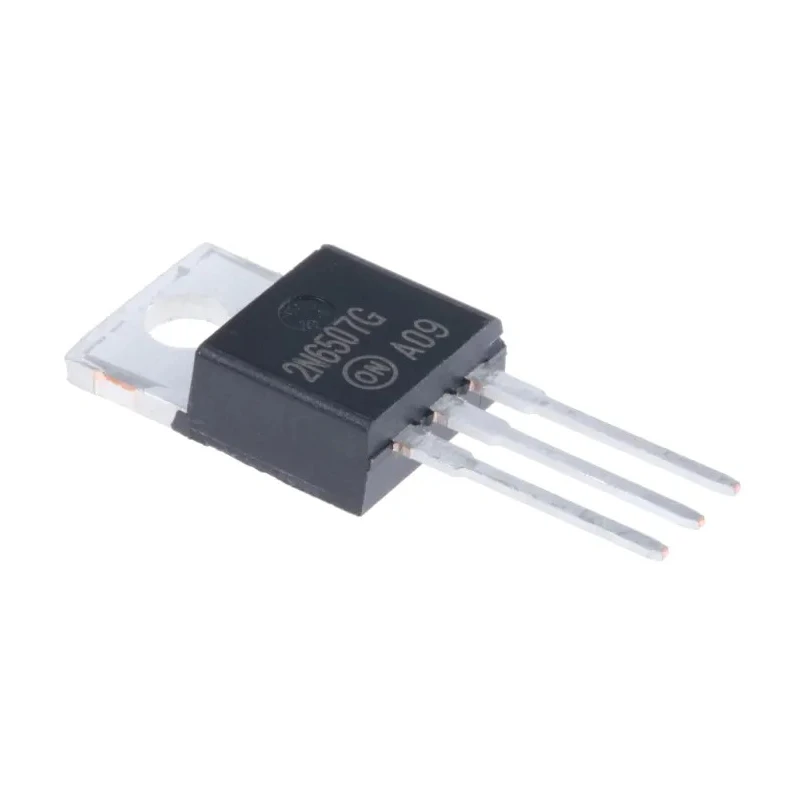

Littelfuse Thyristor 400 V 16 A 30 mA 250 A 1.8 V SCR TO-220 2N6507G

Littelfuse 2N6507G model is a high-performance thyristor (Silicon-Controlled Rectifier - SCR) designed for phase control and switching applications in industrial and electronic devices. This device features a repetitive peak reverse voltage of 400 V and a rated average on-state current of 16 A, capable of handling surge currents up to 250 A, making it ideal for transient load conditions encountered in power electronics.

Its TO-220 package type supports through-hole mounting and helps with effective heat dissipation during operation. The device requires a maximum gate trigger current of 30 mA and a gate trigger voltage up to 1.5 V, ensuring precise switching control with a maximum holding current of 40 mA to maintain stable conduction once triggered.

The Thyristor operates reliably under wide temperature ranges from -40°C to 125°C, suitable for industrial environments with temperature fluctuations. Its low peak on-state voltage of 1.8 V contributes to energy efficiency by minimizing voltage drop during conduction.

This 3-pin discrete semiconductor component does not comply with specific automotive standards but finds extensive use in laboratory, manufacturing, HVAC, and commercial power control systems requiring robust and efficient switching elements.

Designed for phase control and switching in power electronic circuits. High surge current rating supports transient loads. Wide operating temperature range ensures durability and reliability. Industry-standard TO-220 package for easy mounting and cooling.

Low leakage current and precise gate triggering for efficient control. Suitable for industrial, laboratory, and commercial electronic applications.

For detailed technical integration and design, refer to Littelfuse’s official datasheets and technical documents. Explore the Electronics & Electricals category on EnvMart for more discrete semiconductor components from trusted manufacturers.
