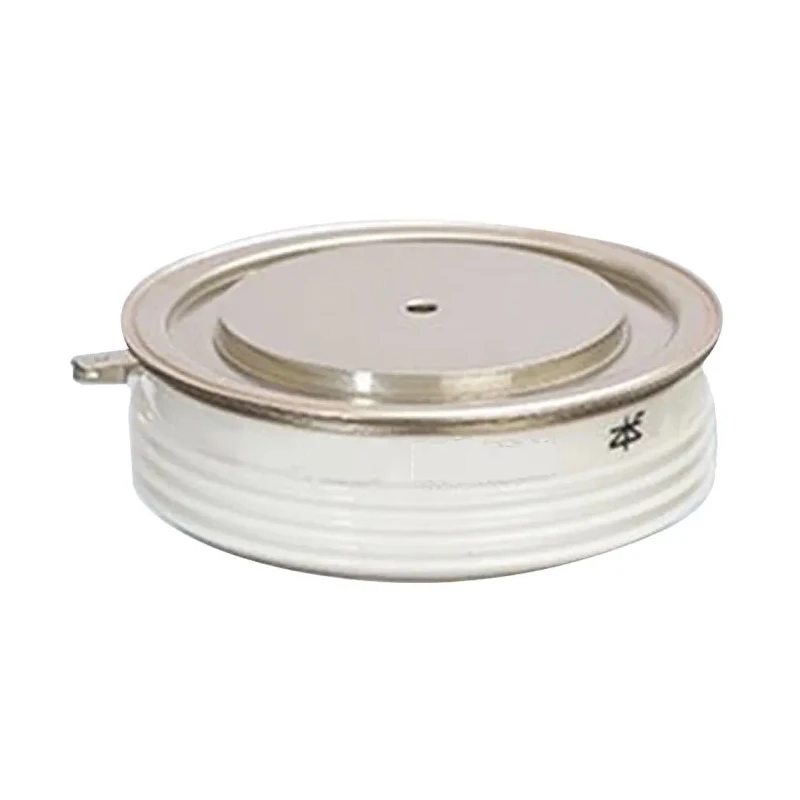

Infineon Thyristor Phase Control Capsule 1600 V 1190 A 250 mA Gate Trigger 25.5 kA Surge Current T1190N16TOFVTXPSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | T1190N16TOFVTXPSA1 |
| Mount Type | Stud Mount |
| Series | T1190N |
| Maximum Operating Temperature | 125°C |
| Package Type | BG-T7526K |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Rated Average On-State Current Irms | 1190A |
| Thyristor Type | PCT |
| Repetitive Peak Reverse Voltage VDRM | 1600V |
| Surge Current Rating | 25.5kA |
| Maximum Gate Trigger Current Igt | 250mA |
| Maximum Holding Current Ih | 500mA |
| Maximum Gate Trigger Voltage Vgt | 2V |
| Peak On-State Voltage | 2.05V |
| Repetitive Peak Off-State Current | 150mA |
Key Features
- This device features a 250 mA maximum gate trigger current for reliable switching.
- Designed as a phase control capsule thyristor with a sealed ceramic press-pack disc housing to resist high humidity environments.
- It supports a repetitive peak reverse voltage of 1600 V and a surge current rating up to 25.5 kA for transient overload conditions.
- The stud mount package type (BG-T7526K) ensures sturdy mounting and effective heat dissipation.
- Operational temperature ranges from -40°C minimum to 125°C maximum, suitable for industrial environments.
- The device is equipped with 5 pins and a typical peak on-state voltage of 2.05 V for efficient conduction.
- Maximum gate trigger voltage is 2 V, with a holding current of 500 mA.
- It complies with no specific automotive or standards approvals, emphasizing industrial and commercial use.
Product Description
The Infineon T1190N16TOFVTXPSA1 is a high-performance phase control capsule thyristor designed for power electronics and industrial applications requiring precise control and robust durability.
Rated for a repetitive peak reverse voltage (VDRM) of 1600 V and an average on-state current (Irms) of 1190 A, it handles high load currents effectively. The surge current rating of 25.5 kA ensures the device withstands transient overloads without damage, making it ideal for power control in industrial machinery and heavy electrical equipment.
This ceramic press-pack packaged thyristor features a sealed disc housing that protects against high humidity, enhancing reliability in harsh environments. The stud mount configuration (BG-T7526K) facilitates secure installation and efficient thermal management.
The device's gate trigger parameters - maximum gate trigger current of 250 mA and gate trigger voltage of 2 V - allow precise electrical triggering, while the holding current of 500 mA supports steady conduction once triggered. It operates reliably within a temperature range from -40°C to 125°C, suitable for varied industrial conditions.
The five-pin layout supports stable connections for control and power terminals. Peak on-state voltage is specified at 2.05 V, reflecting efficient conduction performance. Although it lacks specific automotive or industry approvals, it remains a trusted choice for power electronics, semiconductor control, and industrial automation applications.
Common industrial use cases include power regulation in manufacturing lines, motor controls, and high-power electrical circuits requiring durable phase control components. This Thyristor supports compact electrical trigger designs.
Its sealed ceramic housing provides enhanced environmental protection. Suitable for use in high humidity and industrial settings. Offers reliable performance with large surge current tolerance. Ideal for phase control in industrial power electronics.
Explore additional semiconductor products and Infineon brand components available at EnvMart for comprehensive power control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 125°C.
It has a surge current rating of 25.5 kA, allowing it to withstand transient overload conditions.
The repetitive peak reverse voltage (VDRM) for this device is 1600 V.
This model features a five-pin layout for stable connections.
The maximum gate trigger current for this thyristor is 250 mA.
It uses a stud mount configuration, specifically the BG-T7526K package type.
The maximum holding current for this thyristor is 500 mA.
The typical peak on-state voltage is specified at 2.05 V.
The minimum operating temperature is -40°C, making it suitable for a wide range of industrial environments.
This thyristor is suitable for power regulation in manufacturing lines, motor controls, and high-power electrical circuits.
The thyristor features a sealed ceramic press-pack disc housing, which provides protection against high humidity environments.
This model does not comply with specific automotive or industry approvals, focusing on industrial and commercial use.
