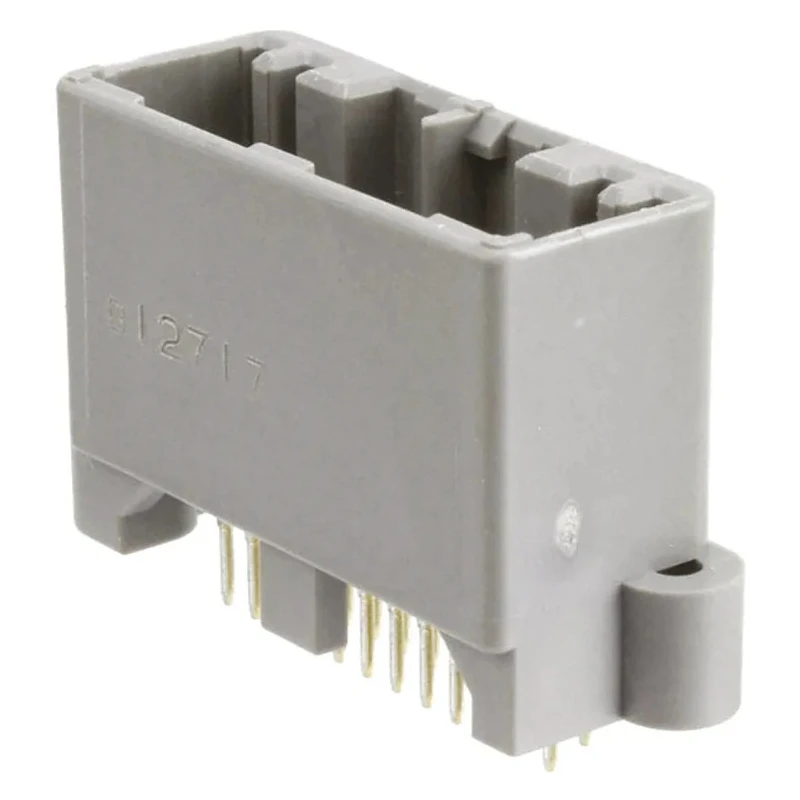

JAE MX34 Series Straight Through Hole PCB Header 24 Contacts 2.2 mm Pitch 2 Row Shrouded

JAE MX34024UF1 is a high-quality MX34 series straight through hole PCB header connector designed with 24 contacts arranged in 2 rows with a 2.2 mm pitch. This shrouded male connector is ideal for wire-to-board applications in automotive, industrial, and electronic equipment.

The housing is made from glass filled syndiotactic polystyrene offering excellent durability and resistance to environmental stresses. Contacts use brass material with tin plating for optimal electrical conductivity and enhanced corrosion resistance.

This PCB header is rated for 3 amperes of current, with operating temperatures ranging from -40°C minimum to 85°C maximum, accommodating harsh automotive and industrial environment requirements. The connector’s design features a reliable double locking mechanism and double leaf spring contacts that provide robust mating force reduction and enhanced reliability under mechanical stress.

Through hole solder termination type ensures secure mounting onto printed circuit boards while maintaining stable electrical connections. The straight orientation and shrouded pin header form factor provide protection against external mechanical loads and prevent incomplete insertion.

Compatible with MX34 socket housings, this connector is part of a comprehensive automotive connector system tailored to improve production efficiency and overall system robustness. Ideal for industrial, automotive electronics, manufacturing, and electronic component assembly applications.

Features straight orientation and shrouded design for secure connections. Constructed with glass filled syndiotactic polystyrene housing for mechanical strength. Contacts are brass with tin plating ensuring reliable conductivity and corrosion resistance.

Rated for 3A current with a temperature range from -40°C to 85°C. Designed with a double locking mechanism for secure mating and improved workability. Compatible with MX34 series socket housings for varied configurations.

Through hole mount type suitable for PCB insertion with solder termination. Connector system is wire-to-board ensuring direct interface to PCB circuits. Highly resistant to twisting and mechanical stresses via a proven double leaf spring contact design.
