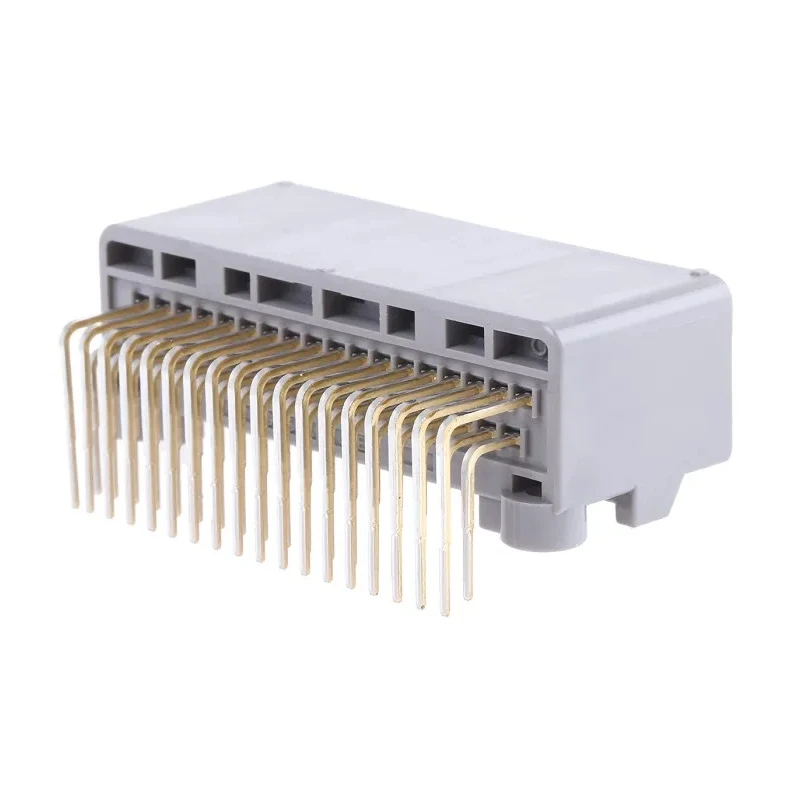

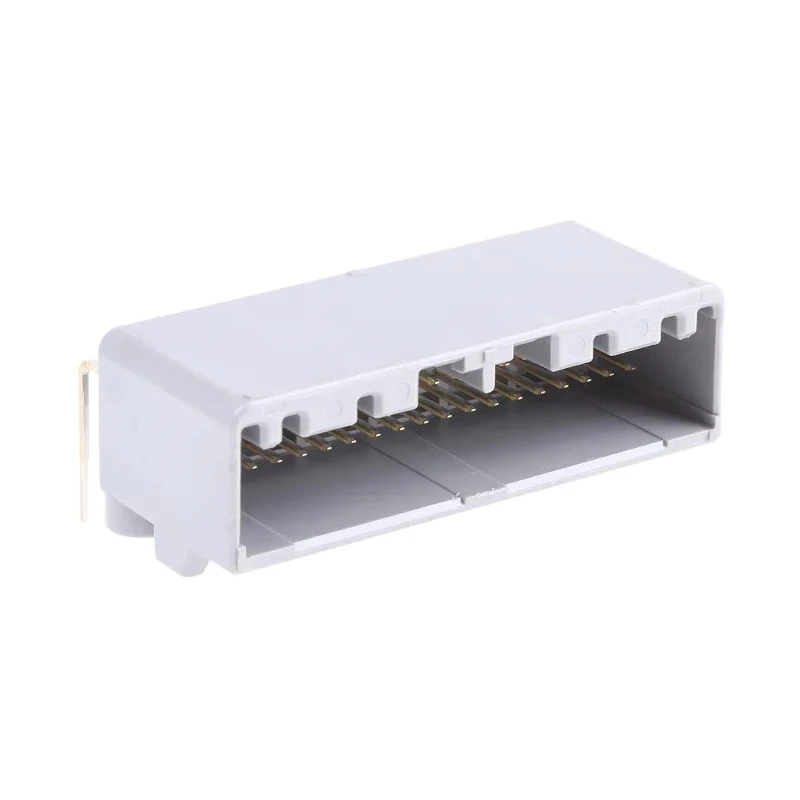

JAE MX34 Series Right Angle Through Hole PCB Header, 36 Contacts, 2.2 mm Pitch, 2 Row, Shrouded

Free Delivery in India | Lowest Global Shipping Charges

JAE MX34 Series Right Angle Through Hole PCB Header, 36 Contacts, 2.2 mm Pitch, 2 Row, Shrouded



Category PCB Headers Brand JAE Condition New

Specifications

Country of Origin	India
Brand	JAE
Orientation	Right Angle
Current	3A
Model	MX34
Mount Type	Through Hole
Housing Material	Glass Filled Syndiotactic Polystyrene
Contact Material	Brass
Series	MX34
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.2mm
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	690-8903Brand: JAEManufacturers Part No.: MX34036NF2
Contact Plating	Tin
Number of Contacts	36
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
For MX34 socket housings see typical stock numbers	690-9852

Key Features

The connector is designed for automotive applications, meeting high durability and reliability requirements.
Contact material is brass with tin plating to ensure strong conductivity and corrosion resistance.
The housing is made of glass-filled syndiotactic polystyrene, providing robust mechanical stability.
Operates effectively within a temperature range of -40°C to 85°C.
Solder termination type enables secure and permanent PCB connection.
The connector system supports wire-to-board interfacing with a right-angle orientation.
Features a preset double locking mechanism and a box-type pin header for enhanced mechanical strength.
Contact current rating of 3 Amperes ensures efficient electrical performance.

Product Description

JAE MX34036NF2 is a high-quality MX34 series right angle through hole PCB header designed for 36 contacts with a 2.2 mm pitch and arranged in 2 rows. This shrouded connector provides excellent mechanical and electrical performance, optimized for automotive and industrial use.

Constructed with a brass contact material plated with tin, the connector ensures reliable conduction and resistance to corrosion. The housing material, glass-filled syndiotactic polystyrene, offers robust durability in demanding environments. The right-angle orientation facilitates compact PCB layouts while maintaining secure wire-to-board connections.

Operating temperature ranges from minus 40°C to plus 85°C, making it suitable for harsh automotive and industrial conditions. The solder termination type delivers a permanent and stable connection to the printed circuit board.

The MX34 series connectors feature a preset double locking mechanism and box-type pin header to withstand mechanical stresses, reducing mating/unmating forces below 80 N for improved assembly workability. Contacts employ a double leaf spring design to resist twisting and provide reliable connectivity.

This product complies with standard automotive connector requirements though not featuring specific certifications. The connector is ideal for applications in automotive electronics manufacturing, industrial electronics assemblies, and other wire-to-board interfaces requiring compact, durable connectors.

The connector supports 3A current rating for reliable power delivery. Right-angle design allows space-saving PCB implementation in automotive and industrial devices. Shrouded housing protects contacts from damage and contamination during assembly and operation.

The preset retainer ensures complete contact insertion for secure engagement. Suitable for electronics manufacturing, assembly automation, and automotive wiring harness applications. Explore the wide range of compatible MX34 series automotive connectors and related PCB Headers in the EnvMart catalogue to support your industrial electronics projects.
