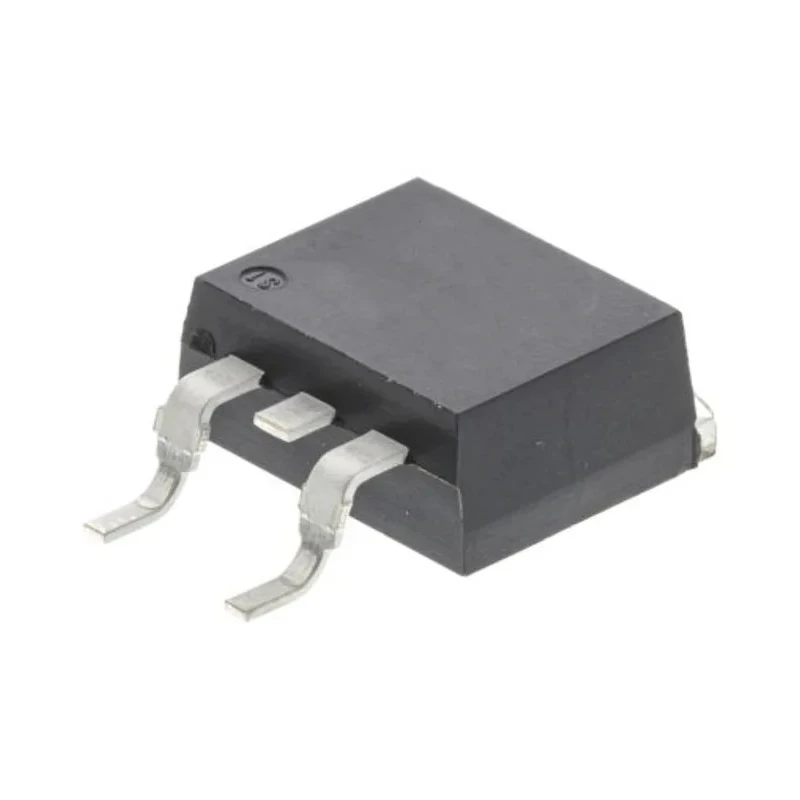

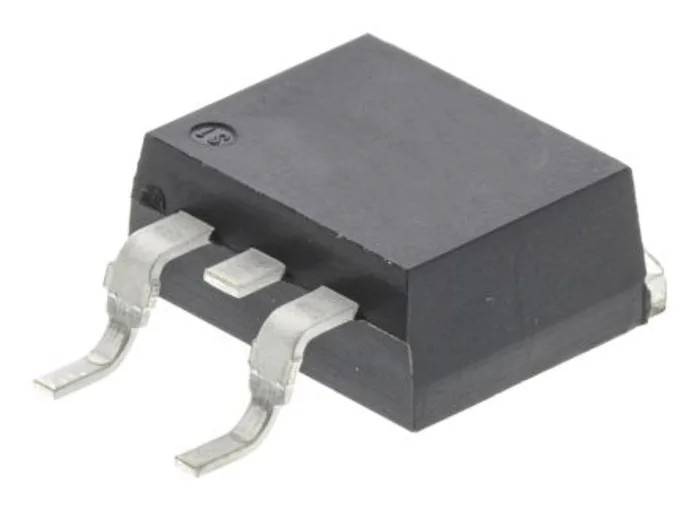

STMicroelectronics Thyristor SCR 1 kV Repetitive Peak Reverse Voltage, 16 A Rated Average On-State Current TN1625-1000G-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | TN1625-1000G-TR |
| Mount Type | Surface |
| Series | 16 A SCR |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 16A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 1kV |
| Surge Current Rating | 200A |
| Maximum Gate Trigger Current Igt | 25mA |
| Maximum Holding Current Ih | 40mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
Key Features
- Utilizes clip assembly technology for superior surge current performance.
- Surface mount TO-263 package ensures easy PCB integration.
- Maximum gate trigger current rated at 25 mA for efficient activation.
- Surge current rating of 200 A for high transient tolerance.
- Operating temperature range from -40°C to 125°C, suitable for demanding environments.
- Maximum holding current is 40 mA to maintain stable conduction.
- Pin count of 3 designed for standard SCR connection.
- No automotive standard or additional approvals applicable.
Product Description
The STMicroelectronics TN1625-1000G-TR is a high performance thyristor of the SCR type, featuring a repetitive peak reverse voltage of 1 kV and a rated average on-state current of 16 A. It is packaged in a TO-263 surface mount device, facilitating efficient mounting on printed circuit boards for compact electronics designs.
This thyristor series employs clip assembly technology, enabling superior performance with surge current capabilities rated at 200 A, making it highly robust for transient conditions in power electronics. The maximum gate trigger current is specified at 25 mA, which provides controlled device triggering with optimal power consumption.
The device supports operation within a broad temperature range from -40°C to 125°C, ensuring reliability under harsh industrial or automotive environmental conditions. The maximum holding current of 40 mA guarantees stable conduction once the device is triggered. Its 3-pin configuration is standard for SCR devices, simplifying integration into various control circuits.
No specific automotive standards or certifications apply to this model, focusing its usage on general-purpose power electronics applications such as motor control, power switching, and industrial automation.
Uses clip assembly technology for enhanced surge current performance. TO-263 surface mount package for PCB mounting convenience. Maximum repetitive peak reverse voltage of 1 kV. Rated average on-state current of 16 A ideal for medium power applications.
High surge current rating of 200 A for transient robustness. Operating temperature range from -40°C up to 125°C. Maximum gate trigger current of 25 mA for efficient control. Maximum holding current of 40 mA ensuring conduction stability.
This thyristor is well-suited for industrial power control, semiconductor discrete applications, and general switching tasks encountered in electronics and electrical engineering fields requiring reliable and precise SCR components.
Explore more semiconductor components and Thyristors at EnvMart for your industrial and electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum repetitive peak reverse voltage of the TN1625-1000G-TR thyristor is 1 kV.
This model has a rated average on-state current of 16 A, making it suitable for medium power applications.
The surge current rating for this thyristor is 200 A, providing high transient tolerance.
The maximum gate trigger current for the TN1625-1000G-TR is rated at 25 mA.
It operates within a temperature range of -40°C to 125°C, making it suitable for demanding environments.
This thyristor features a 3-pin configuration, which is standard for SCR devices.
The TN1625-1000G-TR is packaged in a TO-263 surface mount package, facilitating easy PCB integration.
The maximum holding current is 40 mA, ensuring stable conduction once the device is triggered.
It utilizes clip assembly technology, which enhances its surge current performance.
This thyristor is well-suited for industrial power control, power switching, and general-purpose electronics applications.
The maximum gate trigger voltage for the TN1625-1000G-TR is 1.3 V.
The country of origin for the TN1625-1000G-TR is India.
