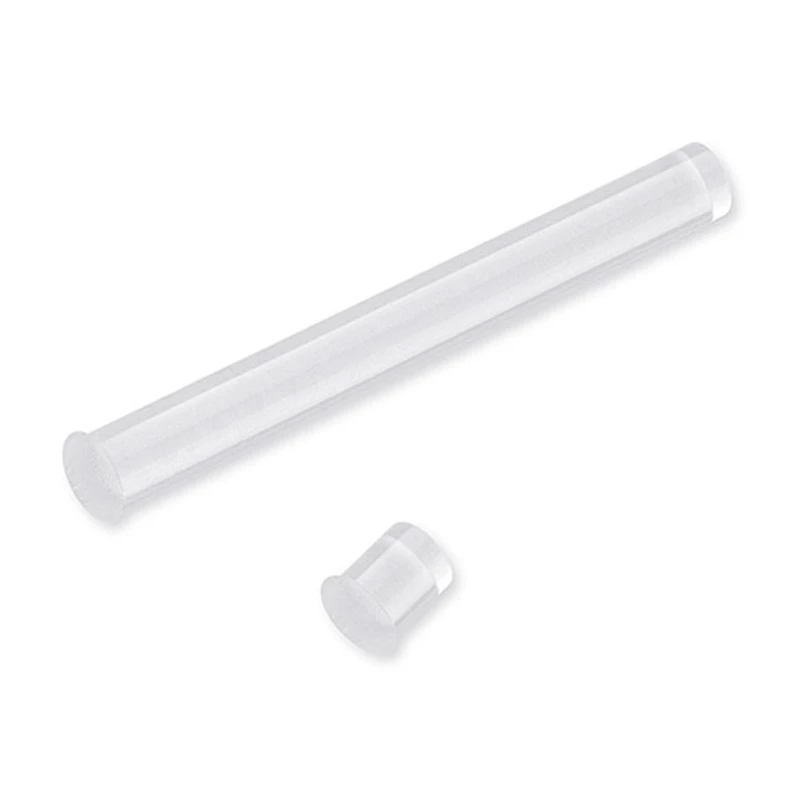

VCC Panel Mount 1-Way Straight Rigid LED Light Pipe Clear 3 mm LED Included LFB050CTP

VCC LFB050CTP Panel Mount 1-Way Straight Rigid LED Light Pipe is a high-quality optical component designed for efficient light transmission in electronic and lighting applications. Equipped with a clear 3 mm LED, this light pipe features a rigid, straight design with a length of 12.7 mm and a round light pipe shape, enabling precise light routing from PCB-mounted LEDs to front panel displays.

The light pipe’s panel mount configuration includes crushable ribs which allow for easy and secure press-fit installation, maintaining a low-profile flush design suitable for demanding industrial and commercial environments. Constructed from optical grade polycarbonate, it ensures maximum light transmission and durability, coupled with a frosted surface that diffuses light uniformly across a wide viewing angle of 120°. This results in consistent brightness and improved visibility.

This product supports both surface-mount and through-hole 3 mm LEDs, making it versatile for a range of applications including electronic equipment displays, control panels, instrumentation, and lighting assemblies. The inside diameter measures 2.6 mm, while the outside diameter is 3 mm, matching standard LED sizes for easy integration.

The LFB series light pipes are RoHS compliant, confirming adherence to environmental regulations and safe use in various industries. The single-path 1-way configuration provides focused light guidance, ideal for single indicator or status LED displays on panels.

In high-vibration environments, an optional retainer (RTN112) is available to enhance mounting security, though it is not included with this part. This leads to dependable performance in industrial, laboratory, commercial, and manufacturing settings.

Rigid construction ensures durability and stable performance. Panel mount design with crushable ribs for easy installation. 12.7 mm length suitable for various PCB to panel distances. Optical grade polycarbonate material provides maximum light transmission.

Wide viewing angle of 120° with a frosted surface for diffused light. Compatible with surface mount and through-hole 3 mm LEDs. Round light pipe shape with 2.6 mm inside diameter and 3 mm outside diameter. RoHS compliant, ensuring environmental safety.

Single 1-way configuration suitable for focused light routing. Explore more LED Light Pipes and related components in the Electronics & Electricals category on EnvMart for comprehensive lighting solutions.
