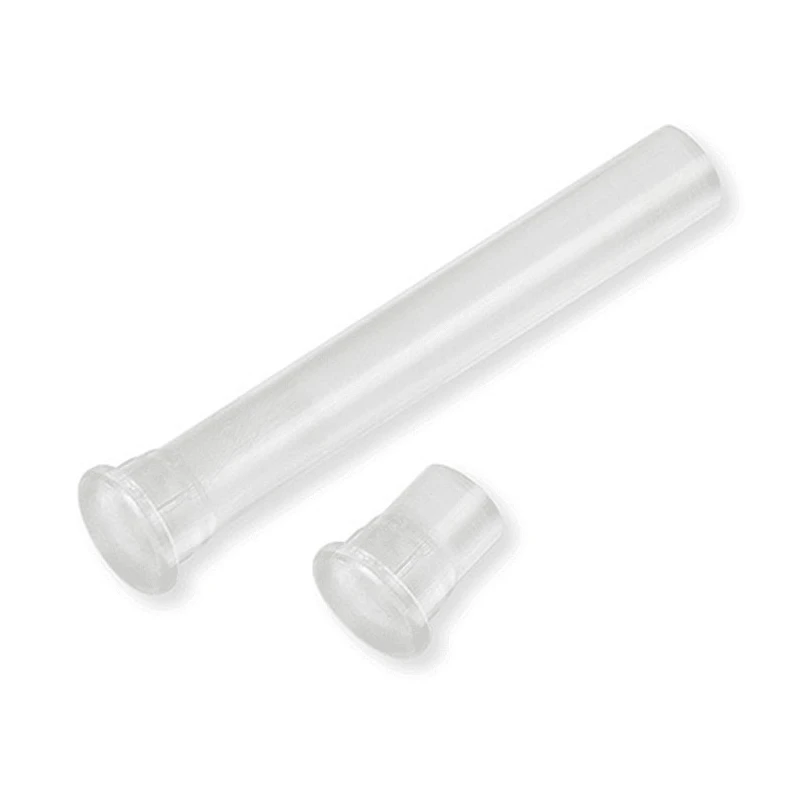

VCC Panel Mount 1-Way Straight Rigid LED Light Pipe Clear 5mm with LED Included LFC037CTP

VCC LFC037CTP is a Panel Mount 1-Way Straight Rigid LED Light Pipe designed for reliable and efficient light transmission in electronic displays and lighting applications. Constructed from optical grade polycarbonate, this rigid light pipe ensures maximum light transmission with a diffused round surface that provides uniform brightness and a wide 120° viewing angle.

The light pipe features a length of 9.5mm and a 5 mm lens size, making it ideal for front panel press-fit mounting with crushable ribs that facilitate easy installation. Its round shape includes an inside diameter of 3.86mm and an outside diameter of 5mm, optimized for use with 5 mm LEDs which are included with the pipe. This component supports SMT or through-hole LED configurations.

The LFC037CTP is part of the LFC Series of light pipes mainly used in electronic component assemblies where reliable illumination and panel integration are critical. It is RoHS compliant, ensuring it meets environmental and safety regulations.

Typical industrial applications include electronic display panels, LED lighting components, and optoelectronic devices within manufacturing, laboratory instruments, and commercial electronic systems.

Rigid structure with 9.5mm length providing precision light transmission. Panel mount with crushable ribs for simplified installation and secure fit. Round shape with 3.86mm inside diameter and 5mm outer diameter. Includes clear 5 mm LED for consistent illumination output.

Wide viewing angle of 120° due to diffused surface design. Complies with RoHS directive for environmental safety. Single light pipe design with 1-way configuration. Compatible with SMT and through-hole LEDs. Press-fit design enables front panel mounting with flush, low profile.
