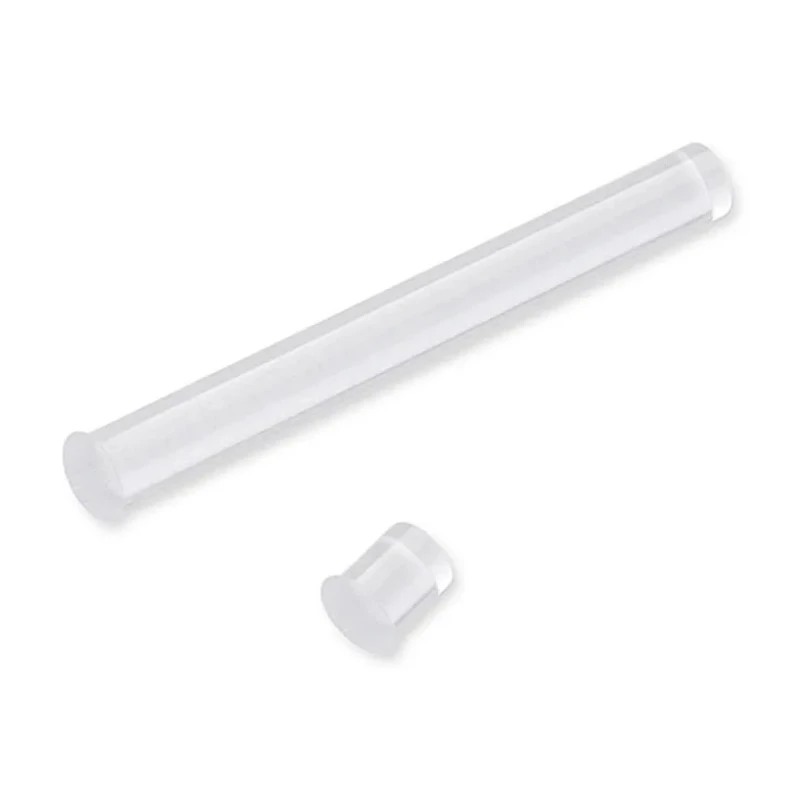

VCC Panel Mount 1-Way Straight Rigid LED Light Pipe Clear 3 mm LED Included LFB063CTP

Free Delivery in India | Lowest Global Shipping Charges

VCC Panel Mount 1-Way Straight Rigid LED Light Pipe Clear 3 mm LED Included LFB063CTP



Category LED Light Pipe Brand VCC Condition New

Specifications

Country of Origin	India
Brand	VCC
Orientation	Straight
Length	15.9mm
Model	LFB063CTP
Number Of Ways	1
Mount Type	Panel Mount
Series	LFB
Outside diameter	3mm
Inside Diameter	2.6mm
Standards/Approvals	RoHS
Flexible/Rigid	Rigid
Lens Size	3 mm
Light Pipe Shape	Round
Number of Light Pipes	1
Configuration Rows x Columns	1 x 1

Key Features

Rigid light pipe with a straight orientation for direct light guidance.
Panel mount design with low profile and press-fit installation for ease of use.
Optical grade polycarbonate construction ensures maximum light transmission.
Diffused round surface provides uniform brightness with a 120° viewing angle.
Includes a clear 3 mm LED for compatibility and brightness.
Inside diameter of 2.6 mm and outside diameter of 3 mm for precise fit.
Measuring 15.9 mm in length to accommodate PCB to panel distances.
RoHS compliant ensuring environmental safety and quality.

Product Description

The VCC LFB063CTP is a panel mount 1-way straight rigid LED light pipe designed to deliver high-quality illumination in electronic assemblies. Featuring a 3 mm clear lens and an included LED, this component serves to channel light efficiently from LEDs to the visible panel surface while maintaining a low profile design.

Manufactured from optical grade polycarbonate, the rigid light pipe ensures maximum light transmission through its diffused round surface, providing uniform brightness and a wide 120° viewing angle. Its press-fit panel mount with crushable ribs enables easy installation and secure positioning in front panel applications.

With a length of 15.9 mm, an inside diameter of 2.6 mm, and an outside diameter of 3 mm, the light pipe is engineered to fit standard 3 mm LEDs, making it compatible with both SMT and through-hole types. The product adheres to RoHS standards, reflecting compliance with environmental and safety regulations.

An optional retainer (model RTN112) enhances mounting stability in high vibration environments, making the light pipe suitable for industrial, electronic instrumentation, and control panel applications.

Rigid light pipe with straight orientation for reliable light direction. Panel mount press-fit low-profile design for flush installation. Optical grade polycarbonate provides clear light transmission. Diffused round surface ensures uniform brightness and wide viewing angle.

Clear 3 mm LED included for immediate use and efficient illumination. Measures 15.9 mm length with precise diameters for fitting standard LEDs. RoHS compliant, ensuring environmental and quality standards. Suitable for SMT and through-hole LED types.

Optional retainer available for high vibration mounting stability.

This LED Light Pipe is ideal for use in electronic components, power connectors, display panels, and control instrumentation where efficient and uniform light transmission is required. Explore the complete range of LED lighting components at EnvMart to fulfill your industrial and commercial lighting needs.
